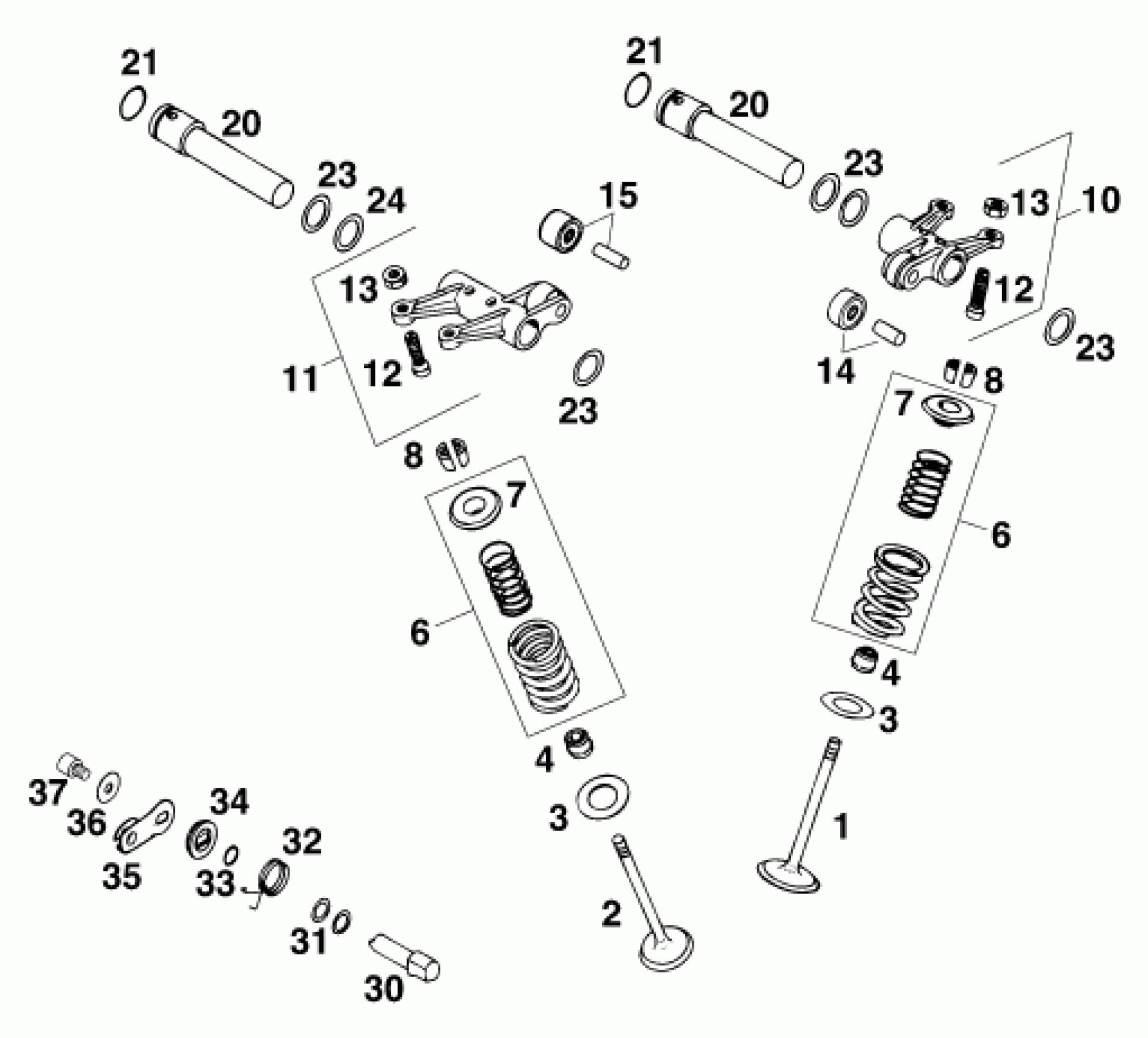

KTM 620 SUP-COMP WP <1997> VALVE DRIVE Diagram

#

Description
Price

1

INTAKE VALVE D=36 MM

58036030000

$54.67

2

EXHAUST VALVE 30 MM

58036031000

$86.10

3

STOP DISK 12,2x29,5x1

58036027000

$2.24

4

VALVE-STEAM SEALING

58036028000

$9.62

5

STOP DISK 12,2x29,5x0,5

58036027100

Unavailable

6

PROGR.VALVE SPRING KIT'95

58336029044

Unavailable

7

VALVE-SPRING RETAINER ALU '95

58036032700

$8.44

8

VALVE COLLET MK7

58036033000

$4.11

10

ROCKER ARM INTAKE CPL.

58036060644

$161.71

11

ROCKER ARM EXHAUST CPL.

58336061044

$161.80

12

ADJUSTMENT SCREW CPL. M 7X0,75

58036062600

$24.86

13

HEXAGON NUT DIN0934-M 7X0,75

0934070756

$4.11

14

ROCKER ARM ROLLER CPL. INTAKE

58036061090

$43.75

15

ROCKER ARM ROLLER CPL. EXHAUST

58336061090

$48.33

20

ROCKER ARM SHAFT L=96MM

58036056100

$74.48

21

O-RING 15,08 X 2,62 NBR 70

58036095000

$1.49

23

THRUST WASHER DIN0988-16X22X1

0988162210

Unavailable

24

THRUST WASH. DIN0988-16X22X0,5

0988162205

Unavailable

30

DECOMPRESSION SHAFT

58036050100

$29.81

31

WASHER 10X14X0,5 STEEL

54334015000

Unavailable

31

WASHER 10X14X0,3 STEEL

54334015100

Unavailable

31

WASHER 10X14X0,15 STEEL

54334015200

Unavailable

32

DECOMP.LEVER SPRING

58036059200

$7.96

33

O-RING 10,00X2,20 SILICONE

0770100221

$2.05

34

COVER DISK

58036048000

$2.15

35

DECOMPRESSION LEVER

58036049500

$4.06

36

Washer DIN9021-A 6.4

0021060003

$2.05

37

AH SCREW DIN0912-M 6X10

0912060103

$1.49
