Description

Price

3

CLUTCHSPRING 3,0X33,5

58532080000

$8.87

4

WASHER 6,2X22X1,ST30,W.GALV.

51006097000

$1.49

8

TENSIONER GASKET 1,5 MM

58036005100

$3.08

10

INTERMEDIATE FLANGE 4MM ALU

58536019000

Unavailable

15

% CARBURETOR DELLORTO PHM 41 S

58531001044

Unavailable

20

NEEDLE BEARING K22X26X13H

56533098000

$11.96

21

NEEDLE BEAR. K22X26X13 DIVIDED

58533021000

Unavailable

30

ROCKER ARM SHAFT RALLYE

58536056000

Unavailable

32

PLUG M 22 X 1,5 RALLYE

58538019000

Unavailable

34

CU-WASHER 22,3 X 26,8 X 2

58538021000

Unavailable

35

TIMING GEAR 660 LC4

58536011000

Unavailable

35

TIMING GEAR 640 LC4

58536011100

Unavailable

36

CHAIN TENSIONER RALLYE '

58536002000

Unavailable

37

SPRING 0,9 X 54

58536006000

Unavailable

38

OIL LINE FRAME/MICROFILTER

58538034000

Unavailable

39

AIR FILTER BOOT 540/620/640

58006026500

$14.95

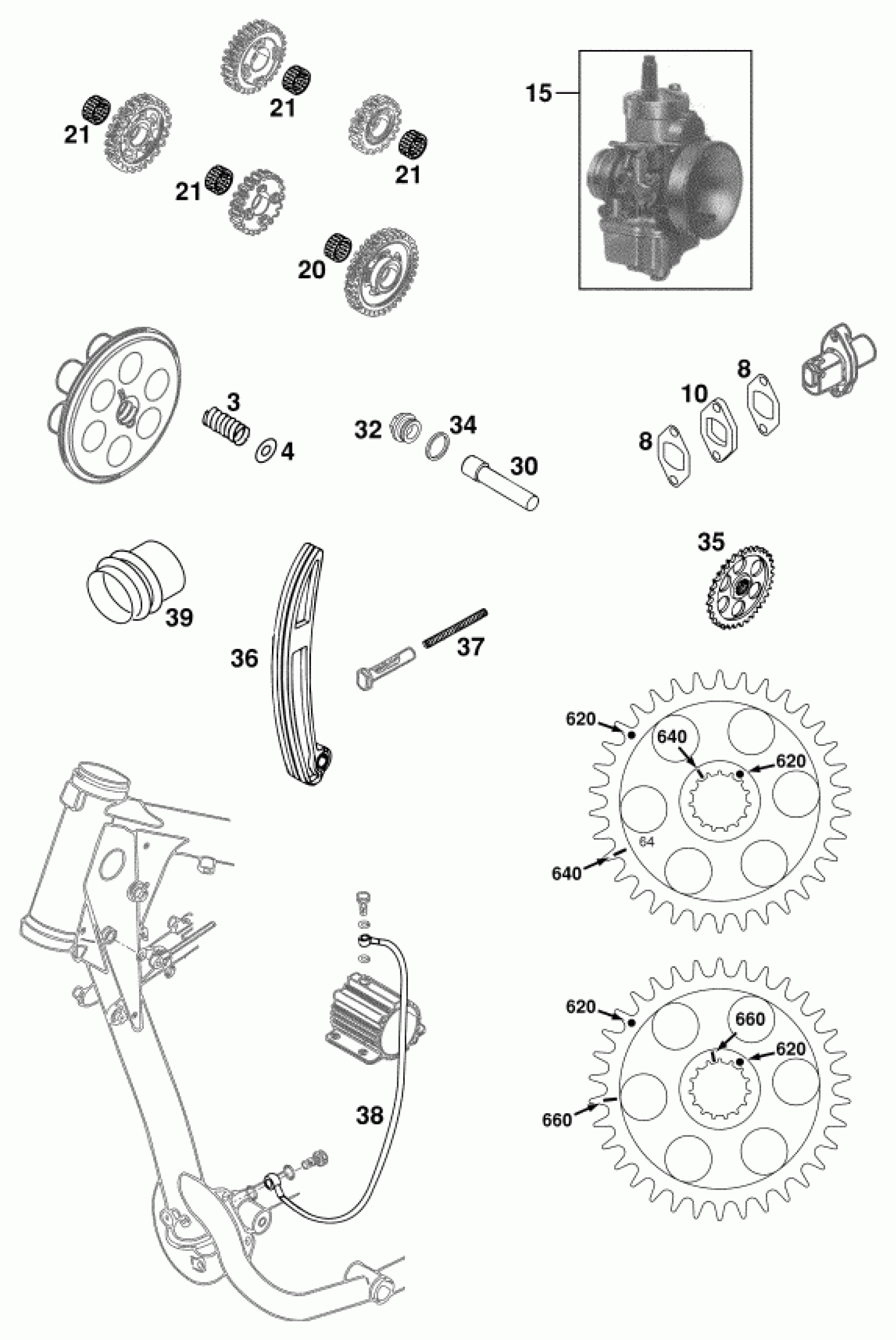

KTM 620 SUP-COMP WP <1997 Other Diagram

CLUTCHSPRING 3,0X33,5

WASHER 6,2X22X1,ST30,W.GALV.

TENSIONER GASKET 1,5 MM

INTERMEDIATE FLANGE 4MM ALU

% CARBURETOR DELLORTO PHM 41 S

NEEDLE BEARING K22X26X13H

NEEDLE BEAR. K22X26X13 DIVIDED

ROCKER ARM SHAFT RALLYE

PLUG M 22 X 1,5 RALLYE

CU-WASHER 22,3 X 26,8 X 2

TIMING GEAR 660 LC4

TIMING GEAR 640 LC4

CHAIN TENSIONER RALLYE '

SPRING 0,9 X 54

OIL LINE FRAME/MICROFILTER

AIR FILTER BOOT 540/620/640
