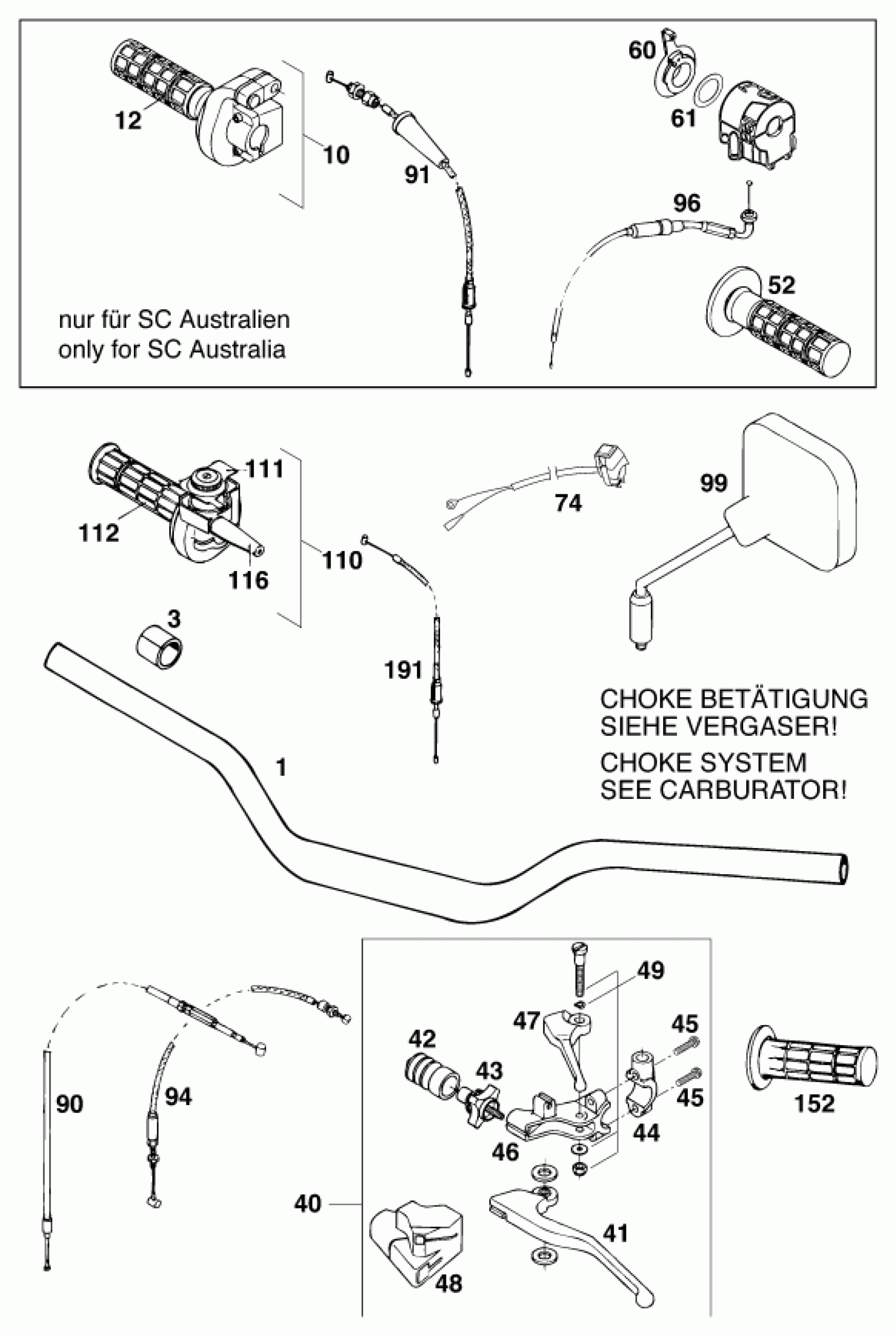

KTM 620 SUP-COMP WP <1997 HANDLEBAR, CONTROLS Diagram

Rear view mirror right

58012140000

Unavailable

ALU-HANDLEBAR SX,SC,ADVENT.'97

58302001300

Unavailable

SPACER BUSHING 22X28X22PVC

50202010000

Unavailable

THROTTLE GRIP CPL.DOMINO '93

58302010000

$89.51

TWIST GRIP COVER DOMINO

58302003000

$27.76

CLUTCH LEVER ASSY CPL.DOMINO

58302040100

$82.83

CLUTCH LEVER LOOSE

58302055000

Unavailable

CLUTCH LEVER BOOT '95

58302126000

$5.23

ADJUSTMENT SCREW CPL.M7

58302043000

$22.06

CLAMP MIRROW M10x1,25

58302044000

$13.36

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

JOINT DOMINO

58302023000

$49.55

DECOMPRESSION LEVER LOOSE

58302047000

$12.05

PROTECTING COVER

58302048000

$8.01

LEVER SCREW CPL.

58302049000

$7.00

FIXED GRIP DOMINO '93

58302052000

$27.76

CHOKE LEVER DOMINO '94

58302050100

$10.46

thrust wash DIN0988-25x35x0,5

0988253505

$4.11

SHORT CISCUIT BUTTON '

50311089000

Unavailable

CLUTCH CABLE 125/LC4 TSK '

50202090200

Unavailable

THROTTLE CABLE DOMINODELLORTO

58302091000

$21.24

DECOMPRESSION CABLE LC4 '93

58302094000

$29.35

CHOKE CABLE LC4 '94

58302095100

$32.62

Rear view mirror left

58012040000

$36.18

THROTTLE GRIP CPL.MAG.312 BL

58002010000

Unavailable

* COVER WITH KNURLED SCREW

58002011000

Unavailable

TWIST GRIP COVER LONG BLACK

56502003000

$12.04

PROTECTION CAP

54002016000

$10.65

FIXED GRIP MAGURA LONG BLACK

56502052000

$16.72

THROTTLE CABLE MAGURA/DELLORTO

58002091100

$21.49
