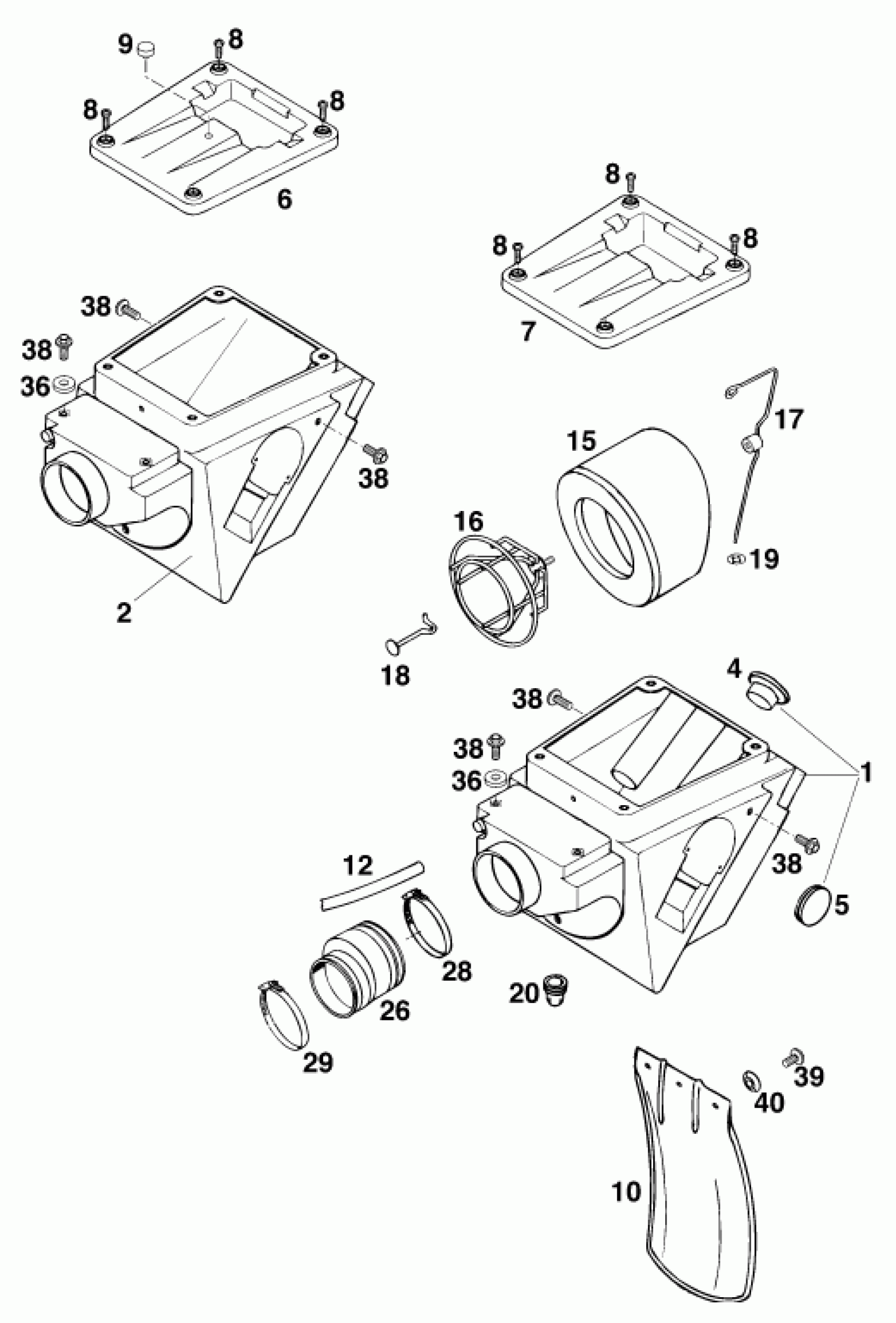

KTM 620 SUP-COMP WP <1997> AIR FILTER Diagram

#

Description
Price

1

FILTER BOX CPL. WITHOUT SLS'94

58306001100

Unavailable

2

FILTER BOX CPL. WITHOUT SLS'94

58306001200

Unavailable

4

PLUG 30 MMM

58306004000

Unavailable

5

PLUG 37MM

54606004000

$2.05

6

FILTER BOX COVER OPEN

58306002000

$28.88

7

FILTER BOX COVER CLOSED

58306102000

$20.16

8

OVAL HEAD SCR. DIN7985-M 5X10

0985050103

$1.49

9

RUBBER BUFFER

54308042000

$3.08

10

SPLASH PROTECT.FOR FILTER BOX

54606010000

$18.25

12

HOSE 10X14 PER METER

57005020001

Unavailable

15

AIRFILTER

56506015100

$28.13

16

FILTER CARRIER '97

58306016100

$28.25

17

HOLDING HANGER FOR FILTER '97

58306017100

$16.59

18

HOOK FOR FILTER BRACKET

58306017050

$11.28

19

CLAMPING DISK KS4

54606019004

$2.05

20

RUBBER GRIMMET SLOTTED

50206020000

$5.23

26

CARBURETOR CONNECTION BOOT '98

58306026000

$26.74

28

HOSE CLAMP 60-80MM

55006028000

$4.11

29

HOSE CLAMP 50-70MM

51006027000

$6.07

36

STEEL WASHER 6,4X17X3

50232050001

Unavailable

38

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

39

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

40

BUCKET

72210079000

$3.00
