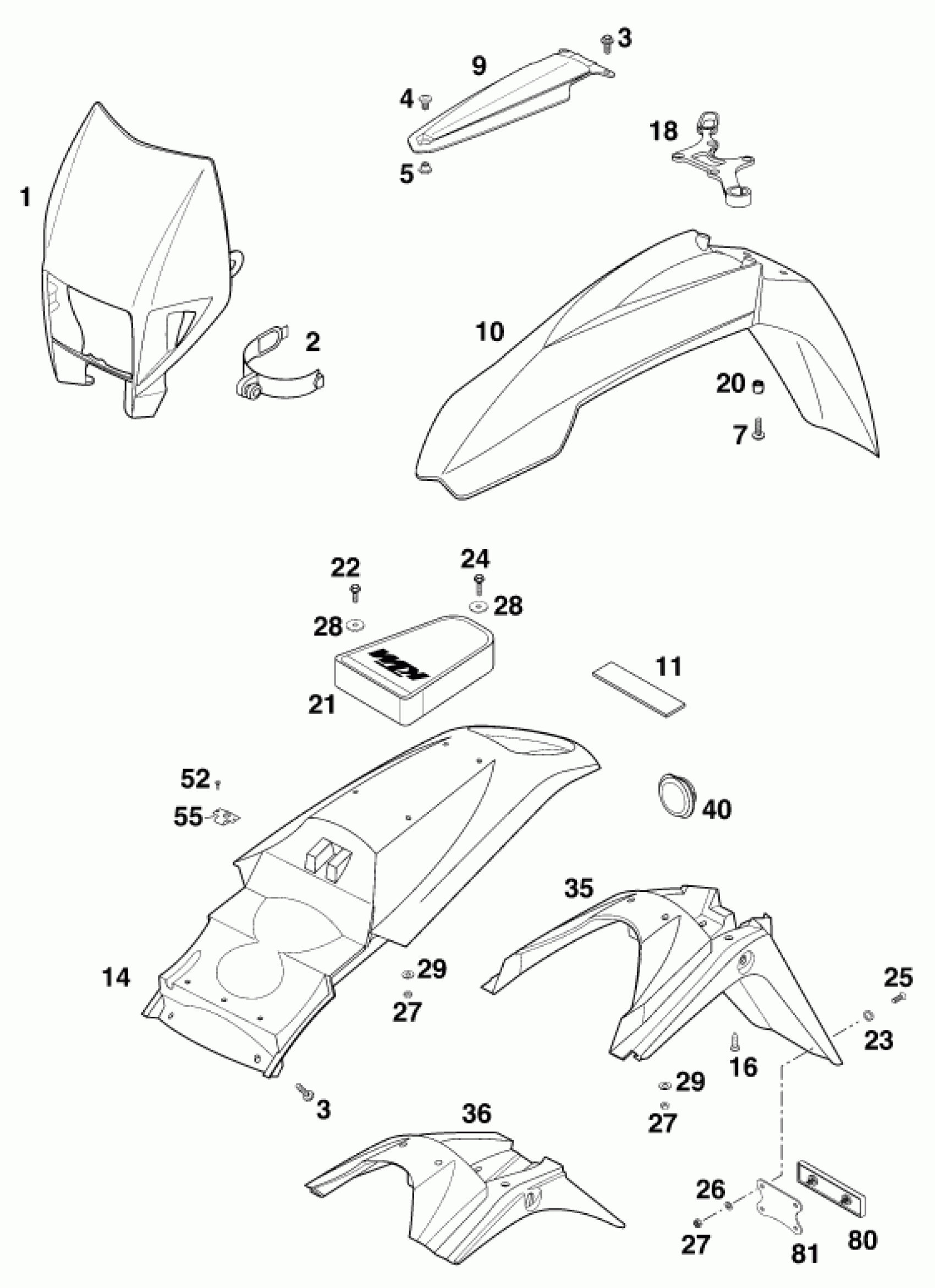

KTM 620 SUP-COMP 20kW <1999> MASK, FENDERS Diagram

#

Description
Price

1

HEADLIGHT MASK EXC/EGS'99

5030800100004

$29.35

2

MASK RUBBER UFO D=50MM '97

50308002000

$3.64

3

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

4

SCREW FEND.BRACE M8X9 WS=17

50308009050

$5.23

5

NUT FENDER BRACE M8 WS=17

50308009051

$5.23

7

HH COLLAR SCREW M 6X20 WS=8

0014060203

$2.05

9

FENDER BRACE BLACK '99

50308009100

$9.46

10

FENDER FRONT ORANGE '99

5030801010004

$29.63

11

RUBBER STRIP 85X25X3 MM

54601097000

$1.49

14

FENDER REAR SILVER LC4 '99

5840801410090

$25.45

16

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

18

SPEEDO.CABLE GUIDE 125-380 '98

50308019000

$3.39

20

SPACER BUSHING 7X10X7,5

50208020000

$4.11

21

TOOL BAG BLACK SC '99

58312078000

$16.14

22

HH COLLAR SCREW M 5X16 WS=8

0015050163

$2.05

23

WASHER 6MM

40006006000

$1.49

24

HH COLLAR SCREW M 5X20 WS=8

0015050203

$2.05

25

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

$1.49

26

WASHER DIN0125-A 5,3

0125050003

$1.49

27

Self locking nut DIN 985 M5

0985050003

$2.05

28

WASHER 6,2X22X1,ST30,W.GALV.

51006097000

$1.49

29

washer DIN 9021 A - 5.3

0021050003

$1.49

35

NUMB.PLATE CARRIER BLACK LC4

58408015000

$35.76

36

NUMB.PLATE CARRIER BLACK SC'99

58308015100

Unavailable

40

RUBBER FOR FENDER REAR

58414040050

$8.71

52

PLASTIC SCREW KBL 35X18 WN14

0016035181

Unavailable

55

THRUST BEARING QUICK RELEASE

58307042051

$4.52

80

REFLECTOR RED

58412080000

$5.23

81

BRACKET FOR REFLECTOR

58412080050

$6.07
