Partiron

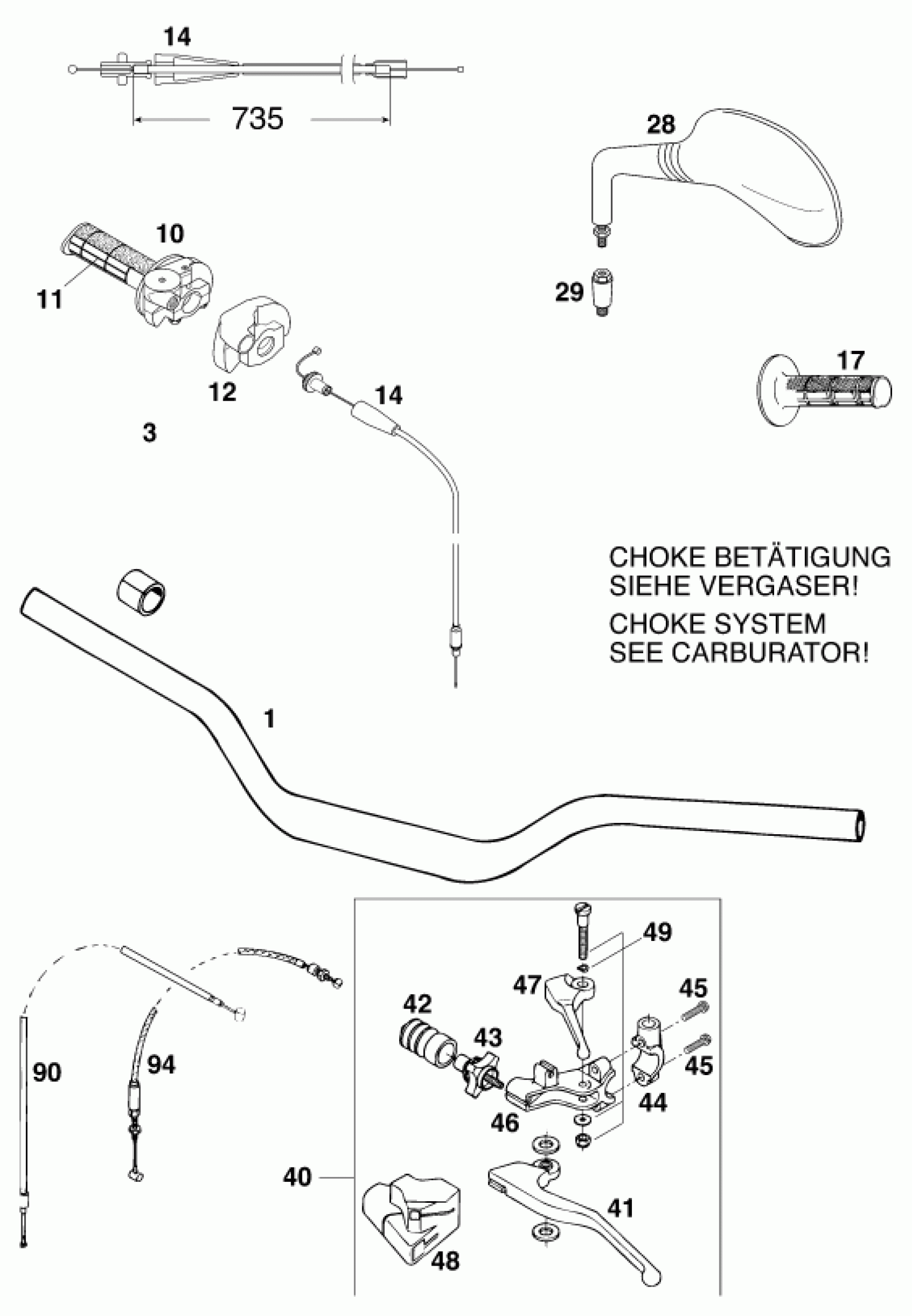

KTM 620 SUP-COMP 20kW <1999> HANDLEBAR, CONTROLS Diagram

#

Description
Price

0

MIRROR R/S 98

58412041000

$36.92

1

ALU-HANDLEBAR SX,SC,ADVENT.'97

58302001300

Unavailable

3

SPACER BUSHING 22X28X22PVC

50202010000

Unavailable

10

THROTTLE GRIP DOMINO SXC'98

58302010300

$86.29

11

TWIST GRIP COVER DOMINO BLACK

50202003000

$26.17

12

PROTECTION COVER '97

50302020000

$19.16

14

THROT.CABLE DOMINO 735MM SC'99

59002091000

Unavailable

17

FfIXED GRIP DOMINO BLACK '95

50202052000

$26.17

28

MIRROR L/S 98

58412040000

$36.92

29

SUPPORT FOR MIRROR LC4 '98

58412040050

$20.19

40

CLUTCH LEVER ASSY CPL.DOMINO

58302040100

$82.83

41

CLUTCH LEVER LOOSE SILVER '97

58402042000

$40.10

42

CLUTCH LEVER BOOT '95

58302126000

$5.23

43

ADJUSTMENT SCREW CPL.M7

58302043000

$22.06

44

CLAMP MIRROW M10x1,25

58302044000

$13.36

45

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

46

JOINT DOMINO

58302023000

$49.55

47

DECOMPRESSION LEVER LOOSE

58302047000

$12.05

48

PROTECTING COVER

58302048000

$8.01

49

LEVER SCREW CPL.

58302049000

$7.00

90

CLUTCH CABLE 4T L=1115MM '99

58402090000

$42.63

94

DECOMPR. CABLE L=693,5 LC4 '99

58302094200

$32.84
