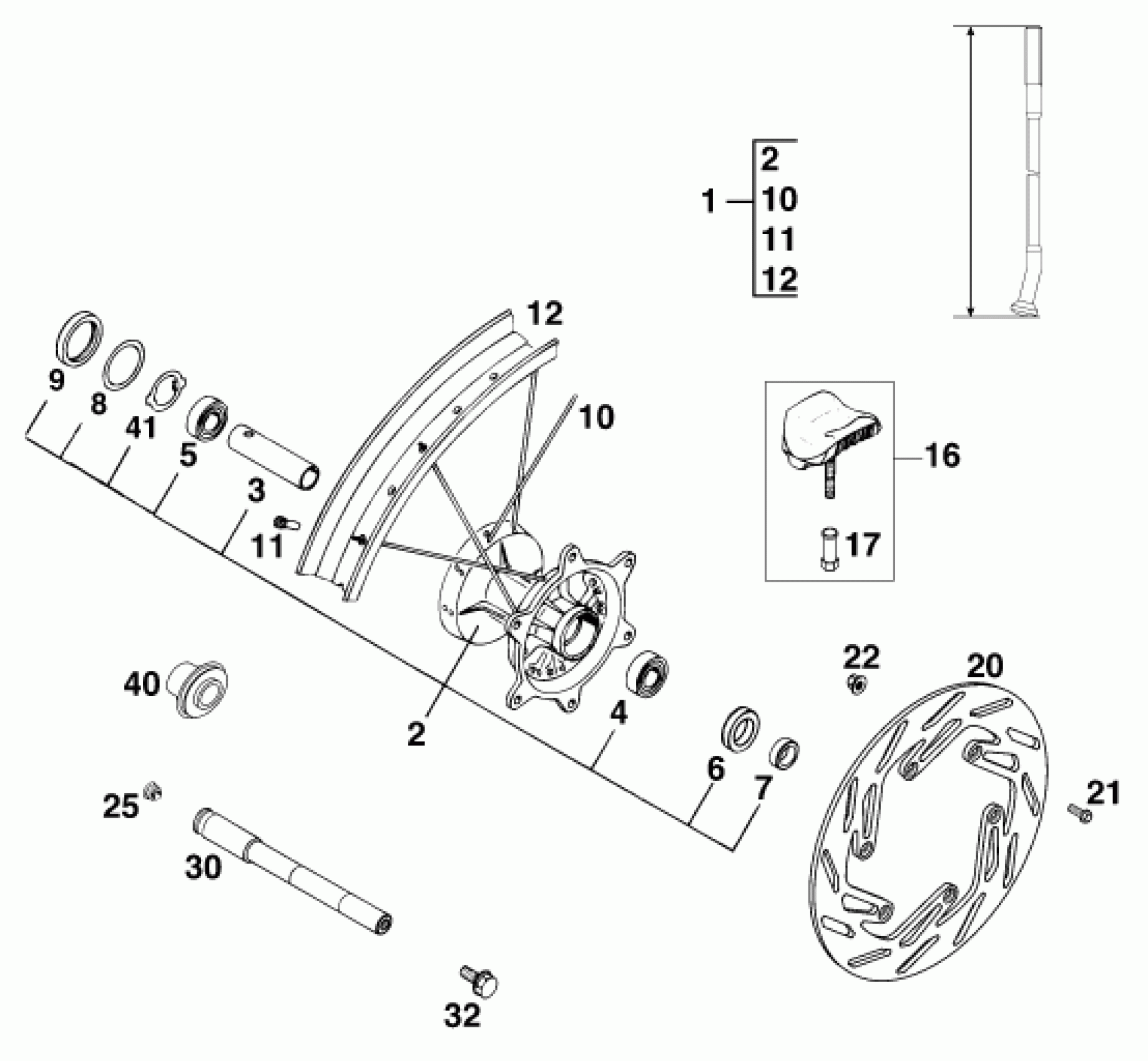

KTM 620 SUP-COMP 20kW <1999> FRONT WHEEL Diagram

#

Description
Price

1

FRONT WHEEL 1,6x21'' DID '9

5800900114490

$390.62

2

FRONT HUB CPL. SILVER GS'93

5460901004490

$191.02

3

BEAR.SPACER TUBE 17,5X22X64,5

54609011000

$9.12

4

GR.BALL BEAR. 6003-2RSH/C3HMTF

0625060037

$30.19

5

GR.BALL BEAR. 6203-2RSHC3HMTF

0625062032

$17.94

6

SHAFT SEAL RING 25X35X7 BTSL

0760253570

$16.79

7

SPACER RING 17X25X7,5

54609051000

Unavailable

8

WASHER 40 X 52 X 0,15 '92

58111054000

$1.57

9

SHAFT SEAL RING 40X52X7 B

0760405270

$11.68

10

SPOKE M5X234-15G 21'' DDE

58309071234

$4.35

11

SPOKE NIPPLE M5-TA (8X21MM)

58309072000

$2.05

12

FRONT RIM 1,6X21'' DID

54609070200

$205.60

16

RIM LOCK VM1 (1,60'')

51009100100

$17.57

17

NUT FOR WHEEL HOLDER '96

50310090050

$5.23

20

FRONT BRAKE DISK D=260MM

56509060700

$223.83

21

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

22

SELF LOCKING NUT M6

56509064000

Unavailable

25

PLUG SFL13

55009086000

$2.05

30

WHEEL SPINDLE FRT L=226MM'95

58009181600

Unavailable

32

HH COLLAR SCREW M10X20 WS=17

49032011000

$5.88

40

SPACER BUSHING FOR FRONT WHEEL

50309019000

$16.48

41

DRIVING DOG F.SPEEDOM.DRIVE'92

58111053100

$6.00
