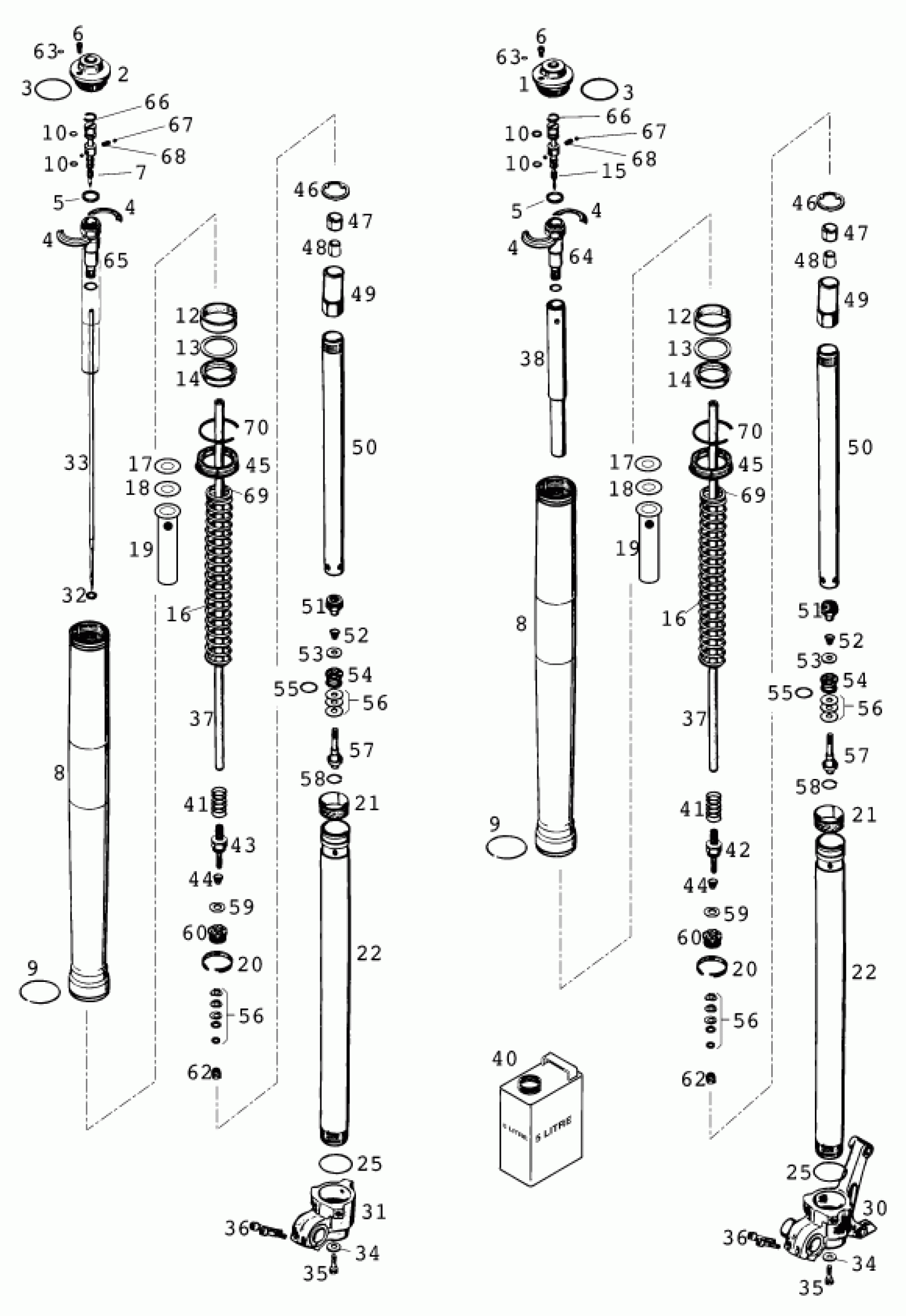

KTM 620 SUP-COMP 20kW <1999> FRONT FORK DISASSEMBLED Diagram

#

Description
Price

1

SCREW CAP M49X1,5 COMP

40541269

Unavailable

2

SCREW CAP M49X1,5 REBOUND

40541273

Unavailable

3

O-ring 43x3 NBR70

40540026

$2.35

4

SPRINGRETAINER D=47MM

40540470

$5.74

5

Seal ring 14,1x22x4 90Sh

40540492

$5.37

6

AIR ADJUSTING SCREW

40541270

$2.10

7

TAP ADJ. REBOUND

40541246

$15.44

8

OUTER TUBE L=577MM D=54/57MM

43570091

Unavailable

9

Round-wire snap ring 53x2

43570099

$26.45

10

O-RING NBR 4X2

40541257

$1.49

12

DU-BUSH 47 X 43 X 20

43570019

$77.97

13

Supportwasher 45x52,5x1,5

43570092

$20.09

14

OIL SEAL RING 43X52,5X7

43570009

$31.35

15

TAP ADJ. COMPRESSION

50600083

$21.02

16

% SPRING 3,8 N/MM SET D=4,75MM

96010045S

Unavailable

16

SPRING 4,0 N/MM SET D=4,75MM

96010046S

Unavailable

16

SPRING 4,2 N/MM SET D=4,9MM

96010047S

Unavailable

16

SPRING 4,6 N/MM SET D=5,0MM

96010048S

Unavailable

16

SPRING 4,8 N/MM SET D=5,0MM

96010049S

Unavailable

16

SPRING 4,4 N/MM SET D=4,9MM

96010050S

Unavailable

17

PRELOAD SPACER L=2,5MM

40540359

$6.62

18

PRELOAD SPACER L=5MM

40540040

$5.89

19

SPRING GUIDE TA

43570121

Unavailable

20

PISTON RING 5 X 1 X 62

40540851

$12.72

21

DU-BUSH 43,8 X 43 X 20

43570020

$11.40

22

INNER TUBE D=43MM L=600MM

43570089

Unavailable

25

O-ring 41x2 NBR70 siliconized

43570023

$13.55

30

AXLE CLAMP L/S USD43 260MM '99

43570087

Unavailable

31

AXLE CLAMP R/S USD43 M8 '99

43570086

Unavailable

32

O-RING NBR 3X1

40541267

Unavailable

33

REBOUND NEEDLE D=4MM L=542MM

40541374

Unavailable

34

Copperwasher 8x12x1,5

46810360

Unavailable

35

HH-COLLAR SCREW M8X20 WS=13

50600130

Unavailable

36

HH COLLAR SCREW M 8X30

50600061

$3.08

37

PISTON ROD M9X1 L=528MM

40541373

Unavailable

38

HYDR.STOP L222,5MM KPL. COMP.

40541376S

Unavailable

40

FORKOIL REZ 71 SAE 5

40540882

Unavailable

41

Spring (11,2/12,6) 60-26 rebou

40541346

$10.28

42

PISTON ROD TAP COMPRESSION

40541245

Unavailable

43

PISTON ROD TAP REBOUND

40541244

Unavailable

44

Spring (8,5) l6,5 valve

40541278

Unavailable

45

DUST STRIPPER D=43MM

43570094

$16.73

46

SPRINGRETAINER 22,1X35,6X2

40540629

$16.15

47

Rubber pad 13x19,3x7 90Sh

40540487

$3.08

48

Guide bushing 12x14x8

40540434

$8.01

49

SCREW SLEEVE M24X0,8X56

40541378

Unavailable

50

TUBE 24X1,5X385

40541236

Unavailable

51

CHECK VALVE NUT M6X0,5

40541241

$6.44

52

Spring (8,5) l6,5 valve

40541278

Unavailable

53

Shim 8x18x0,40

40540477

$2.05

54

PISTON COMPRESSION MA

40540445

Unavailable

55

O-ring 15,6x1,78 NBR

40540437

Unavailable

56

Shim 6x14x0,10

40540401

Unavailable

56

Shim 6x16x0,10

40540402

Unavailable

56

Shim 6x18x0,10

40540403

Unavailable

56

SHIM 6X12X0,15

40540404

Unavailable

56

Shim 6x14x0,20

40540409

Unavailable

56

Shim 6x18x0,20

40540411

Unavailable

56

Shim 6x9x0,30

40540449

Unavailable

56

Shim 6x18x0,10 delta

40540774

Unavailable

56

Shim 6X11X0,10

40541383

Unavailable

57

TAP COMPRESSION

40541242

Unavailable

58

CIRCLIP 21X1,6

40541256

$1.54

59

Shim 8x18x0,40

40540477

$2.05

60

PISTON REBOUND W5

40541085

Unavailable

62

Nut M6x0,5 h6,5 WAF10 rebound

40540486

$4.11

63

O-ring 3x2 NBR70

40540867

$1.49

64

HYDR.STOP L222,5MM KPL. COMP.

40541376S

Unavailable

65

HYDR. STOP L=222,5MM KLP. REB.

40541377S

Unavailable

66

LOCK WASHER SB11

40541259

Unavailable

67

Steel ball d4

40540296

$1.49

68

Spring (2,3) l5,2

40540472

$5.79

69

RING 28X38X1,5

43570122

Unavailable

70

LOCK WASHER D=59MM

43570093

Unavailable
