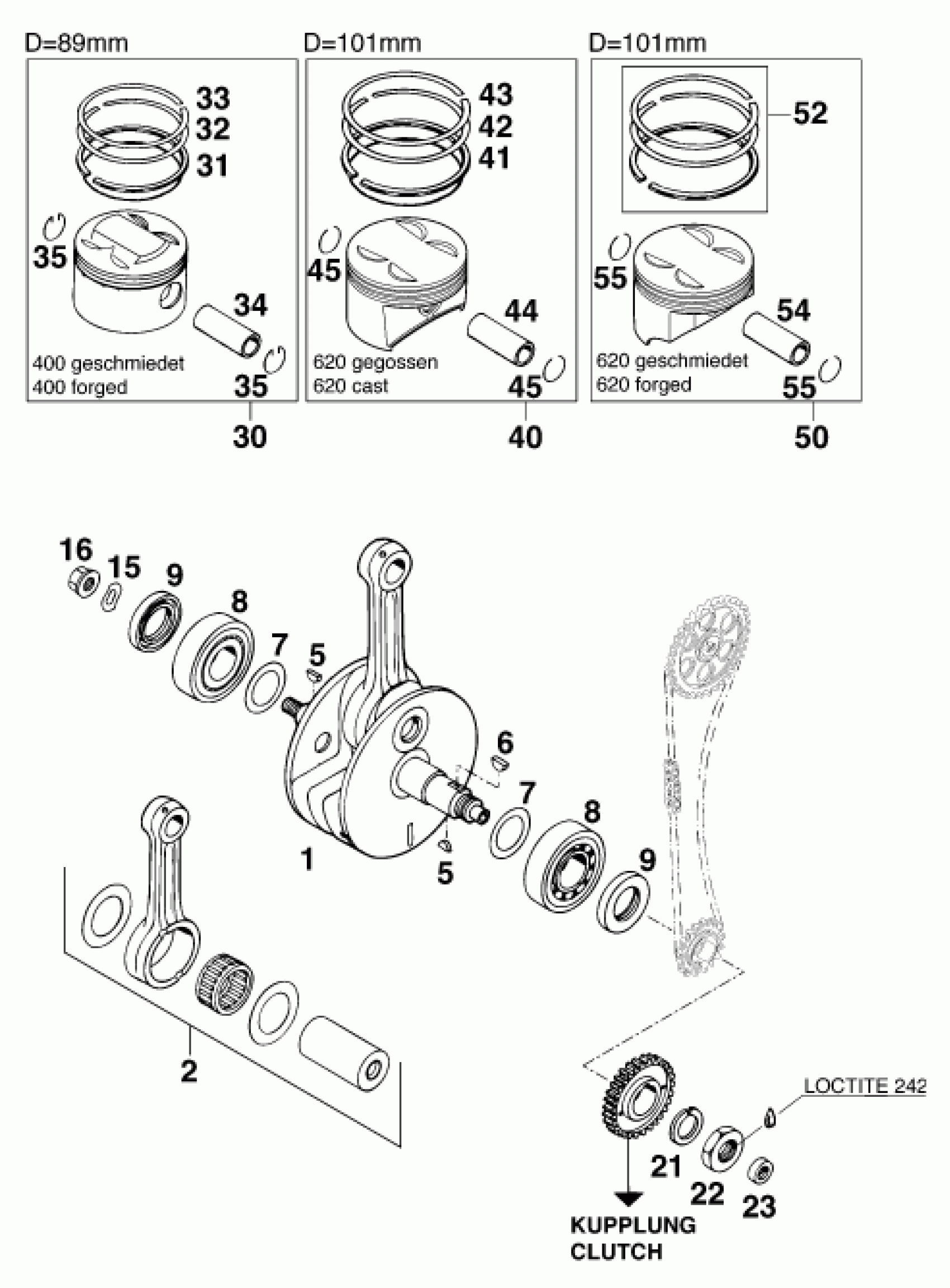

KTM 620 SUP-COMP <1998> CRANKSHAFT, PISTON Diagram

#

Description
Price

1

CRANKSHAFT CPL. 400 LC4 '97

57630018000

$528.37

1

CRANKSHAFT CPL. 540/620 LC4'

58330018000

Unavailable

2

CONNECTING ROD REPAIR SET LC4

58030015044

$415.87

2

CONNECTING ROD REPAIR SET LC

58330015044

$345.34

5

WOODRUFF KEY DIN6888-3X5X13

0888030050

$2.05

6

WOODRUFF KEY 5X6,5 HARDED

6946005

$2.05

7

THRUST WASHER 30,5X45X0,10

56030081000

Unavailable

7

THRUST WASHER 30,7X47X0,15

56030081100

Unavailable

7

THRUST WASHER 30,5X45X0,30

56030081200

Unavailable

8

CYL.ROLLER BEARING NJ 306 C3

58030082000

$115.28

9

SHAFT SEAL RING 30X47X7 BSL

0760304771

Unavailable

15

SPRING WASHER DIN0137-B12

0137120000

$1.49

16

COLLAR NUT M12X1 LEFT WS=17

51030028100

$11.40

21

LOCKING RING VSK 20

58030019000

$1.73

22

HEXAGON NUT DIN0936-M20X1,5

0936200155

$6.52

23

SHAFT SEAL RING 12 X 22 X 7 B

0760122270

$15.79

30

PISTON I 89 MM CPL. FORGED

57530007000 I

Unavailable

30

PISTON II 89MM CPL. FORGED

57530007000 II

Unavailable

31

OIL SCRAPER RING 89MM

57530031000

$19.35

32

TAPERED COMPR.PISTON RING 89MM

57530132000

$14.60

33

RECTANGULAR RING 89MM

57530032000

$45.99

34

PISTON PIN 22 X 13 X 54,2

58030033000

$46.19

35

CIRCLIP A 22 X 1,5

58030074000

Unavailable

40

58330007300 I

Unavailable

40

58330007300 II

Unavailable

41

OIL SCRAPER RING 101x2,5

58330031300

$34.31

42

TAP.COMPR.PISTON RING 101X1,25

58330932100

$26.45

43

RECTANGULAR RING 101x1,25

58330832000

$37.92

44

PISTON PIN 22 X 13 X 60

58330833000

$46.27

45

CIRCLIP C 22 X 1,5

58030074100

$1.78

50

PISTON 101 MM CPL. FORGED

58330007200

Unavailable

52

PISTONRING SET KPL.101MM ARIAS

58330031244

$39.75

54

PISTON PIN 22 X 13,5 X 63,5

58030833000

Unavailable

55

CIRCLIP C 22 X 1,2

58030874000

Unavailable
