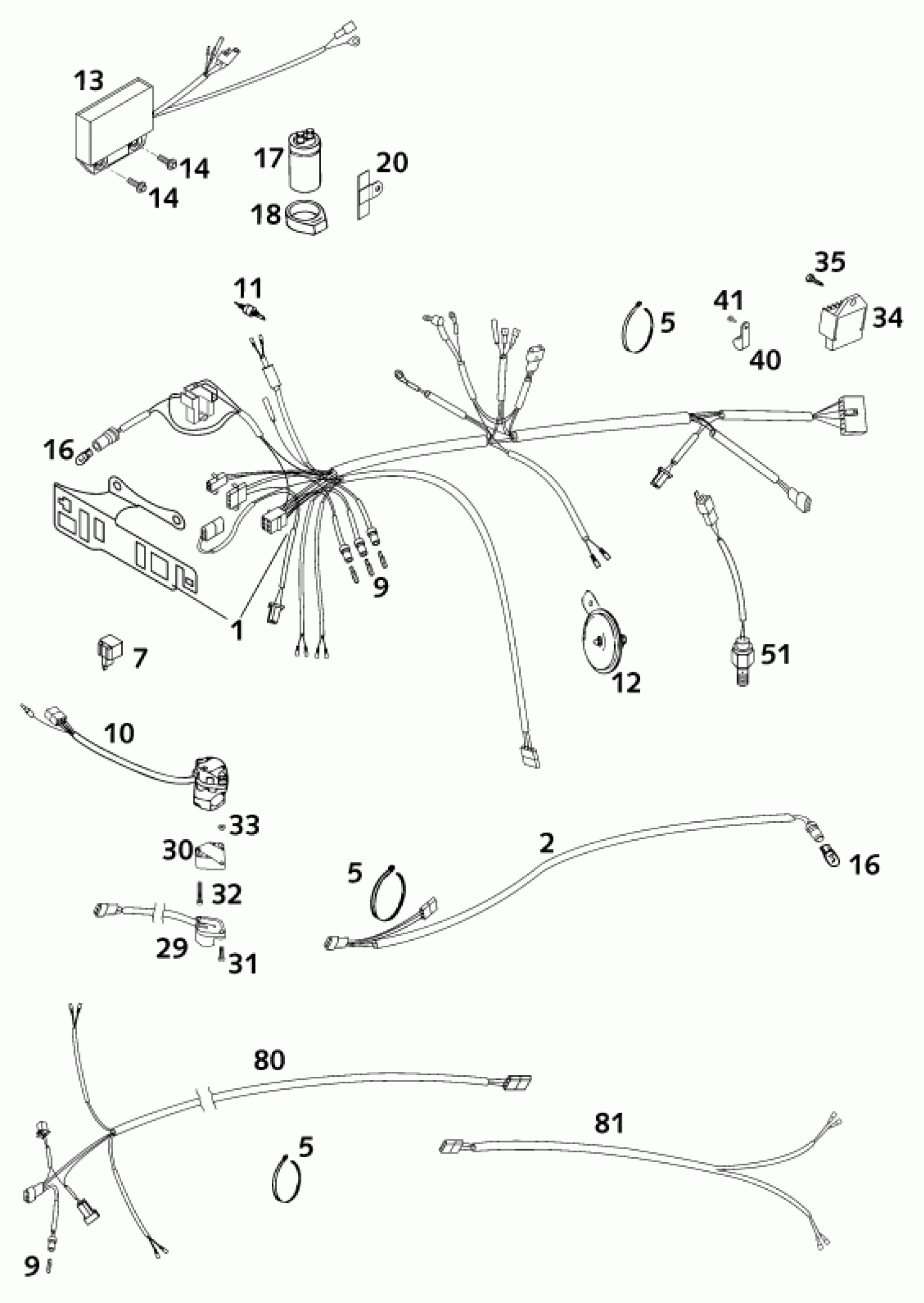

KTM 620 SC SUPER-MOTO 2001 WIRING HARNESS Diagram

Cable tie 200/4.6mm black

44011076200

Unavailable

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

% WIRING H.+SUPPORT BRAC.SC 20

58311375200

Unavailable

WIRING H. NUMBER P. LIGHT 2001

58411047000

$13.00

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

FLASHER UNIT 97

44611207200

$49.83

BULB 12V 1,2W (W2X4,6D)

49111425000

$2.05

H.LIGHT SWITCH CEV 2/4TAKT '98

50311070000

$64.69

FRONT BRAKE LIGHT SWITCH

51011050000

$19.91

DC HORN 12V NIKKO

54511060100

Unavailable

DIGITAL BOX CDI CU7437 SC'99

58339031000

Unavailable

HH COLLAR SCREW M 6X20 WS=8

0014060203

$2.05

BULB 12V 5W (W2,1X9,5D)

49011435000

$5.23

CONDENSATOR 25V, 10.000 MF

49111435100

$57.59

CAPACITOR BRACKET

54511048000

$4.33

BRACKET FOR CAPACITOR

54611448000

Unavailable

FLASHER SWITCH CEV '98

50311029000

$51.98

ADAPTER FOR FLASHER SWITCH '98

13011070060

$5.23

FLAT HEAD SCREW DIN7985-M 4X16

0985040163

$2.05

CYL.HEAD SCREW DIN0084-M 4X22A

0084040223

$1.49

HEXAGON NUT DIN0934-M 4

0934040003

$1.49

VOLTAGE REGULA. 12V 125-200'98

50311034000

$102.28

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

PVC-CLAMP 7,9 MM HEYCO 3355

57013070100

$2.05

SCREW FOR PLASTIC 50X12

0016050121

$2.05

BRAKE LIGHT SWITCH REAR '98

50311051100

$36.92

FLASH.WIRINGHARNESS FRONT 2001

59011080000

$35.24

FLASH.WIRINGHARNESS REAR 2001

59011081000

$20.19
