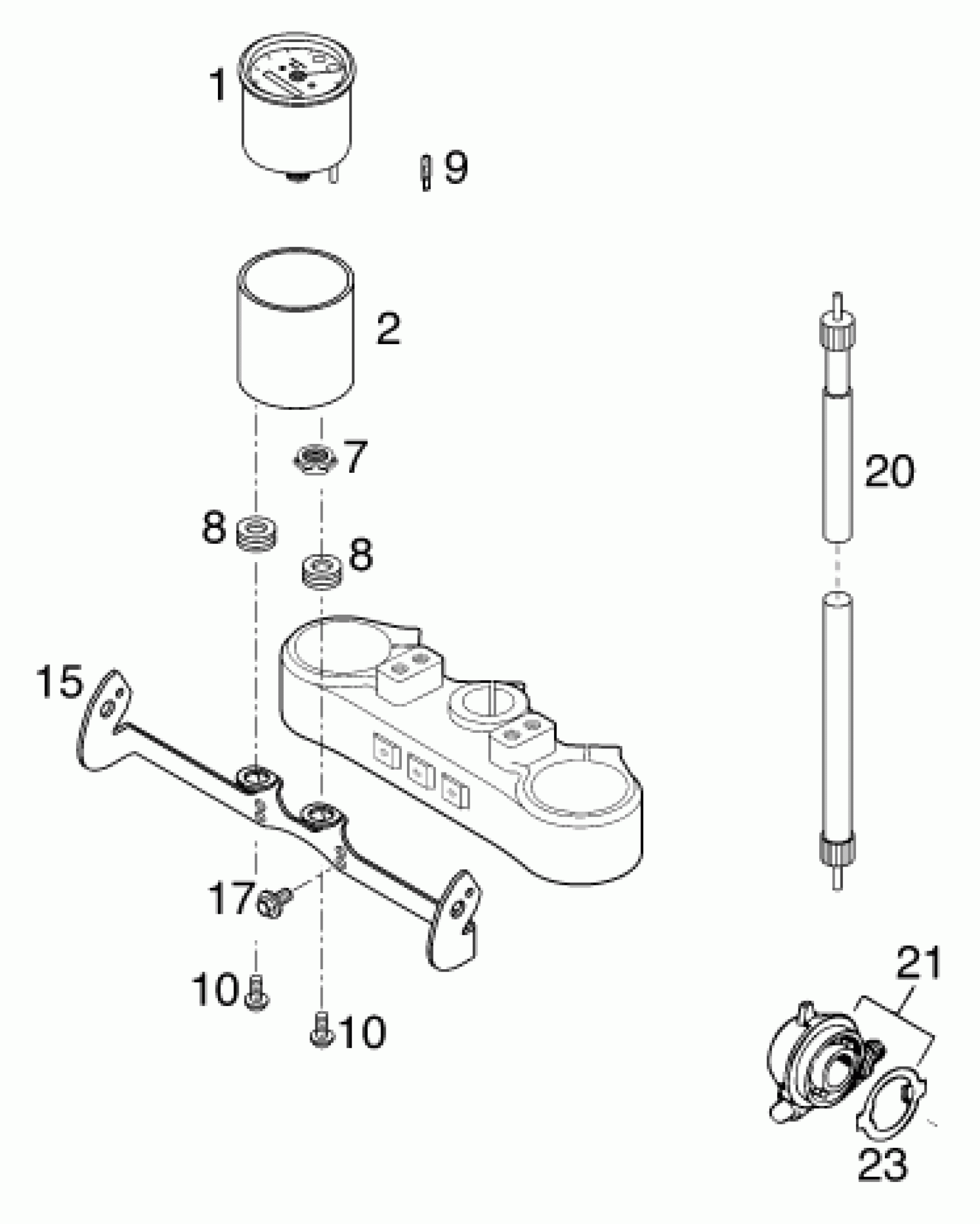

KTM 620 SC SUPER-MOTO 2001 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description

Price

1

TUBO IN GOMMA RACC.RADIAT.SERB

50314057000

Unavailable

2

SPEEDOMETER BOX FACOMSA 2000

50314065300

Unavailable

7

COLLAR NUT M12X1/WS17 H=5MM

50314057050

$6.63

8

rubber grommet D=8mm open

31008060000

$2.05

9

BULB 12V 1,2W (W2X4,6D)

49111425000

$2.05

10

SCREW FOR PLASTIC 50X12

0016050121

$2.05

15

SPEEDOM.BRACKET 125-380 EGS'99

50314061000

$9.12

17

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

20

SPEEDOM.CABLE M12/M12 960MM'99

58414055200

$55.72

21

SPEEDOMETER DRIVE748233(2.66)

50314050100

$31.86

23

DRIV.DOG F.SPEEDOM.DRIVE 2000

50314053000

$2.05
