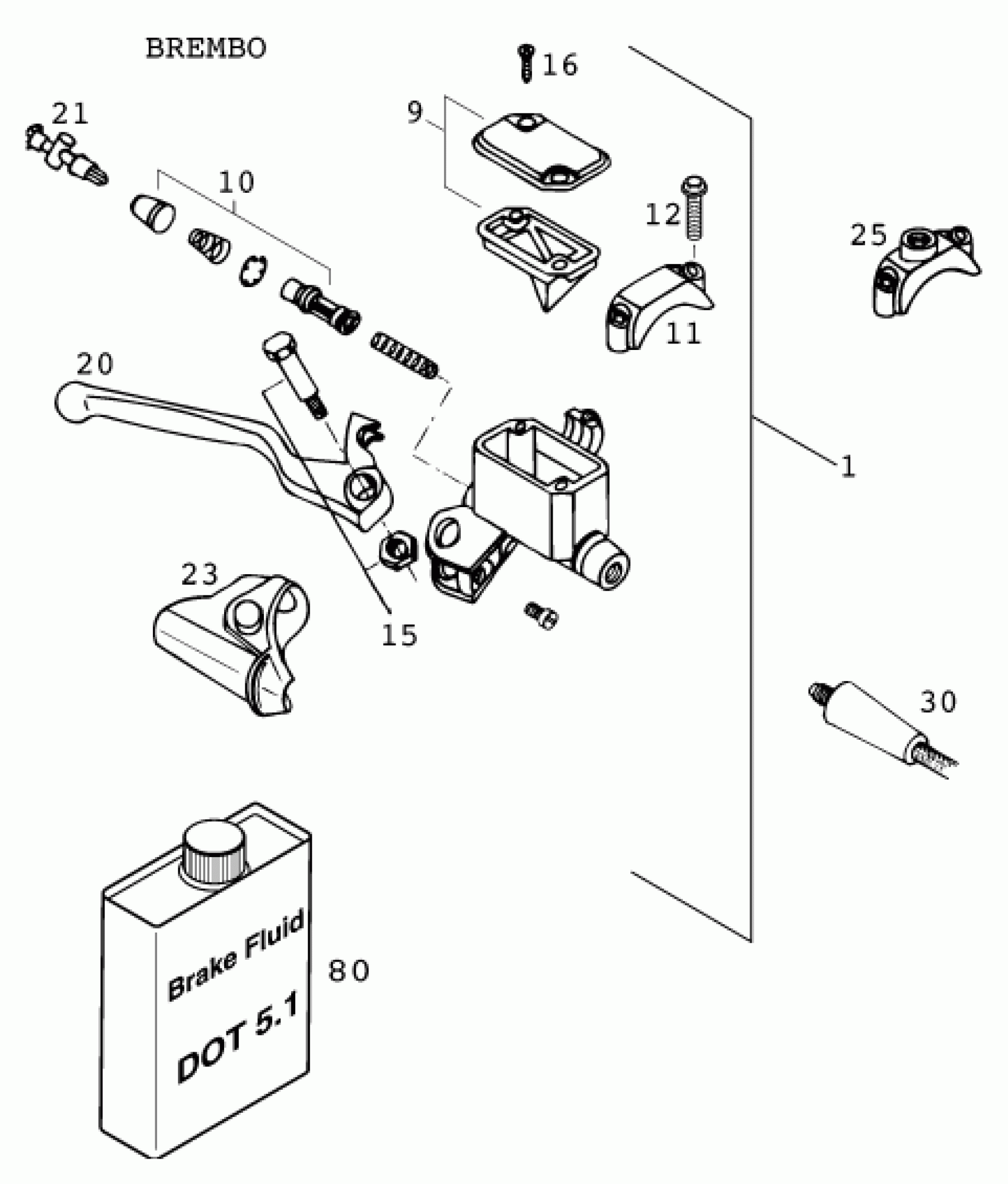

KTM 620 SC SUPER-MOTO 2001 FRONT BRAKE CONTROL Diagram

#

Description

Price

1

HAND BRAKE CYLINDER BLACK 2000

58413001000

$140.18

9

COVER CPL.

50213012000

$31.12

10

REPAIR KIT PISTON 11MM

50213050000

$30.21

11

CLAMP BREMBO

54413011000

$17.42

12

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

15

LEVER SCREW CPL.

50213015000

$10.95

16

FLAT HEAD SCREW DIN0965-M 4X12

0965040123

$1.49

20

HAND BRAKE LEVER LOOSE BREM'94

50213020000

$25.05

21

ADJUSTING SCREW CPL.

50213021000

$20.37

23

PROTECTION CAP BREMBO'94

50213023000

$22.36

25

Clamp for mirror

58012040150

$22.81

30

BRAKE HOSE FRT WP 1290MM '99

58313011100

$52.10

80

BRAKE FLUID DOT 4.0

306054

Unavailable
