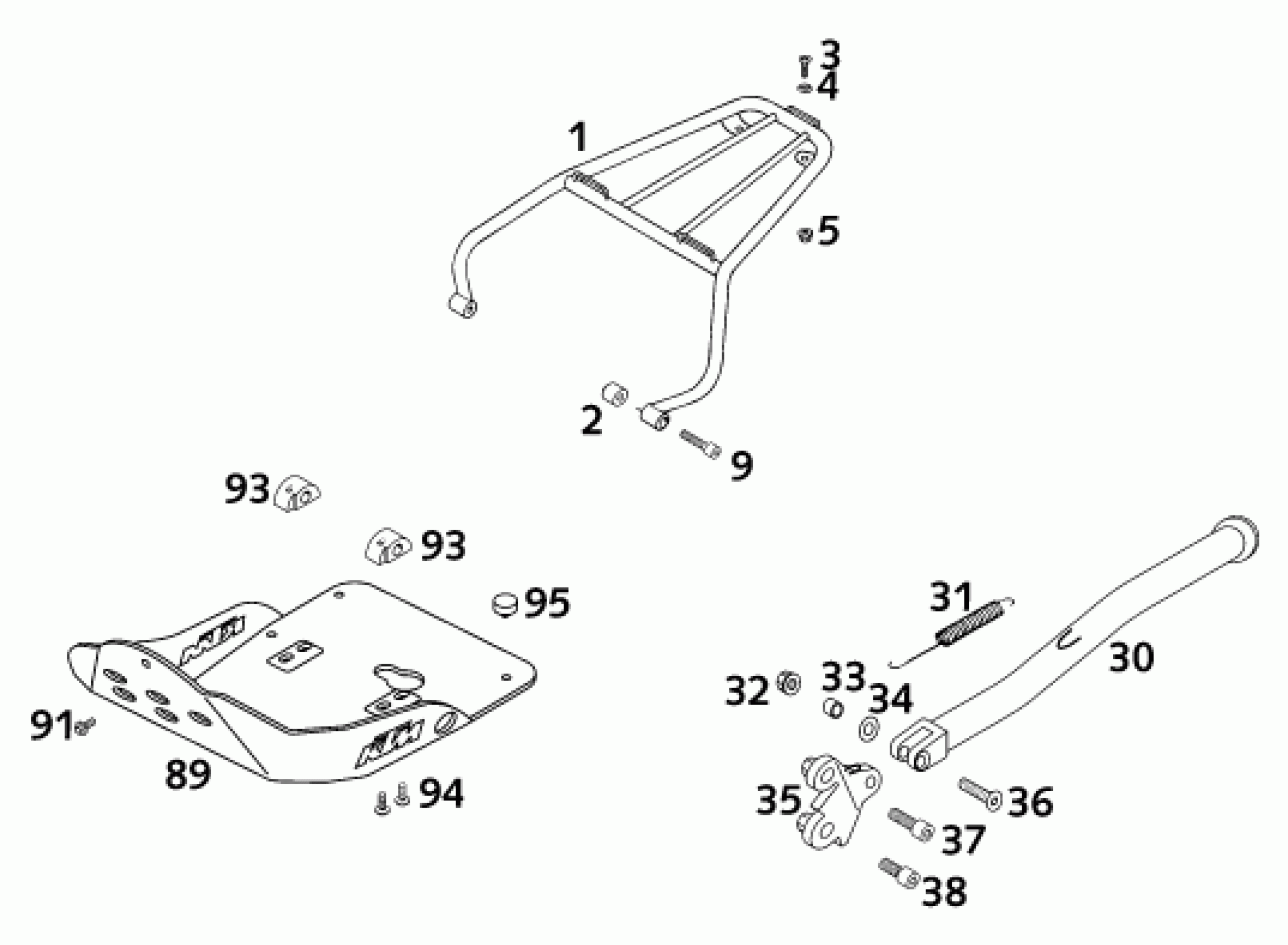

KTM 620 SC SUPER-MOTO 2001 ACCESSORIES Diagram

BAGGAGECARRIER SILVER LC4 2000

58412010200

$145.41

BUSH FOR BAGGAGE CARRIER 2000

58412011100

$1.73

FLAT H.SCREW DIN7991-M6X20

0991060203

$2.05

WASHER 6MM

40006006000

$1.49

Self locking nut M6 - 10

56509064100

$2.05

AH SCREW DIN0912-M 6X35

0912060353

$2.05

SIDESTAND SILVER L=381MM '99

5830302320090

$86.73

SIDESTAND SPRING LONG

51003021000

$7.00

Self locking nut M8 10.9

54310086200

$3.08

BUSHING 8,2 X 12 X 10

57103225000

$4.11

WASHER 12,5 X 25 X 1,5

54603025000

$3.56

SIDE STAND BRACKET '97

58303026250

$73.70

FLAT HEAD SCREW DIN7991-M 8X35

0991080353

$2.61

AH SCREW DIN0912-M10X30

0912100303

$2.05

AH SCREW DIN0912-M10X25 10.9

0912100256

$4.11

AP-ANLAGE KPL. HUSABERG

58412099000

Unavailable

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

ENGINE PROTECTOR BRACKET '97

58003012200

$20.47

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

RUBBER BUFFER

54308042000

$3.08
