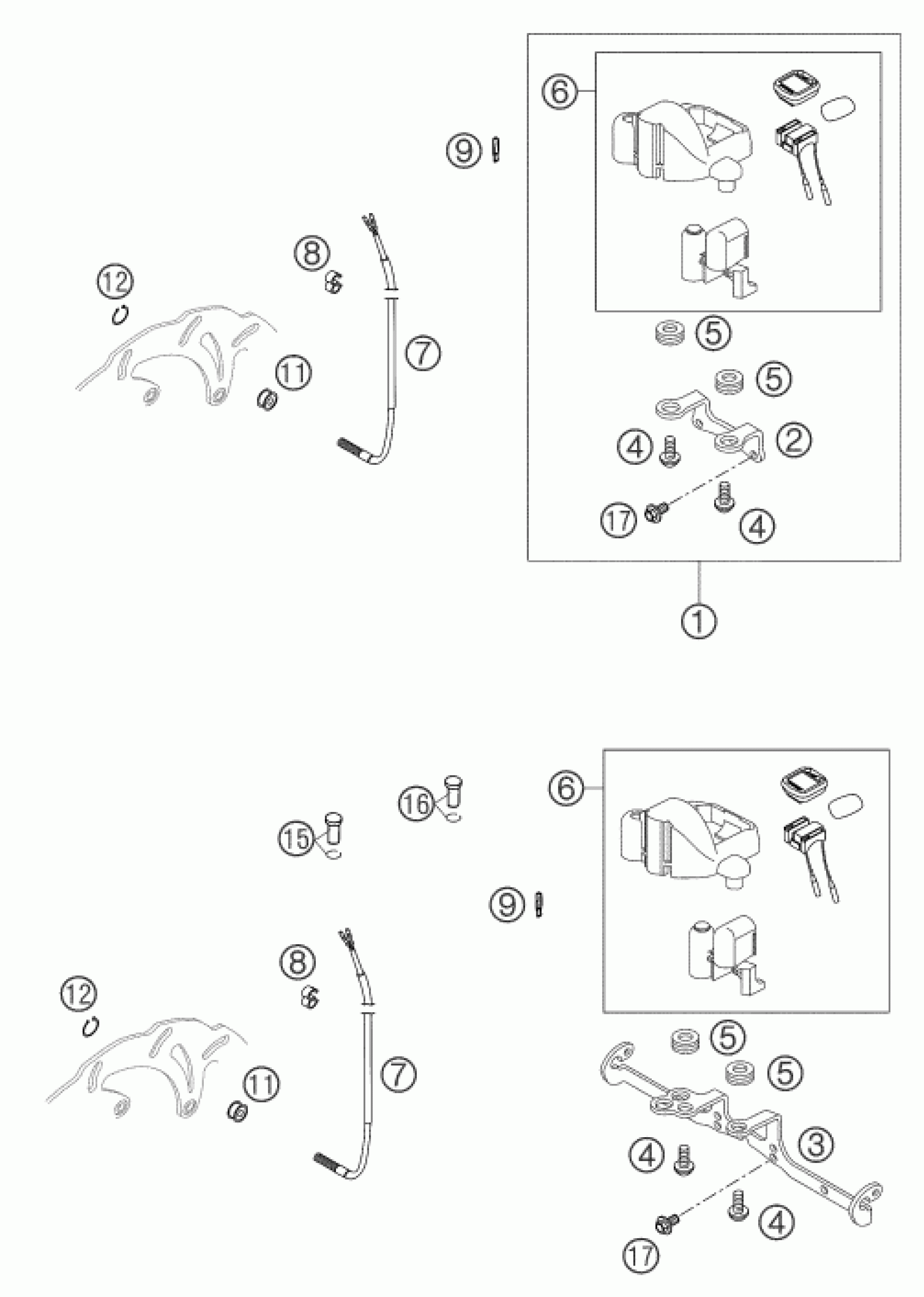

KTM 620 SC 2001 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

1

SPEEDOMETER CASE CPL. EXC '99

50314065244

$61.59

2

SPEEDOMET.BRACKET EXC BLACK'99

50314060000

$13.85

3

SPEEDOMET.BRACKET EGS '99

50314061100

$8.62

4

SCREW FOR PLASTIC 50X12

0016050121

$2.05

5

rubber grommet D=8mm open

31008060000

$2.05

6

SPEEDO.SIGMASPORT 500 CPL.'99

50314069044

$84.15

7

CABLE FOR SIGMA 500 '98

58314069151

$94.72

8

CLAMP D=6/8MM, BLACK

55011022100

$2.05

9

BULB 12V 1,2W (W2X4,6D)

49111425000

$2.05

11

MAGNET FOR DIGITALSPEEDOM.2000

50314069050

$17.50

12

CIRCLIP DIN0471- 9X1 INOX

0471009104

$2.05

15

H.BEAM INDICATOR LIGHT BLUE'98

58011021300

$6.63

16

FLASHER INDICAT.LIGHT GREEN'98

58011024300

$6.72

17

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08
