LUBRICATING SYSTEM

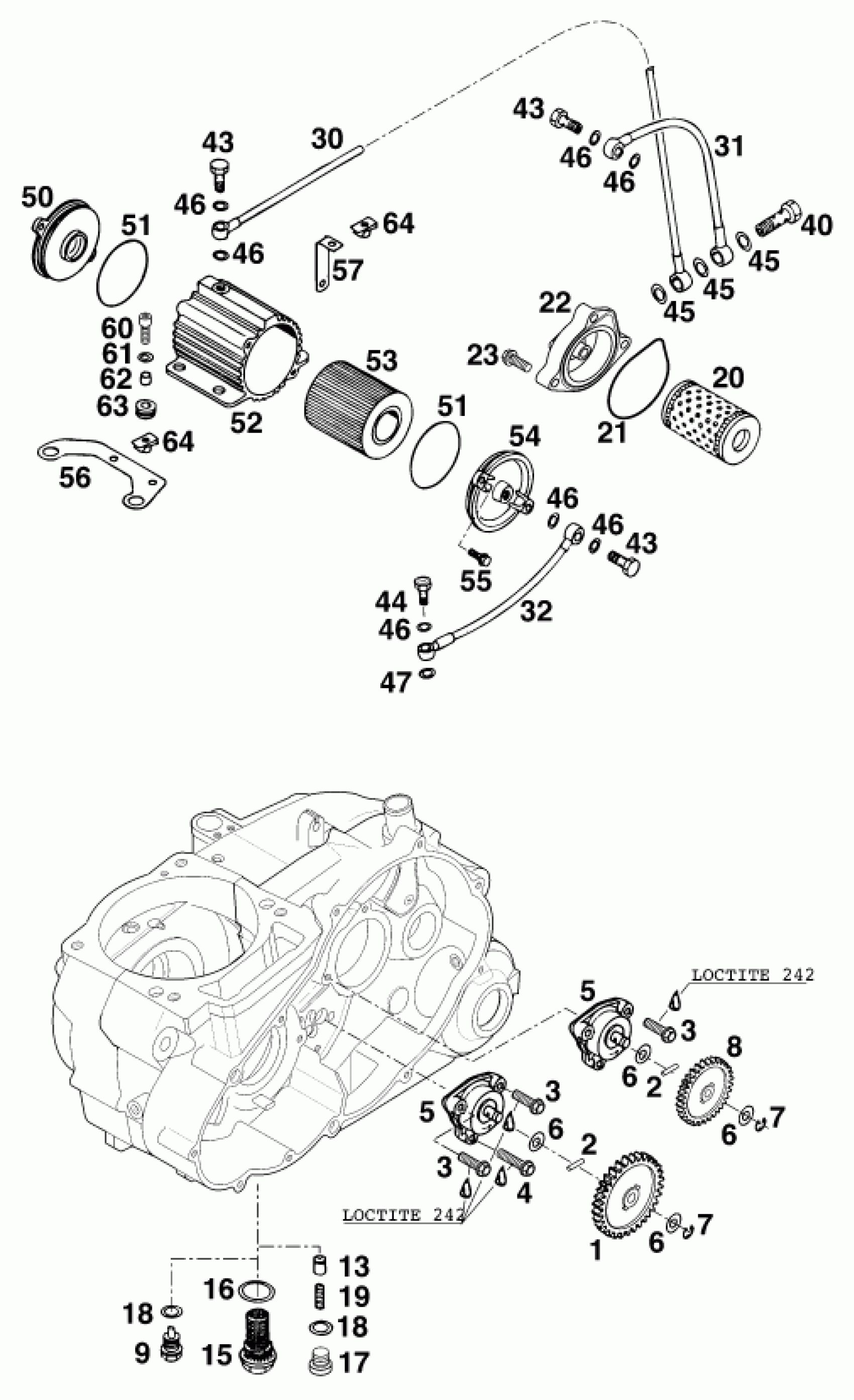

KTM 620 SC 2000 LUBRICATING SYSTEM Diagram
#
1
OIL PUMP GEAR 31-T
58038001100
$4.39
2
NEEDLEROL.DIN5402 NRA 2,5X19,8
0402251980
$1.49
3
HH COLLAR SCREW M 6X20 WS=8
0015060203
$3.08
4
HH COLLAR SCREW M 6X25 WS=8
0015060253
$3.08
5
OIL PUMP MIKUNI G-73-10
58038007700
$97.42
6
STOP DISK 8,1 X 15 X 0,5
58038007755
$2.05
7
TAB WASHER DIN6799-RS 6,0
0799060000
$2.05
8
OIL PUMP GEAR 26-T
58438001000
$9.53
9
OILDRAIN PLUG W.MAG. M 12X1,5
58030021000
$11.30
13
VALVE PISTON D=10MM
58038028000
$37.77
15
OIL DRAIN PLUG M22X1,5
58038019100
$26.97
16
CU-SEAL RING DIN7603-22X27X2
58038017100
$3.08
17
threaded plug DIN 908 M12x1.5
0908120153
$4.11
18
CU-seal ring DIN7603-12X18X1.5
58038022000
$2.05
19
PRESSURE SPRING L=25MM D=1MM
58038023300
$5.23
20
OIL FILTER LONG
58038005000
Unavailable
21
GASKETRING OILF.COVER VITON
58030009000
$9.53
22
FILTER COVER M10x1
58030008600
Unavailable
23
HH COLLAR SCREW M 6X25 WS=8
0015060253
$3.08
30
OIL LINE FILTER/ MICRO-FILTER
58038234200
$34.06
31
OIL LINE FILTER/INJECT.VA. R/S
58038334600
$27.71
32
OIL LINE MIC-FILTER/CLUT.COVER
58038134600
$26.14
40
DUAL BANJO BOLT M10 X 1
58038033100
$12.80
43
BANJO BOLT M8 X 1 DIN7643
58038030000
$5.23
44
JET SCREW M 8 X 1 ''150''
58038130000
$12.89
45
CU-SEAL RING DIN7603-10X14X1
58038032010
Unavailable
46
CU-SEAL RING DIN7603- 8X12X1
58038032000
Unavailable
47
CU-SEAL RING 8 X 12 X 1,5
58038032300
$2.05
50
FILTER COVER '91
58038041100
$43.80
51
O-RING 56,00X2,00 VITON
0770056020
$5.23
52
% MICRO FILTER HOUSING
58038043000
Unavailable
53
MICRO FILTER ELEMENT
58038044000
$26.26
54
FILTER COVER WITH M8 X 1
58038042100
$37.81
55
SPECIAL SCREW DIN7500-M5,0X16
0010050163
$1.49
56
BRACKET FOR MICRO-FILTER '93
57538090000
$2.48
57
BRACKET MICRO-FILTER '93
57538091000
Unavailable
60
AH collar screw DIN 912 M5x16
0912050163
Unavailable
60
AH SCREW DIN0912-M 5X20
0912050203
Unavailable
61
WASHER 6,2X18X2
50232050000
Unavailable
62
SPACER BUSHING 6X8X8,5
54431032050
$1.49
63
rubber grommet D=8mm open
31008060000
$2.05
64
RANGE CHANGE METAL NUT M5
54603048200
$5.23
