Description

Price

11

ADJUSTING SCREW CPL. M4X40

50211631000

$4.35

12

HEADLIGHT BRACKET '93

50211410050

$5.65

13

SCREW FOR PLASTIC D=4X18

0016040183

$2.05

14

BILUX-BULB 12V 35/35W BA20D

44111038000

$16.17

30

HEADLIGHT CPL. CEV 322 '93

50211410000

$52.98

35

BULB SOCKET

50211436000

Unavailable

36

* COVER CAP

50211437000

Unavailable

50

HEADLIGHT CEV 394 '93

50211510000

$134.16

52

HEAD LIGHT SUPPORT '98

58414010000

$2.61

54

BULB H4 12V 60/55W (P43T)

57111038000

$43.56

55

* BULB HOLDER

49011436000

Unavailable

56

RUBBER CAP

50211537000

$3.48

58

TOOTH LOCK WASH. DIN6797-A 6,4

0797060003

$1.49

59

HH SCREW DIN0933-M 6X20

0933060203

$1.49

60

Plug SFL16

50210086000

$3.08

72

CABLE FOR HEADLIGHT '93

50211410010

Unavailable

73

* CABLE FOR HEADLIGHT '93

50211510010

Unavailable

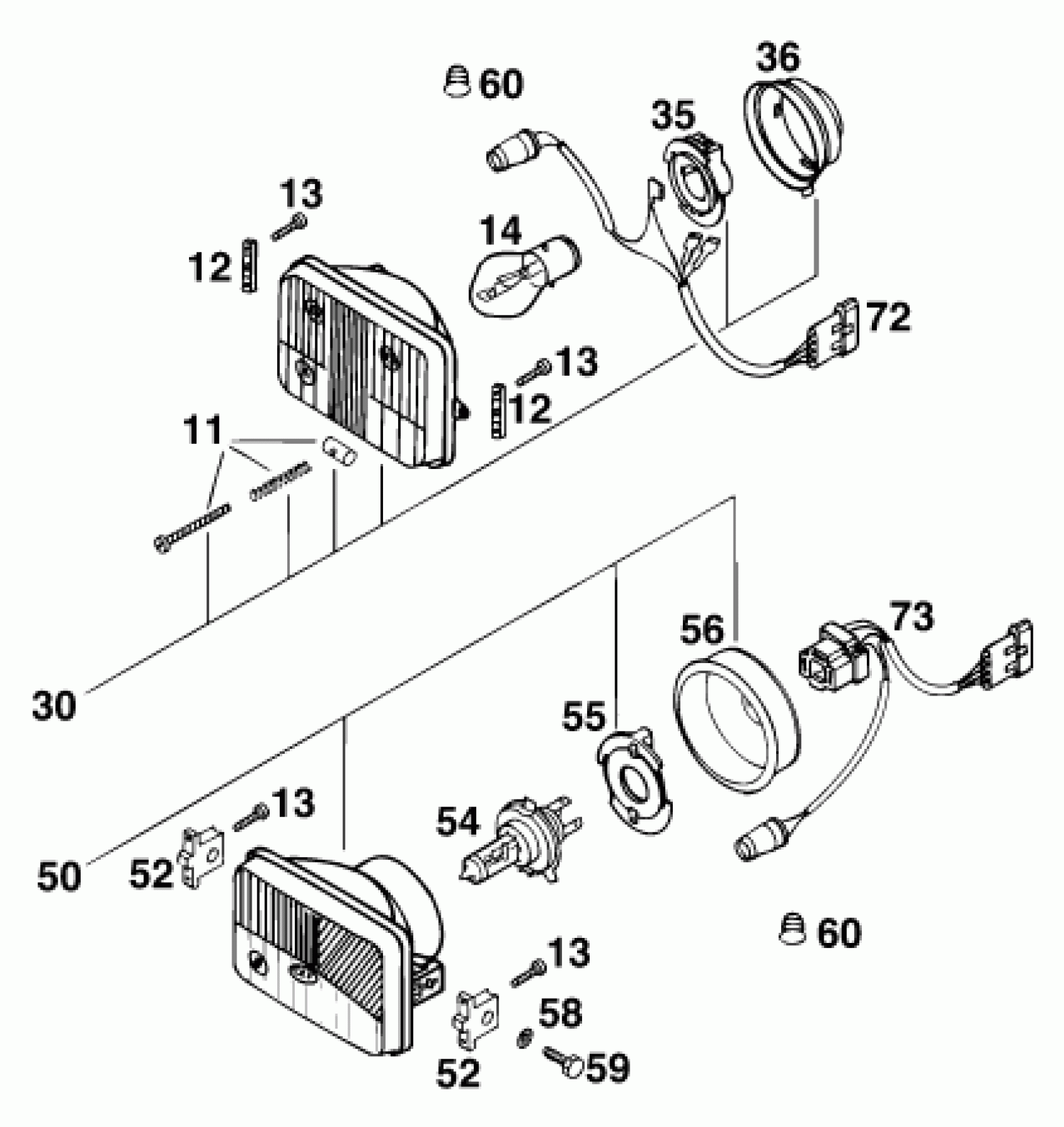

KTM 620 SC 2000 LIGHTING SYSTEM Diagram

ADJUSTING SCREW CPL. M4X40

HEADLIGHT BRACKET '93

SCREW FOR PLASTIC D=4X18

BILUX-BULB 12V 35/35W BA20D

HEADLIGHT CPL. CEV 322 '93

BULB SOCKET

* COVER CAP

HEADLIGHT CEV 394 '93

HEAD LIGHT SUPPORT '98

BULB H4 12V 60/55W (P43T)

* BULB HOLDER

RUBBER CAP

TOOTH LOCK WASH. DIN6797-A 6,4

HH SCREW DIN0933-M 6X20

Plug SFL16

CABLE FOR HEADLIGHT '93

* CABLE FOR HEADLIGHT '93
