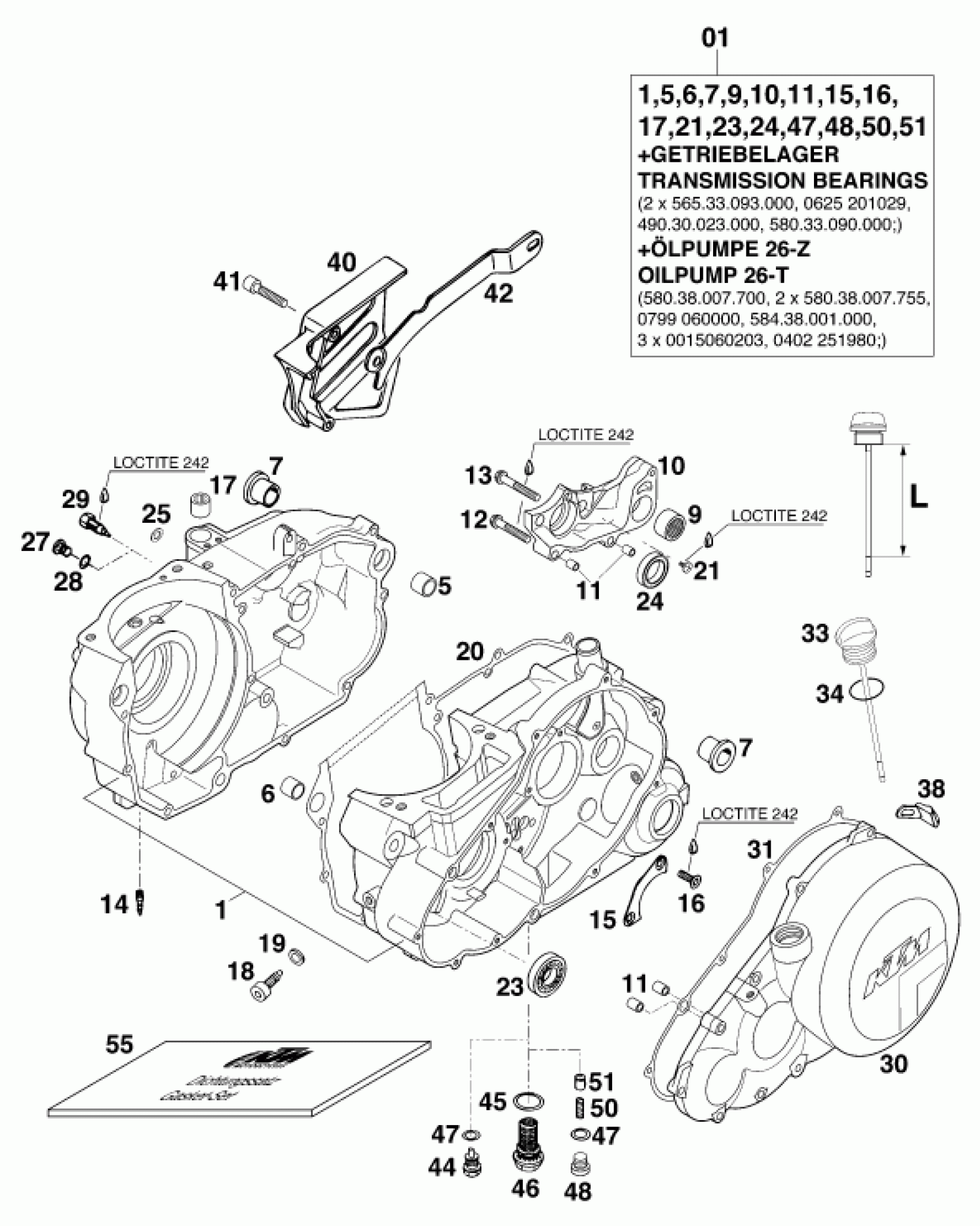

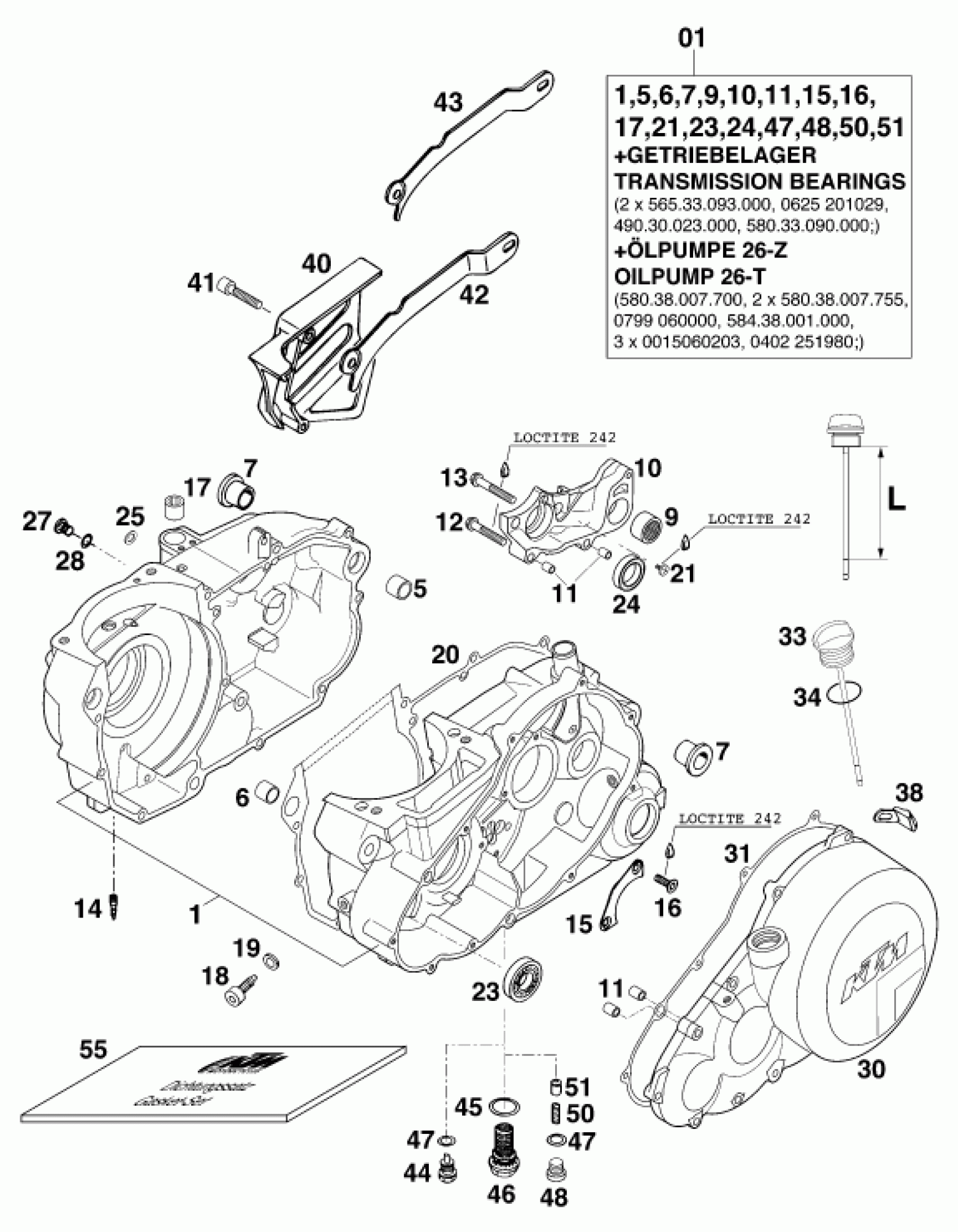

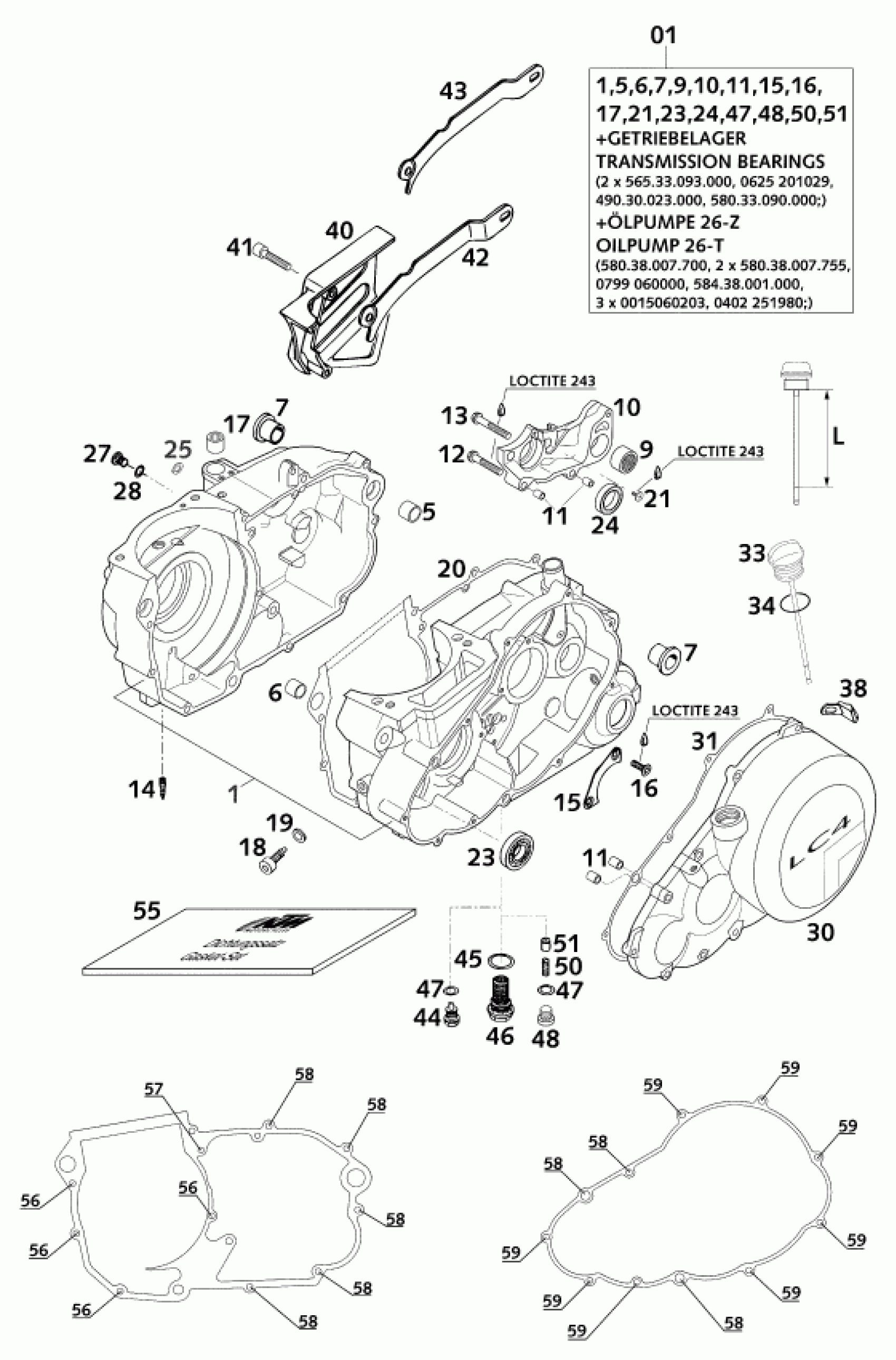

KTM 620 SC 2000 ENGINE CASE Diagram

ENG.CASE SC CPL.W.TRAN.BEAR'97

58330000344

$1,068.88

DOWEL 19 X15,1X12

50130027000

$5.30

DOWEL 17 X 13 X 12

51030026100

$6.44

CRANK CASE BUSH

50130010000

$21.78

NEEDLE BEARING HK 2216

58033097000

$14.02

SHIFT MECHANISM SUPPORT LC4'94

58330011000

$90.03

DOWEL 9,8 X 7 X 10

49030090000

$2.05

HH COLLAR SCREW M 6X35 WS=8

0015060353

$3.08

HH COLLAR SCREW M 6X40 WS=8

0015060403

$3.08

TUBE LW 3

49130450050

Unavailable

RETAINING PLATE

56530017000

$12.03

FLAT HEAD SCR. DIN7991-M 6X16

0991060163

$2.05

NEEDLE BEARING HK 1212

50332095000

$8.03

LOCATING SCREW M8 L=23

58030080000

$17.66

CU-SEAL RING 8 X 14 X 3

58030081000

$2.05

ENGINE CASE GASKET LC4-E '96

58430039000

Unavailable

OVAL HEAD SCR. DIN7985-M 5X10

0985050103

$1.49

GROOVED BALL BEARING 16003 C3

0625160030

Unavailable

BALL BEARING 61805 C3

0625618050

$43.94

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

OIL DRAIN PLUG M10X1,5 AH-WS=6

49030029000

$5.79

CU-SEAL RING DIN7603-10X14X1

58038032010

Unavailable

CLUTCH COVER GASKET '94

58330025000

$21.96

OIL DIPSTICK CPL. L=93MM '96

58330020144

$14.02

O-RING 16,00X3,00 NBR 70

0770160030

$2.05

BUMP RUBBER

58333041000

$6.62

CHAIN COVER BLACK '99

58030050700

$10.70

AH SCREW DIN0912-M 6X30

0912060303

$2.05

CHAIN DAMPER SHEET LC4 '90

58030047515

$15.77

CHAIN DAMPER SHEET DUKE'94

58030047615

$17.54

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

$11.30

CU-SEAL RING DIN7603-22X27X2

58038017100

$3.08

OIL DRAIN PLUG M22X1,5

58038019100

$26.97

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

threaded plug DIN 908 M12x1.5

0908120153

$4.11

PRESSURE SPRING L=25MM D=1MM

58038023300

$5.23

VALVE PISTON D=10MM

58038028000

$37.77

GASKET SET 400/620 SC,EGS '97

58330099200

$165.00

HH COLLAR SCREW M 6X55 WS=8

0015060553

$1.49

HH COLLAR SCREW M 6X65 WS=8

0015060653

$2.05

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08
