CYLINDER HEAD

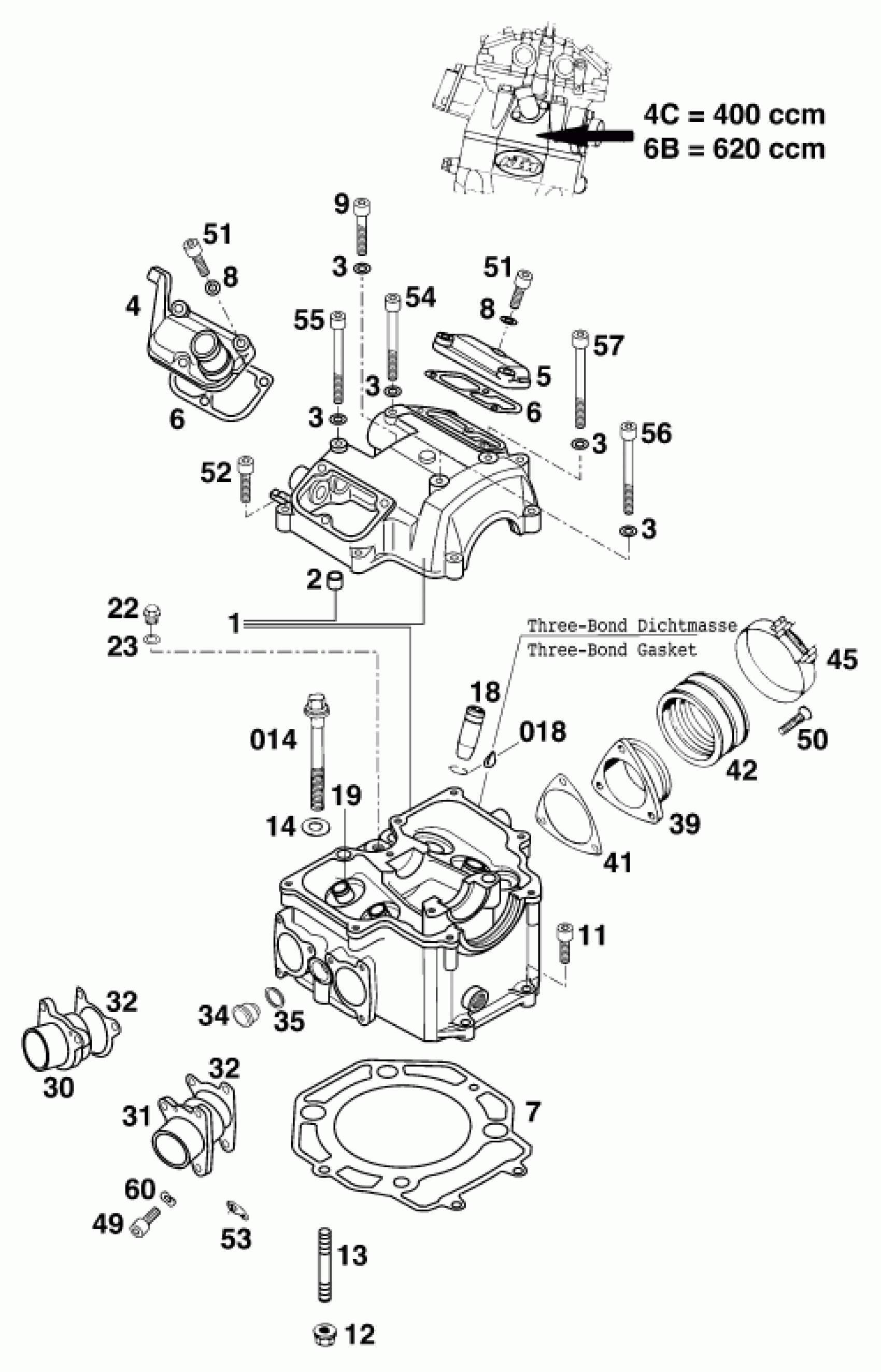

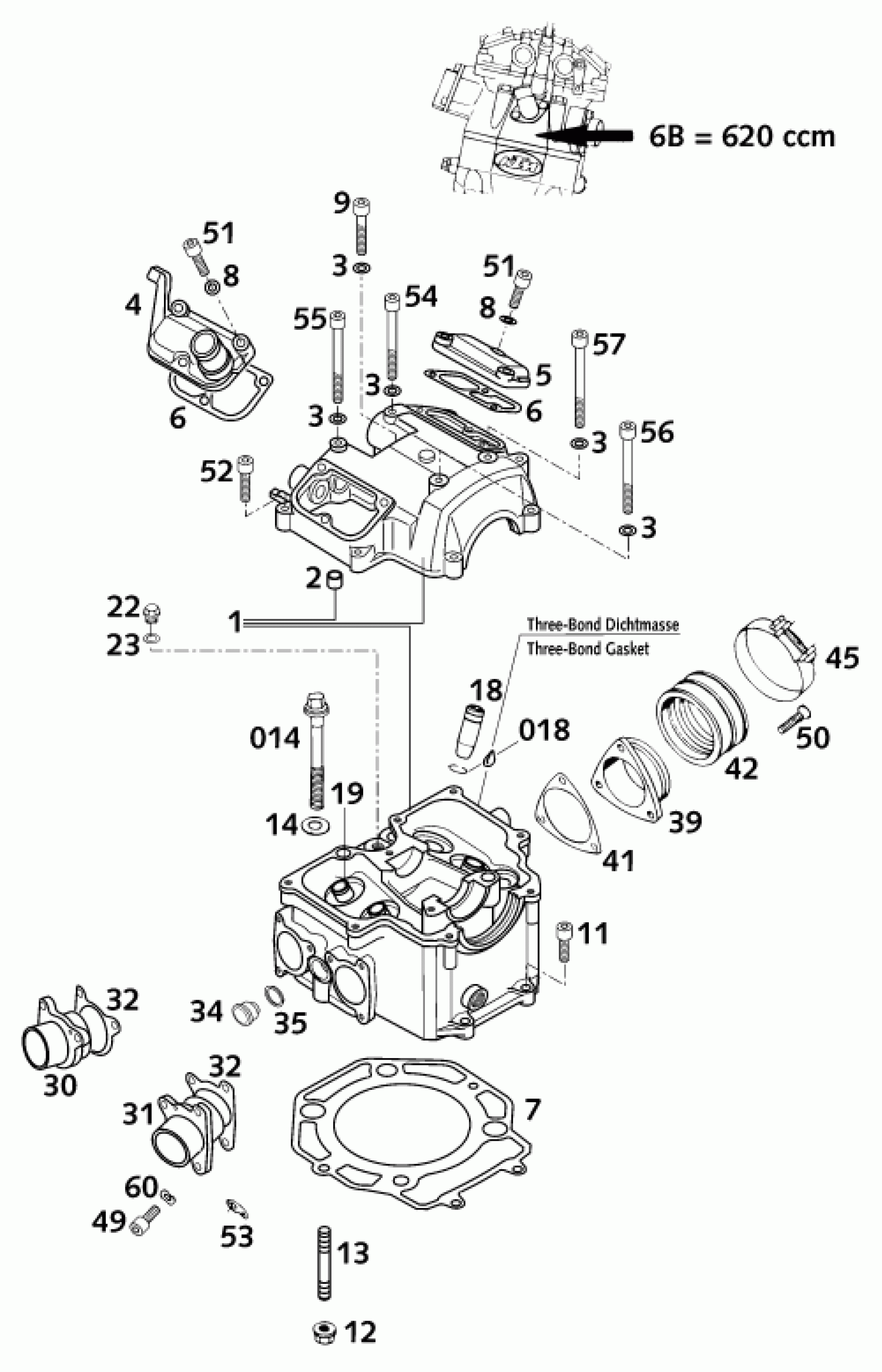

KTM 620 SC 2000 CYLINDER HEAD Diagram
#
1
CYLINDER HEAD CPL. 400 LC4 '97
57636020300
Unavailable
1
CYLINDER HEAD CPL. 620 LC4 '95
58336120200
Unavailable
2
DOWEL 9,8 X 7 X 10
49030090000
$2.05
3
CU-SEAL RING 6 X 10 X 2
58036065100
$2.05
4
VALVE COVER FRONT
58036152500
Unavailable
5
VALVE COVER REAR
58036052000
$36.15
6
VALVE COVER GASKET
58036053000
$4.11
7
CYLINDER HEAD GASKET 90,3 MM
57530036000
$58.34
7
CYLINDER HEAD GASKET 101,3 MM
58330036000
$59.36
8
CU-SEAL RING DIN7603-6X10X1
0603061001
$2.05
9
AH SCREW DIN0912-M 6X35
0912060353
$2.05
11
AH SCREW DIN0912-M 6X25
0912060253
$2.05
12
COLLAR NUT M8
49030028000
$3.08
13
STUD DIN0835-M 8X35 10.9
0835080355
$3.08
13
STUD DIN0835-M 8X40
54330043000
$4.35
14
CU-SEAL RING 10 X 20 X 1
58036098000
$2.05
14
COLLAR SCREW M10X80 WS=13 10.9
58036099100
$10.46
18
CIRCLIP DIN7993-RW12
0993012000
$3.08
18
VALVE GUIDE INTAKE
58036026600
Unavailable
19
VALVE GUIDE EXHAUST
58036126600
Unavailable
22
PLUG DIN0910-M 10X1
0910100003
$4.11
23
CU-SEAL RING DIN7603-10X14X1
58038032010
Unavailable
30
EXHAUST FLANGE R/S
58036040000
$30.15
31
EXHAUST FLANGE L/S
58036140000
$29.45
32
EXHAUST FLANGE GASKET
58036041000
$4.11
34
PLUG SAS BORE
58336024000
$4.11
35
CU-SEAL RING 12 X 16 X 2
58436054000
$2.05
39
INTAKE FLANGE D=40MM
58136042040
Unavailable
41
INTAKE FLANGE GASKET
58136043000
$3.08
42
INTAKE BOOT D=38MM 400-660 LC4
58136044100
$33.74
45
CLAMP SM12/A60
56530061000
$7.40
49
AH SCREW DIN0912-M 6X16
0912060163
$1.49
50
FLAT H.SCREW DIN7991-M6X20
0991060203
$2.05
51
AH SCREW DIN0912-M 6X20
0912060203
$2.05
52
AH SCREW DIN0912-M 6X25
0912060253
$2.05
53
RETAINING PLATE
51005074000
$3.08
54
AH SCREW DIN0912-M 6X50 12.9
0912060501
$1.73
55
AH SCREW DIN0912-M 6X55 12.9
0912060551
$2.05
56
SHCS DIN 912 M6x65
0912060653
$2.05
57
AH SCREW DIN0912-M 6X70
0912060703
$1.49
60
SPRING WASHER DIN0137-B 6
0137060000
Unavailable
