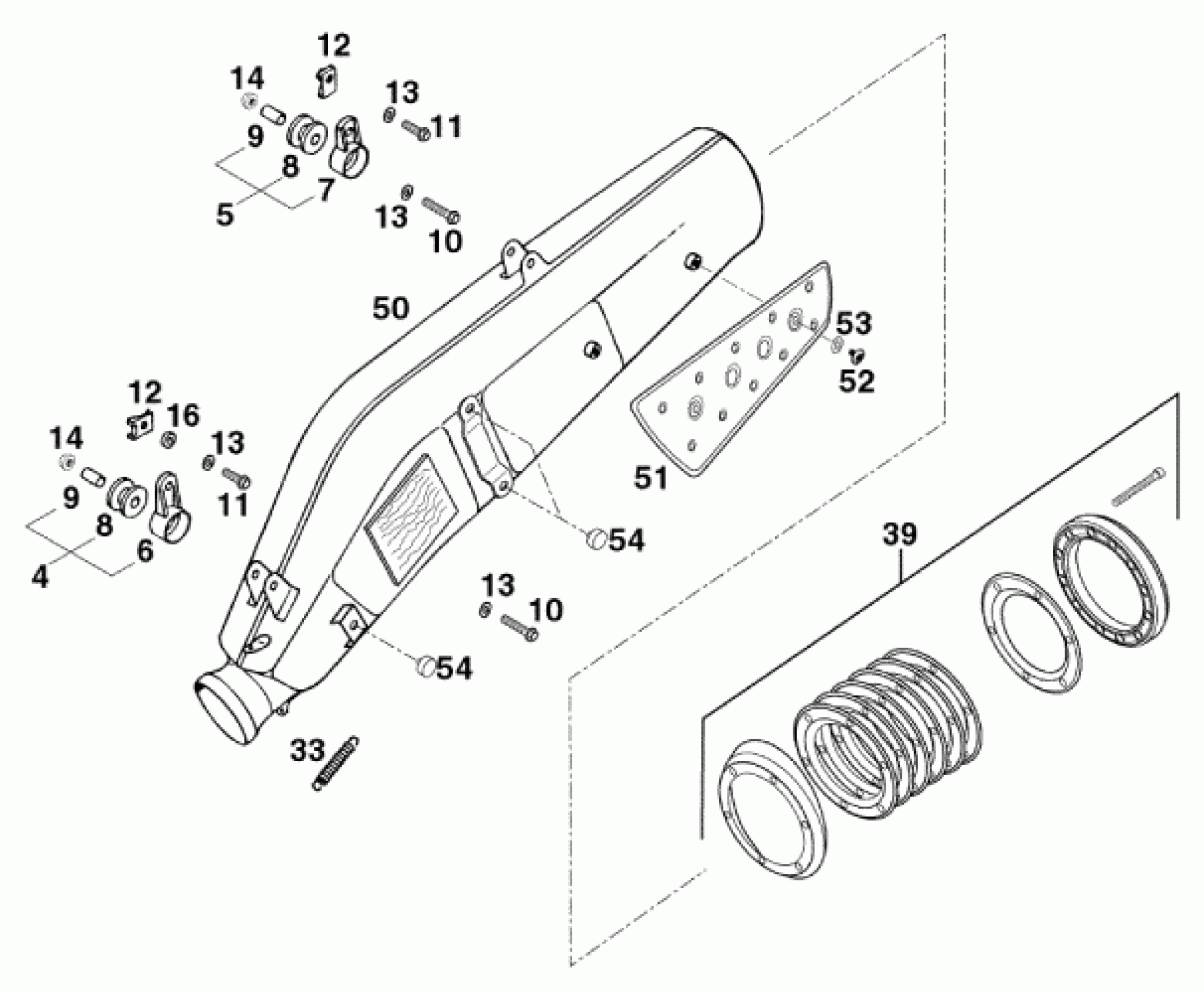

KTM 620 RXC-E <1997> MAIN SILENCER Diagram

#

Description
Price

4

SIL. BRACKET CPL. LONG SILICON

54305065244

$21.41

5

SIL. BRACKET CPL.SHORT SILICON

54305065344

$21.42

6

BRACKET FOR SILENCER LONG

54305065000

Unavailable

7

% BRACKET FOR SILENCER SHORT

54305065100

Unavailable

8

damp. component silicone grey

54305068100

$8.31

9

BUSHING 7X12X15,4

54305069000

$4.11

10

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

11

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

12

clip nut M6

54603048100

$4.11

13

spring washer DIN 137 B - 6

0137060003

$2.05

14

SELF LOCKING NUT M6

56509064000

Unavailable

16

STEEL WASHER 6,4X17X3

50232050001

$5.23

33

TENSION SPRING L=55MM

51005063000

$5.98

39

* SPARK-ARREST CPL."SUPERTRAP"

58005079650

Unavailable

50

* SILENCER "UGS" 400 RXC

57605080000

Unavailable

50

SILENCER "UGS" 620 RXC

58305080200

Unavailable

51

HEAT PROTECTOR SILENCER LC4'95

58305104000

Unavailable

52

AH BOLT ISO7380-M 6X8

0902060080

$1.65

53

WASHER 6,4X14X0,8

53002046100

Unavailable

54

RUBBER BUFFER

54308042000

$3.08
