FRONT FORK DISASSEMBLED

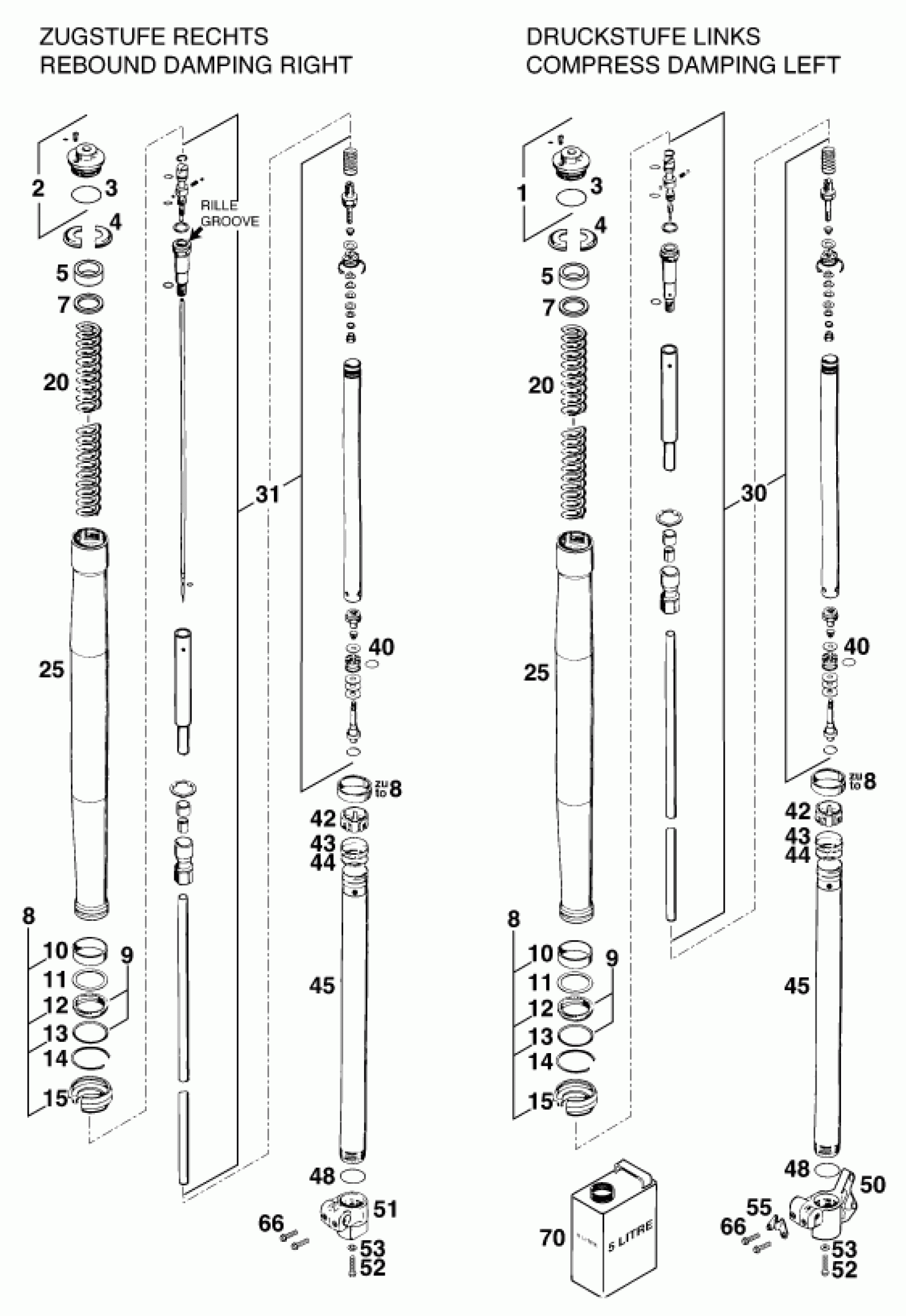

KTM 620 RXC-E <1997 FRONT FORK DISASSEMBLED Diagram
#
1
% SCREW CAP CPL. L/S "COM"
58301008600
Unavailable
2
% SCREW CAP CPL. R/S "REB"
58301009600
Unavailable
3
O-RING 43,00X3,00
0770430030
Unavailable
4
% KEY HALF
54501050000
Unavailable
5
* PRELOAD BUSHING 25X34X5
56401022000
Unavailable
5
% PRELOAD BUSHING 25X34X10
56401022100
Unavailable
5
* PRELOAD BUSHING 25X34X2,5
56401022200
Unavailable
7
WASHER 24,5X34X2
54501019000
Unavailable
8
% REPAIR KIT SEAL S.RINGS+BUSH
50201668244
Unavailable
9
REPAIR KIT SEAL SHAFT RINGS
50201669244
Unavailable
10
GUIDE BUSHING 40 X 44 X 20-1
57501026000
Unavailable
11
RING 42X49,2X1,5
56401027000
Unavailable
12
SHAFT SEAL RING 40X49,5X9LF
58001805000
Unavailable
13
RING 49,5X45X1
56401127000
Unavailable
14
SEEGER LOCK RING SB50
56401029000
Unavailable
15
DUST BELLOWS D40 '
56401025100
Unavailable
20
* SPRING 530 MM / 4,0 KG
54501021405
Unavailable
20
* SPRING 543 MM / 4,2 KG
54501021420
Unavailable
20
SPRING 530 MM / 4,4 KG
54501021440
Unavailable
20
* SPRING 530 MM / 4,6 KG
54501021460
Unavailable
25
* OUTER TUBE L=606MM '
57601004000
Unavailable
30
* CARTRIDGE CPL. L/S "0618Q712
58301010600
Unavailable
31
* CARTRIDGE CPL. R/S "0618Q712
58301011600
Unavailable
40
O-RING 15,60X1,78
0770020160
Unavailable
42
BUSHING
54501077000
Unavailable
43
ANILLO DE RODAMIENTO 42,8X13
54501045000
Unavailable
44
% RING 39X42X1
54501046000
Unavailable
45
% INNER TUBE L=625MM "0618Q712
54501003300
Unavailable
48
O-RING 38,00X2,00 NBR 70 SH
0770380020
$3.08
50
AXLE CLAMP L/S (300MM)
58301006600
Unavailable
51
AXLE CLAMP R/S
58301007600
Unavailable
52
* HH COLLAR SCREW M 8X30
54501082100
Unavailable
53
SEAL RING 8X12X1,5
54501081000
Unavailable
55
CLAMP FOR BRAKE HOSE '94
50201090000
$4.22
66
HH COLLAR SCREW M 7X25 WS=8
0015070253
$2.73
70
FORK OIL SAE5 5 LITER
306007
Unavailable
