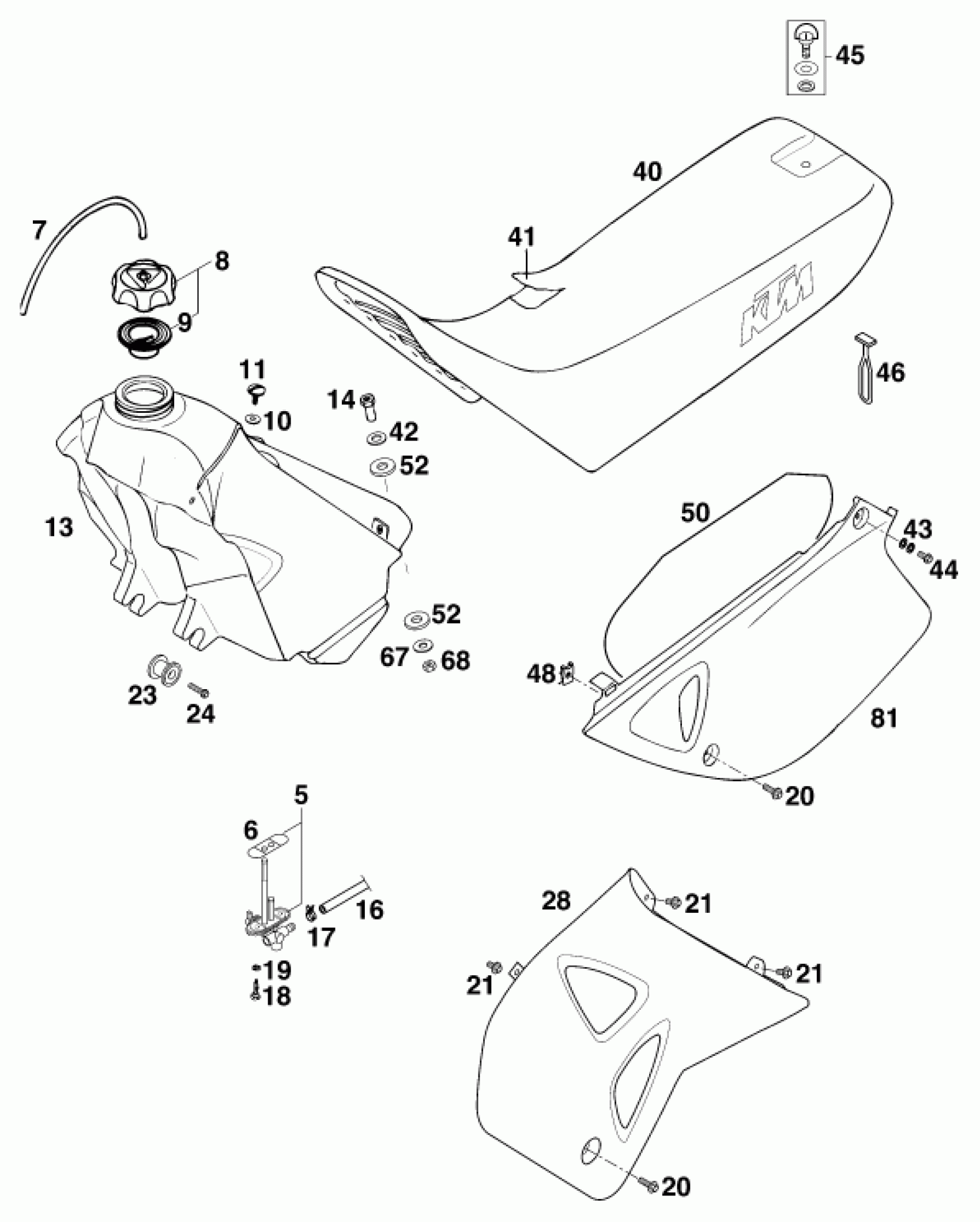

KTM 620 RXC-E <1996> TANK, SEAT Diagram

#

Description
Price

0

* SIDE COVER WHITE R/S '93

58308042000

Unavailable

0

* SPOILER WHITE R/S RXC '96

58335029200

Unavailable

5

FUEL COCK MIKUNI CK-84 '96

58307005100

$93.21

6

GASKET FUEL COCK MIKUNI

58307106100

$6.82

7

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

8

FILLER CAP CPL. SMALL

49007008044

$23.65

9

% GASKET FOR FILLER CAP

49007009000

Unavailable

10

WASHER DIN0125-A 6,4

0125060003

$1.49

11

OVAL HEAD SCREW M6X15

58007044000

$4.35

13

58307013200

Unavailable

14

SPECIAL NUT M8

58307014000

$6.26

16

FUEL HOSE VITON 7X2MM

58007016001

Unavailable

17

CLAMP YDNAC 10128 12MM

58031005000

$3.08

18

HH S.MET.SCREW DIN7676- 5,5X

0676550223

$2.05

19

TOOTH LOCK WASH. DIN6797-J 5,3

0797050003

$1.49

20

HH COLLAR SCREW M 6X20 WS=8

0014060203

$2.05

21

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

23

TANK BUSHING CPL. 12 X 34 X 25

58307113250

$10.20

24

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

28

* SPOILER WHITE L/S RXC 4ST'96

58335028200

Unavailable

40

* SEAT CPL. HIGH RXC '96

58307040700

Unavailable

41

SEAT COVER HIGH RXC '96

58307040750

$56.32

42

WASHER 10,5 X 25 X 1,5

58307019000

$2.05

43

Pair of washers M6 NORDLOCK

50233041000

$4.11

44

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

45

QUICK RELEASE CPL. '96

58307040551

$24.21

46

BRACKET RUBBER

55011186000

Unavailable

48

clip nut M6

54603048100

$4.11

50

HEAT PROTECTOR

58308041050

$12.86

52

INSOLATE WASHER 12X28X3

51005067100

$2.05

67

WASHER DIN9021-A 8,4

0021080003

$1.49

68

Hexagon nut DIN934 M8

0934080003

$2.05

81

* SIDE COVER WHITE L/S '93

58308041000

Unavailable
