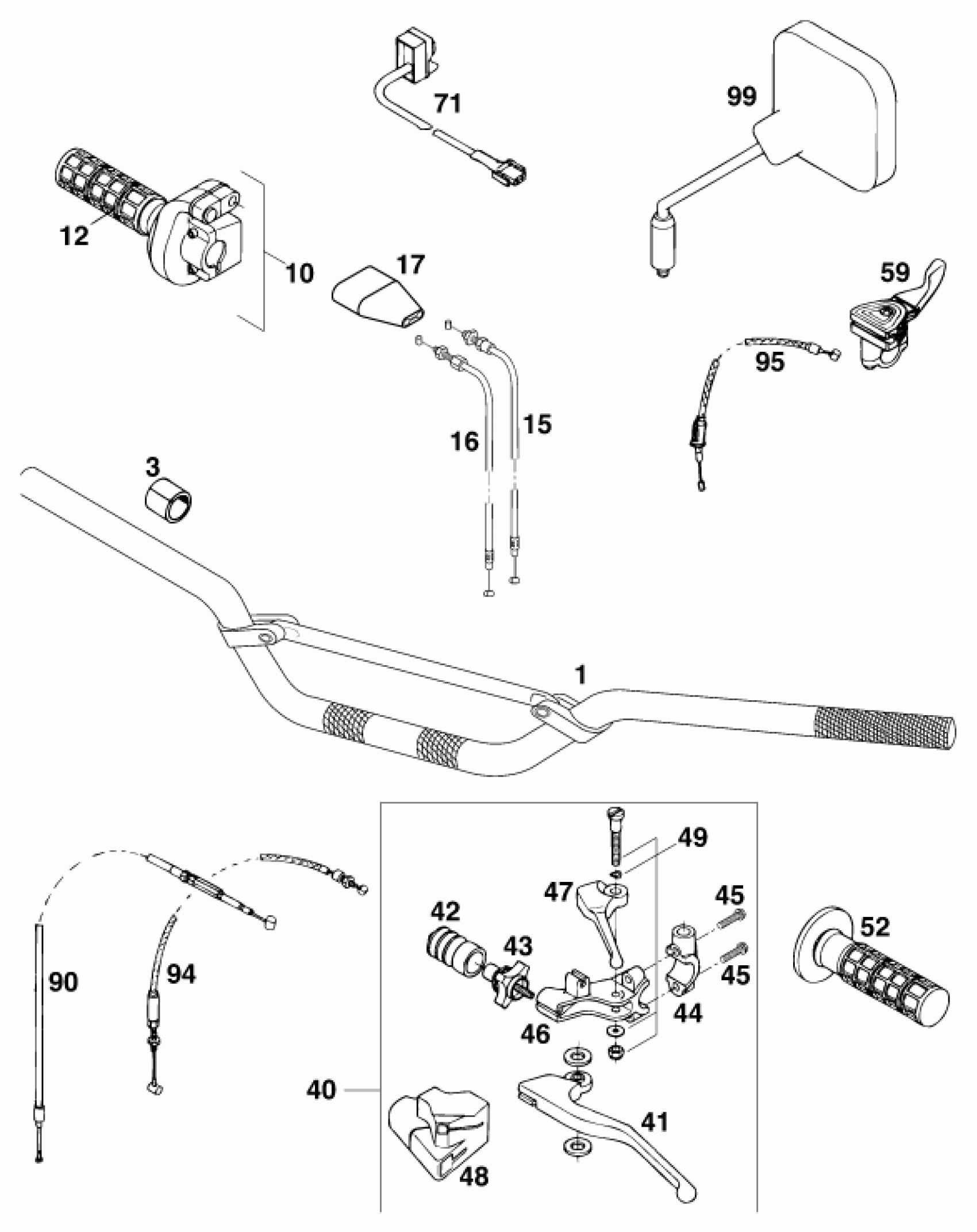

KTM 620 RXC-E <1996 HANDLEBAR, CONTROLS Diagram

#

Description
Price

0

Rear view mirror right

58012140000

Unavailable

1

ALU-HANDLEBAR '95

50202001000

$62.49

3

SPACER BUSHING 22X28X22PVC

50202010000

Unavailable

10

THROTTLE GRIP RXC/DUKE USA '95

58302010200

Unavailable

12

TWIST GRIP COVER DOMINO

58302003000

$27.76

15

THROTTLE CABLE DOMINO/QWIK

58302091300

$33.84

16

THROTTLE CABLE DOMINO/QWIK

58302191300

$33.46

17

PROTECT.COVER RXC/DUKE USA '95

58302016200

$3.06

40

CLUTCH LEVER ASSY CPL.DOMINO

58302040100

$82.83

41

CLUTCH LEVER LOOSE

58302055000

Unavailable

42

BELLOWS CLUTCH LEVER '91

54602126000

$10.62

43

ADJUSTMENT SCREW CPL.M7

58302043000

$22.06

44

CLAMP MIRROW M10x1,25

58302044000

$13.36

45

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

46

JOINT DOMINO

58302023000

$49.55

47

DECOMPRESSION LEVER LOOSE

58302047000

$12.05

48

PROTECTING COVER

58302048000

$8.01

49

LEVER SCREW CPL.

58302049000

$7.00

52

FIXED GRIP DOMINO '93

58302052000

$27.76

59

CHOKE LEVER DOMINO '93

58302050000

$20.61

71

SHORT CIRCUIT SWITCH 550MM '94

58311071100

$30.67

90

CLUTCH CABLE 125/LC4 TSK '

50202090200

Unavailable

94

DECOMPRESSION CABLE LC4 '93

58302094000

$29.35

95

CHOKE CABLE LC4 '93

58302095000

$38.25

99

Rear view mirror left

58012040000

$36.18
