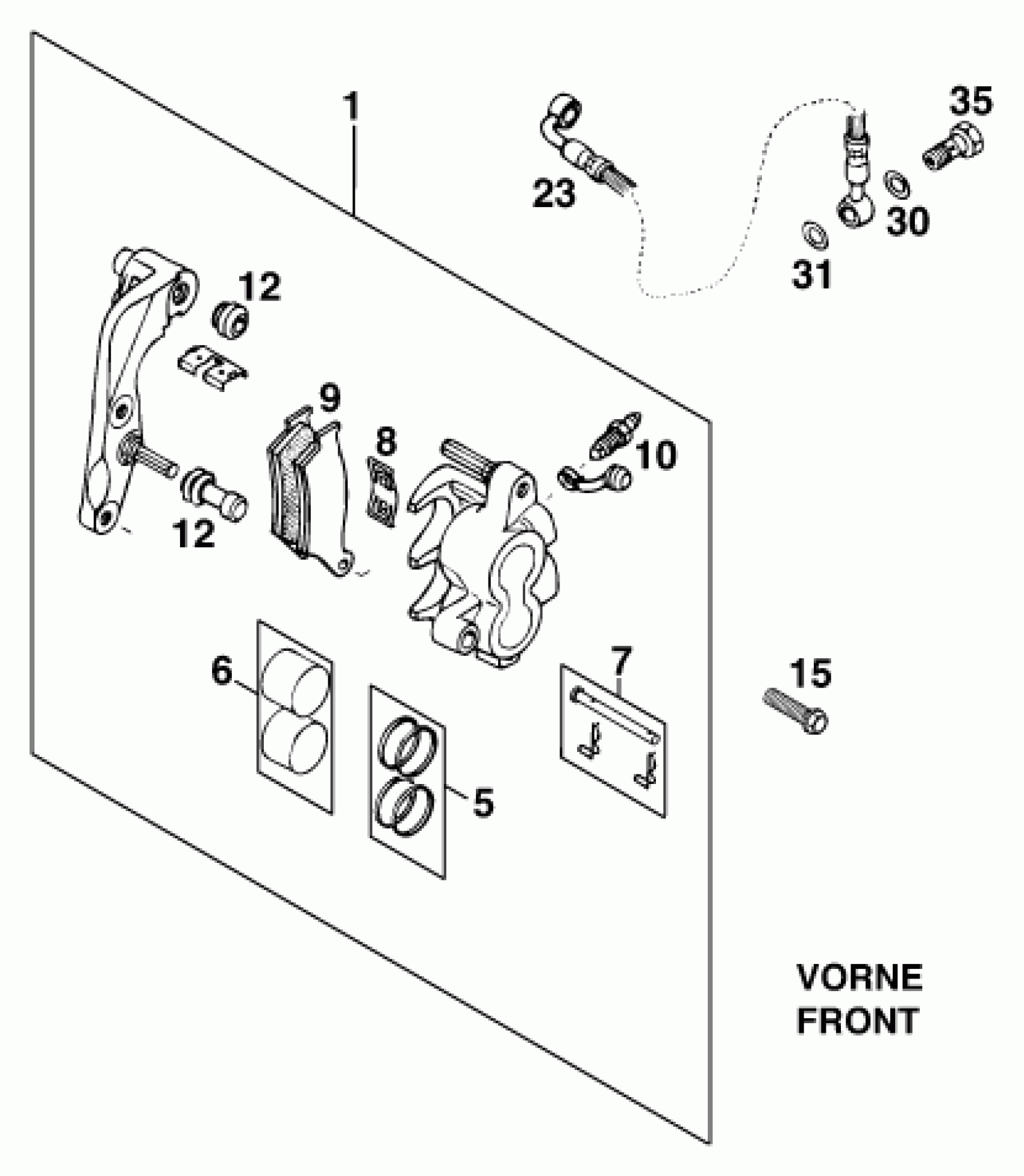

KTM 620 RXC-E <1996> FRONT BRAKE CALIPER Diagram

#

Description
Price

1

FRO.BRAKE CALIPER CPL. 2PISTON

54613201044

$219.44

5

REPAIR KIT 28MM

54613205000

$20.19

6

REPAIR KIT PISTON 28MM

54613206000

$46.18

7

BOLT CPL. 6X56

54613210100

$20.09

8

RETAINING PLATE

54613211000

Unavailable

9

BRAKE PAD SET FR. FERODID450

54613209044

$35.52

9

* BRAKE PAD SET SINTER

54613209144

Unavailable

10

BLEEDER SCREW M10X1

54513214000

$7.38

12

CUP SET SHORT

54613218000

$23.55

15

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

23

* BRAKE HOSE 1365MM MARZ. '96

58313029200

Unavailable

30

CU-SEAL RING DIN7603-10X16X1

42013226000

$2.05

31

CU-SEAL RING DIN7603-10X16X1,5

42013026000

$2.05

35

HOLLOW SCREW M10X1X19

50213025000

$6.54
