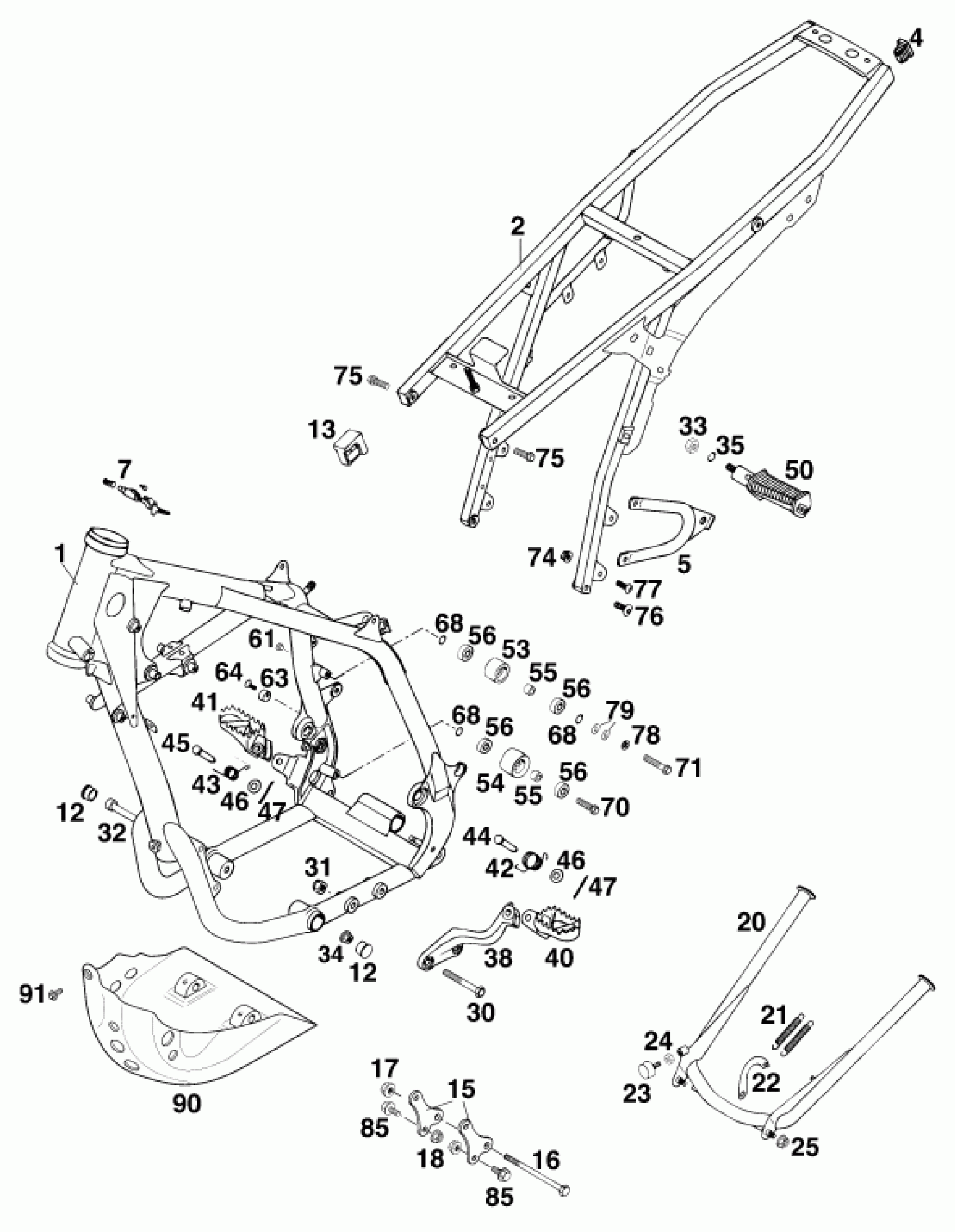

KTM 620 RXC-E <1996> FRAME Diagram

#

Description
Price

0

*FOOT REST BRACKET REAR R/S 93

58303103000

Unavailable

1

FRAME SC, RXC '96

58303001500

Unavailable

2

* SUB FRAME CPL.STEEL '96

58303002400

Unavailable

4

PLUG 12 X 17 MM

58303002090

$1.49

5

FOOTREST BRACKET REAR L/S

58303003000

Unavailable

7

STEERING HEAD LOCK

44003007000

Unavailable

12

PVC CAP D=22MM

71001012000

$3.08

13

TANK SUPPORT '93

58307015000

$5.47

15

ENGINE SUPPORT AGW '94

58303055000

$10.46

16

HH SCREW DIN0931-M10X110

0931101103

$1.82

17

flanged hex nut DIN 6927 M10 W

49009082000

$3.08

18

54310086000

Unavailable

20

CENTER STAND LONG 408MM '93

58303022000

$104.40

21

STAND SPRING SHORT

10003021000

$9.44

22

SPRINGBOW '93

58303027000

$24.47

23

STOP RUBBER M8

58303070000

$7.28

24

Hexagon nut DIN934 M8

0934080003

$2.05

25

54310086000

Unavailable

30

HH SCREW DIN0931-M10X60

0931100603

Unavailable

31

SELF LOCKING NUT DIN0985-M10

0985100003

$2.05

32

AH SCREW DIN0912-M10X160

0912101603

$6.72

33

HEXAGON NUT DIN0934-M10

0934100003

Unavailable

34

COLLAR NUT M10 WS=13

54630044000

$1.49

35

SPRING RING DIN0127-B10

0127100003

Unavailable

38

FOOTREST BRACKET L/S '93

58303038000

$35.18

40

FOOTREST L/S '

58303040000

$37.24

41

FOOTREST R/S '93

5460314000019

Unavailable

42

FOOTREST SPRING L/S '93

58303041000

$5.48

43

FOOTREST SPRING L/S & R/S

54603041000

$5.23

44

BOLT FOR FOOTREST

58303044000

$6.36

45

BOLT FOR FOOTREST 9,8 X 50

54603044000

$12.43

46

washer DIN 125 A 10.5

0125100003

$2.05

47

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

50

FOOTREST REAR L/S CPL.

49003250000

Unavailable

50

FOOTREST REAR R/S CPL.

49003350000

Unavailable

53

CHAIN ROLL D=30MM

50203053000

$6.72

54

CHAIN ROLL D=35MM

50203053100

Unavailable

55

BUSHING 8.2 X 12 X 6

74003021000

$3.08

56

Grooved ball bearing 608 2RS C

0625006087

$21.40

61

PLASTIC CAP SFL10

54403135000

$2.05

63

BRAKE LEVER STOP '93

58303063000

$5.98

64

FLAT H.SCREW DIN7991-M6X20

0991060203

$2.05

68

LOCK WASHER 8MM

36003014000

Unavailable

70

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

71

HH COLLAR SCREW M 8X35 WS=10

0015080353

$4.11

74

54310086000

Unavailable

75

HH COLLAR SCREW M 8X25 WS=10

0015080253

$2.05

76

SPROCKET SCREW-AH M 8X26

54510052000

Unavailable

77

AH OVAL H.SCREW DIN0170-M 8X20

0107080203

Unavailable

78

TOOTHLOCK WASHER DIN6797-J 8,4

0797080003

Unavailable

79

washer DIN 125 A -8.4

0125080003

Unavailable

85

HH COLLAR SCREW M 8X16 WS=13

49109481052

$3.08

90

% ENGINE PROTECTOR CPL. 4STR.'

58303005044

Unavailable

91

HH COLLAR SCREW M 6X13 WS=8

0014060133

$3.08
