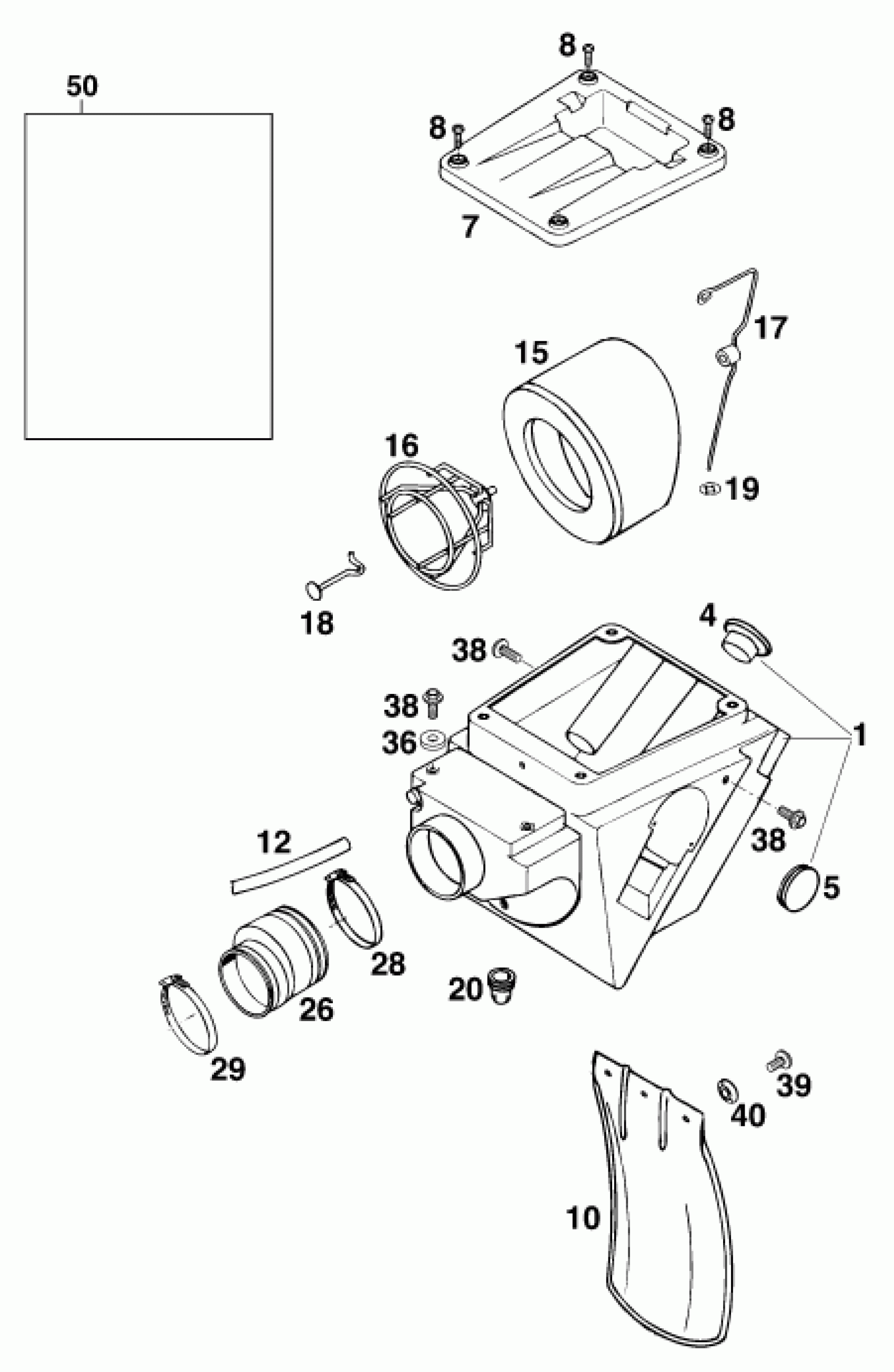

KTM 620 RXC-E <1996> AIR FILTER Diagram

#

Description
Price

1

FILTER BOX CPL. WITHOUT SLS'94

58306001100

Unavailable

4

PLUG 30 MMM

58306004000

Unavailable

5

PLUG 37MM

54606004000

$2.05

7

FILTER BOX COVER CLOSED

58306102000

$20.16

8

OVAL HEAD SCR. DIN7985-M 5X10

0985050103

$1.49

10

SPLASH PROTECT.FOR FILTER BOX

54606010000

$18.25

12

HOSE 10X14 PER METER

57005020001

Unavailable

15

AIRFILTER

56506015100

$28.13

16

% FILTER SUPPORT 4STR. '93

58306016000

Unavailable

17

FILTER BRACKET 4STR. '93

58306017000

Unavailable

18

HOOK FOR FILTER BRACKET

58306017050

$11.28

19

CLAMPING DISK KS4

54606019004

$2.05

20

RUBBER GRIMMET SLOTTED

50206020000

$5.23

26

CARBURETOR CONNECTION BOOT '98

58306026000

$26.74

28

HOSE CLAMP 60-80MM

55006028000

$4.11

29

HOSE CLAMP 50-70MM

51006027000

$6.07

36

STEEL WASHER 6,4X17X3

50232050001

Unavailable

38

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

39

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

40

BUCKET

72210079000

$3.00

50

CARBURETOR 36MM QWIK-SILVER II

58031701344

Unavailable

50

CARBURETOR 38MM QWIK-SILVER II

58031701444

Unavailable
