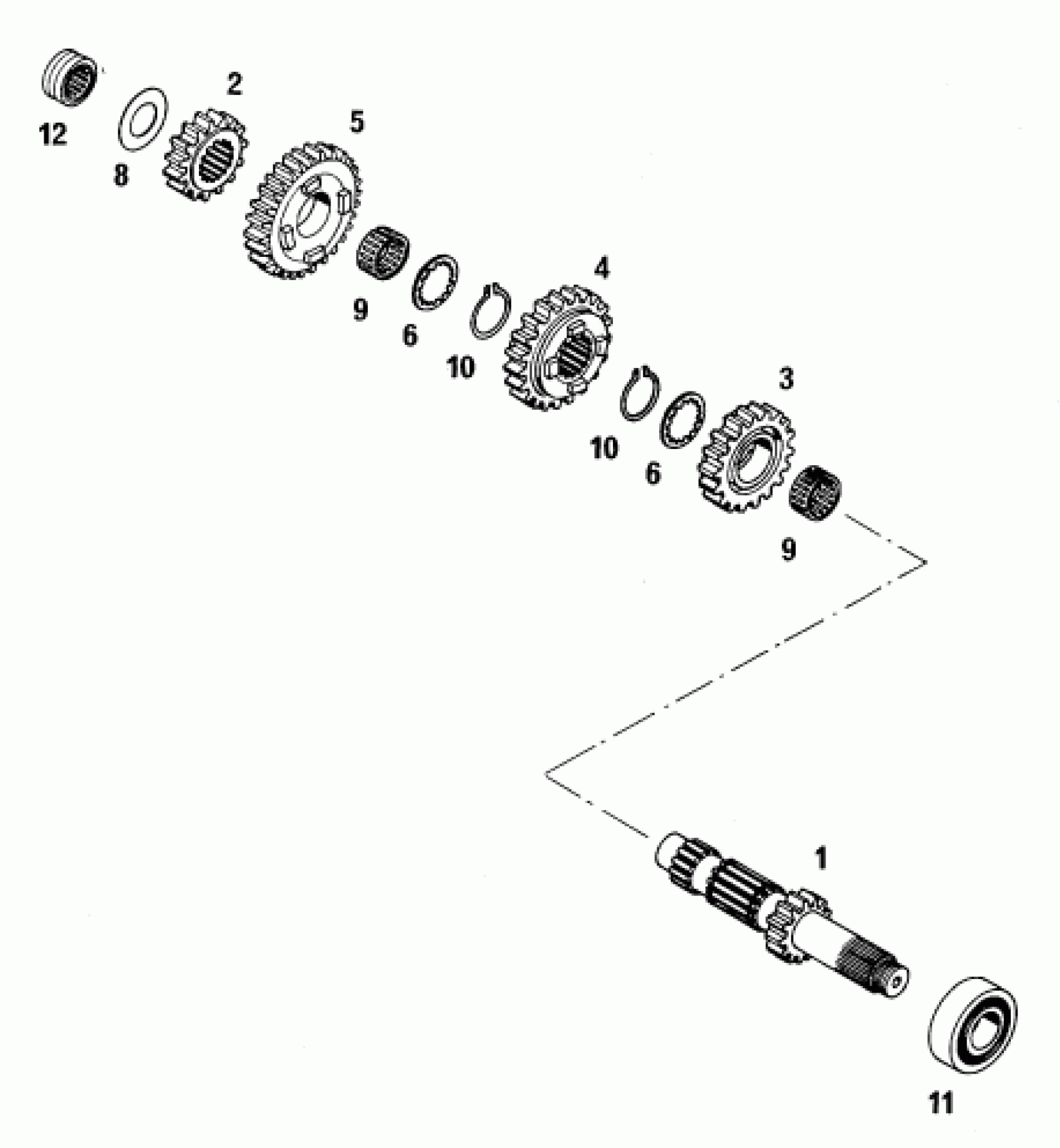

KTM 620 RXC-E <1995> TRANSMISSION I - MAIN SHAFT Diagram

#

Description

Price

1

* MAIN SHAFT 15-T '93

57533002000

Unavailable

2

SOLID GEAR 2.G 15-T (2G3)

56533010300

$118.52

2

2ND GEAR MAINSHAFT 16 T 2M4

56533110400

$88.70

3

3RD GEAR COUNTERSHAFT 18 T 3M3

56533004300

Unavailable

4

4TH GEAR MAINSHAFT 20 T 4M3

56533006300

Unavailable

5

5TH GEAR COUNTERSHAFT 27 T 5M3

56533008300

Unavailable

6

STOP DISK 22,7 X 32 X 1,5

56533016300

$5.98

8

STOP DISK 20,2 X 35 X 1

56533015000

Unavailable

9

NEEDLE BEAR. K22X26X13 DIVID

56533099000

$9.15

10

LOCK RING DIN0471-25X1,64SD

52033096000

$5.23

11

CYL.ROLL BEARING BC1-0076A

58533025000

$144.26

12

NEEDLE BEARING RNA 4902 KSE

56533093000

$21.96
