Description

Price

8

ADJUSTING NUT

54204009000

$78.09

9

* COUNTER NUT

54204109000

Unavailable

10

MONOSHOCK ''K4T94EK'' LC4'94

57604010100

Unavailable

10

% MONOSHOCK "K4T94EL"LC4'94

58304010200

Unavailable

10

% MONOSHOCK "K4T94S" LC4'94

58304010300

Unavailable

10

% MONOSHOCK "K4T94E/K4T94US"

58304010400

Unavailable

11

* SPRING WP 60-260

58304011060

Unavailable

11

* SPRING WP 62-260

58304011062

Unavailable

11

* SPRING WP 65-260

58304011065

Unavailable

20

BUSHING CPL. D=24MM B=24MM

54204020100

Unavailable

22

RING FOR SHOCK ABSORBER

58304017000

Unavailable

23

O-RING 32 X 8

58304090000

Unavailable

24

% O-RING CARRIER 14MM HIGH

58304018000

$61.79

86

SPECIAL SCREW M10X47 WS=17

56503086000

$4.11

93

SPECIAL SCREW M10X55 WS=17

56503093000

$4.11

94

washer DIN 125 A 10.5

0125100003

$2.05

95

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

124

HOOK WRENCH CPL.

54312024000

Unavailable

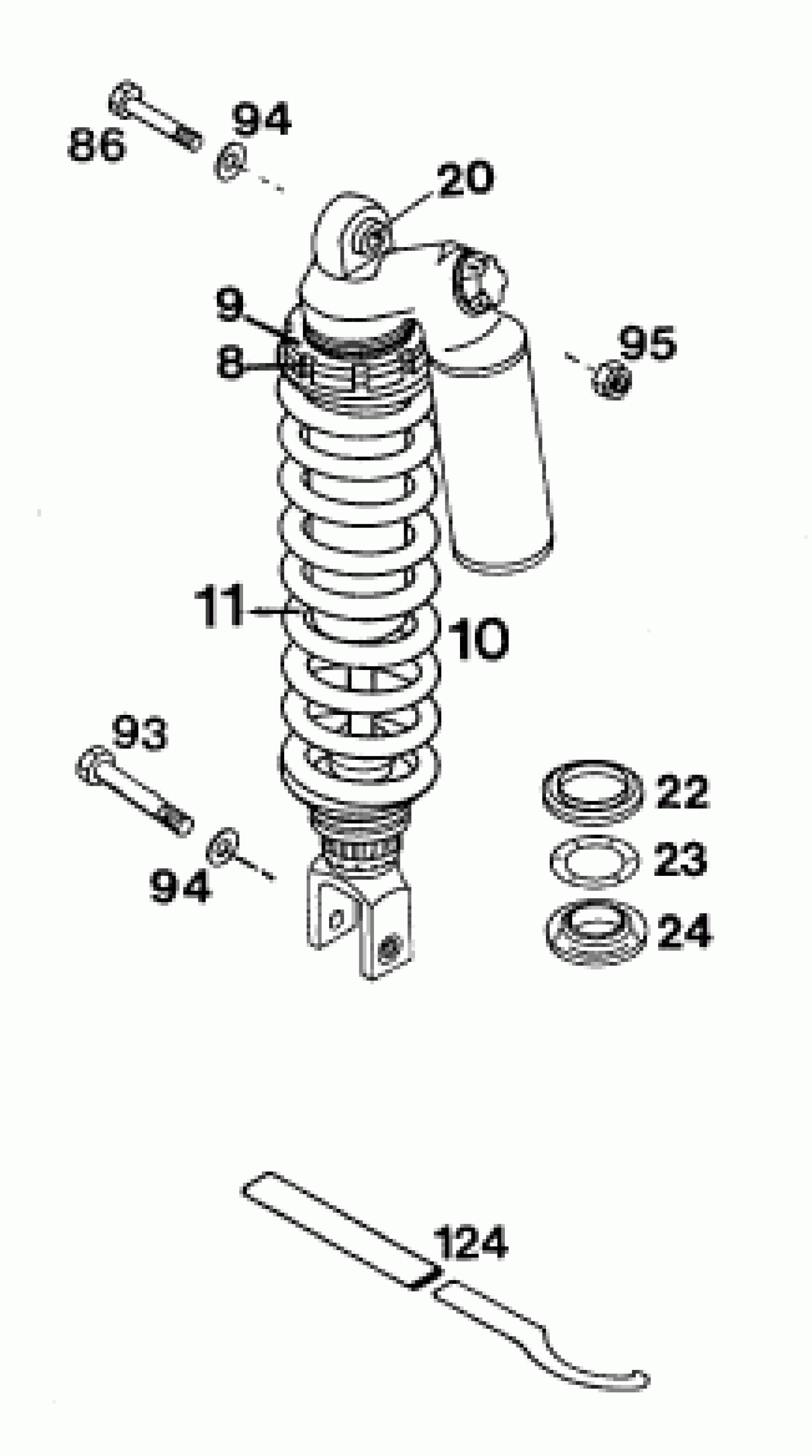

KTM 620 RXC-E <1995 SHOCK ABSORBER Diagram

ADJUSTING NUT

* COUNTER NUT

MONOSHOCK ''K4T94EK'' LC4'94

% MONOSHOCK "K4T94EL"LC4'94

% MONOSHOCK "K4T94S" LC4'94

% MONOSHOCK "K4T94E/K4T94US"

* SPRING WP 60-260

* SPRING WP 62-260

* SPRING WP 65-260

BUSHING CPL. D=24MM B=24MM

RING FOR SHOCK ABSORBER

O-RING 32 X 8

% O-RING CARRIER 14MM HIGH

SPECIAL SCREW M10X47 WS=17

SPECIAL SCREW M10X55 WS=17

washer DIN 125 A 10.5

SELF LOCKING NUT M10 CU WS=14

HOOK WRENCH CPL.
