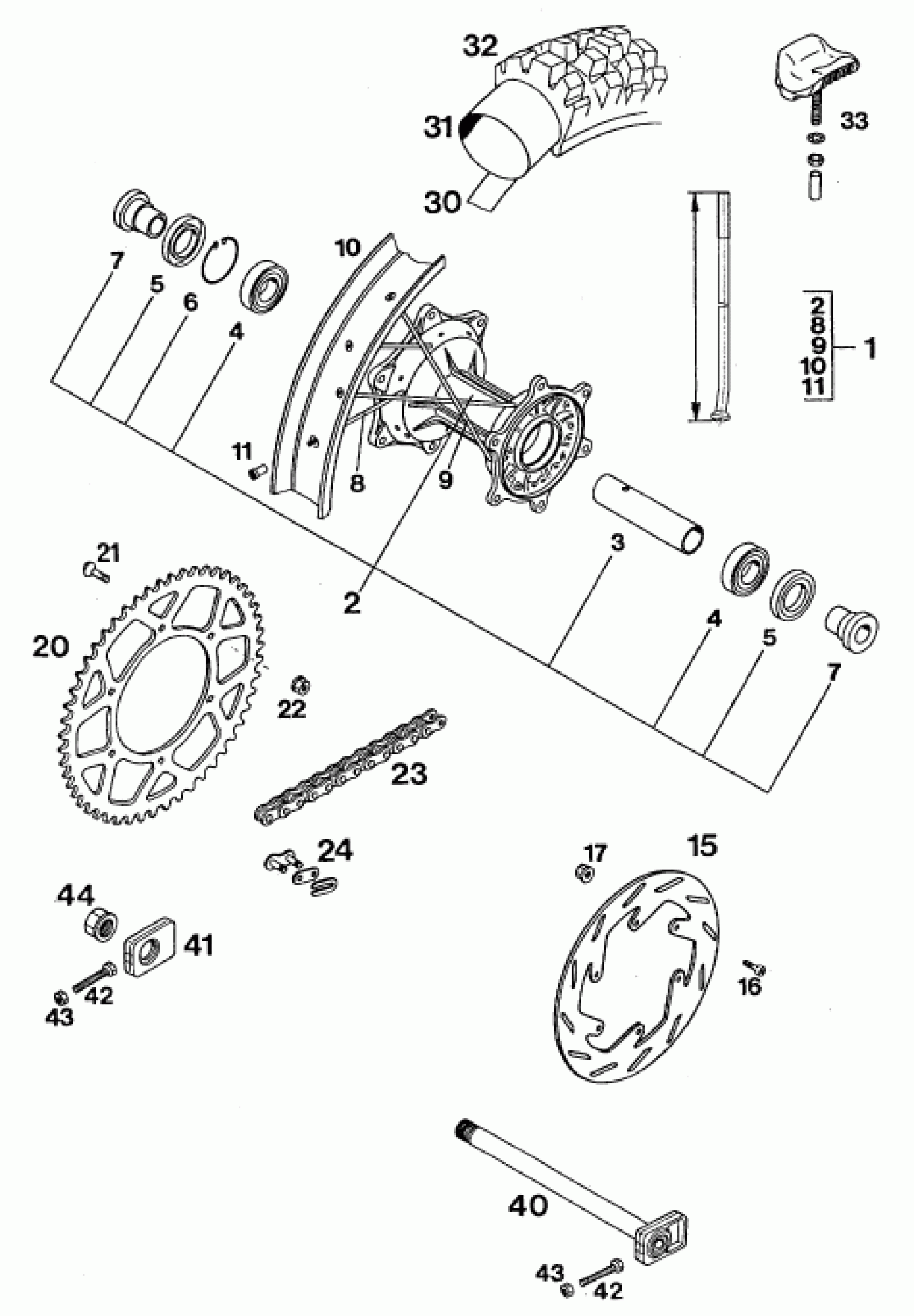

KTM 620 RXC-E <1995> REAR WHEEL Diagram

#

Description
Price

1

REAR WHEEL 2,50X18'' DID

58310001044

$648.96

2

58310010044

Unavailable

3

BEARING SPACER TUBE L=98,3MM

54610411100

Unavailable

4

Grooved ball bear. 6205-2RSHC3

0625062052

$30.85

5

SHAFT SEAL RING 32X52X7 B

0760325272

$16.54

6

BUSHING FOR HUB

54610016000

$32.90

7

BUSHING FOR REAR DAMPED HUB

54610416300

$20.09

8

SPOKE M5X223-10G 18''

54610471000

$5.23

9

SPOKE M5X198-10G 18''

56510171600

Unavailable

10

REAR RIM 2,50X18'' DID

58010470100

$182.01

11

STEEL NIPPLE M5

56509072000

Unavailable

15

REAR BRAKE DISK 220MM COUNTERS

58010060600

$183.53

16

AH SCREW DIN6912-M 6X20 8.8

0984060203

$2.05

17

SELF LOCKING NUT M6

56509064000

Unavailable

20

REAR SPROCKET 52 T

54610051052

Unavailable

20

REAR SPROCKET 40-T

58310151040

$63.10

20

REAR SPROCKET 45-T

58310151045

$50.58

20

REAR SPROCKET 48-T

58310151048

Unavailable

20

REAR SPROCKET 50-T

58310151050

$56.00

21

SPROCKET SCREW-AH M 8X26

54510052000

Unavailable

22

54310086000

Unavailable

23

* O-RING CHAIN 5/8X1/4 PER MET

53010065001

Unavailable

24

MASTER LINK 5/8X1/4'' O-RING

53010066000

Unavailable

25

SPROCKET SUPPORT CPL.

58310050044

Unavailable

26

BUSH. F.SPROCKETSUPPORT L=25MM

54610417300

$17.38

27

Rubber damping block 91

54610459000

$8.03

28

GR. BALL BEARING 3205B-2RSRTNG

0625032057

$74.67

29

SEAL WASHER 3205 AV

54610018000

$9.34

30

52010073000

Unavailable

31

HOSE 4.00/4.50/120/130-18''

54010075000

Unavailable

32

* TYRE 140/80-18" 70R MCE

50210074500

Unavailable

32

* TYRE 120/90-18" 65M UNICROSS

54610074400

Unavailable

32

* TIRE 120/80-18" 62R MT 70

57510074000

Unavailable

32

* TIRE 4.50-18" NHS 70M MT 16

58010074100

Unavailable

32

TIRE 130/80-18" 66R MT 70

58310074000

Unavailable

32

58310074200

Unavailable

33

RIM LOCK VM4 (2.50'')

56410100100

Unavailable

39

Plug SFL16

50210086000

$3.08

40

WHEEL SPINDLE REAR CPLL=264MM

50210085044

$70.38

41

% CHAIN TENSIONER 125/500

56510084000

Unavailable

42

HH SCREW DIN0933-M 8X40 INOX

0933080404

$1.76

43

Hexagon nut DIN934 M8

0934080003

$2.05

44

HEXAGON NUT M20X1,5

54310099000

Unavailable

50

* BR CALIP.SUPP.BREMBO "X"'90

58110040500

Unavailable

51

COVER BRAKE DISC REAR

58113081000

$27.29

52

AH SCREW DIN0912-M 6X12

0912060123

$3.08

53

TOOTH LOCK WASH. DIN6797-A 6,4

0797060003

$1.49

54

Washer DIN9021-A 6.4

0021060003

$2.05
