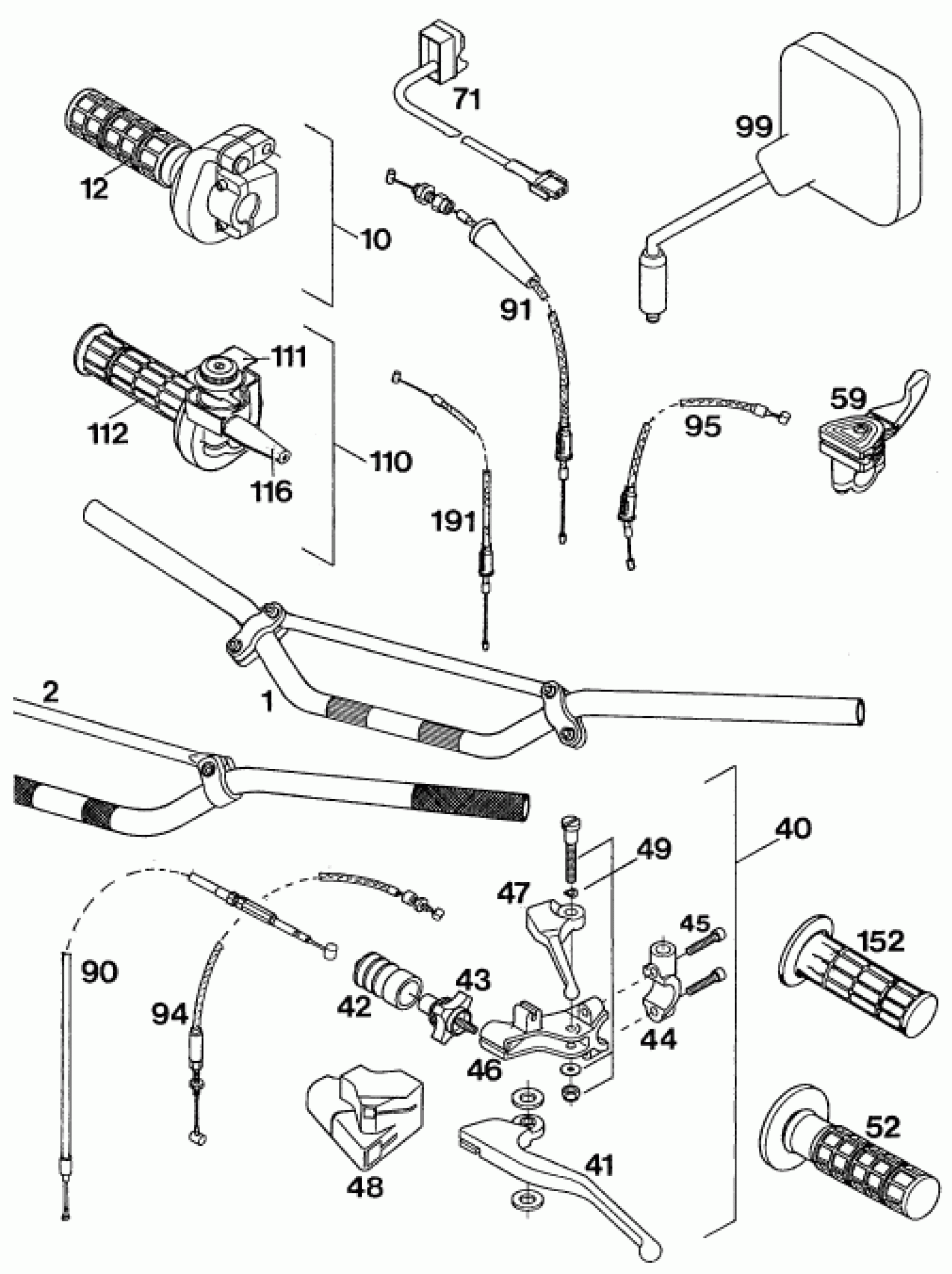

KTM 620 RXC-E <1995 HANDLEBAR, CONTROLS Diagram

Rear view mirror right

58012140000

Unavailable

ALU-HANDLEBAR 125-612 CPL '92

56502001144

$80.71

ALU-HANDLEBAR '95

50202001000

$62.49

THROTTLE GRIP CPL.DOMINO '93

58302010000

$89.51

TWIST GRIP COVER DOMINO

58302003000

$27.76

CLUTCH LEVER ASSY CPL.DOMINO

58302040100

$82.83

CLUTCH LEVER LOOSE

58302055000

Unavailable

BELLOWS CLUTCH LEVER '91

54602126000

$10.62

ADJUSTMENT SCREW CPL.M7

58302043000

$22.06

CLAMP MIRROW M10x1,25

58302044000

$13.36

AH SCREW DIN0912-M 6X25

0912060253

$2.05

JOINT DOMINO

58302023000

$49.55

DECOMPRESSION LEVER LOOSE

58302047000

$12.05

PROTECTING COVER

58302048000

$8.01

LEVER SCREW CPL.

58302049000

$7.00

FIXED GRIP DOMINO '93

58302052000

$27.76

CHOKE LEVER DOMINO '93

58302050000

$20.61

SHORT CIRCUIT SWITCH 550MM '94

58311071100

$30.67

CLUTCH CABLE 125/LC4 TSK '

50202090200

Unavailable

THROTTLE CABLE DOMINO/DELLO.36

57502091000

Unavailable

THROTTLE CABLE DOMINODELLORTO

58302091000

$21.24

DECOMPRESSION CABLE LC4 '93

58302094000

$29.35

CHOKE CABLE LC4 '93

58302095000

$38.25

Rear view mirror left

58012040000

$36.18

THROTTLE GRIP CPL.MAG.312 BL

58002010000

Unavailable

* COVER WITH KNURLED SCREW

58002011000

Unavailable

TWIST GRIP COVER LONG BLACK

56502003000

$12.04

PROTECTION CAP

54002016000

$10.65

FIXED GRIP MAGURA LONG BLACK

56502052000

$16.72

*THROTTLE CABLE MAGURA/DELLO36

57502191000

Unavailable

THROTTLE CABLE MAGURA/DELLORTO

58002091100

$21.49
