FRONT FORK, TRIPLE CLAMP

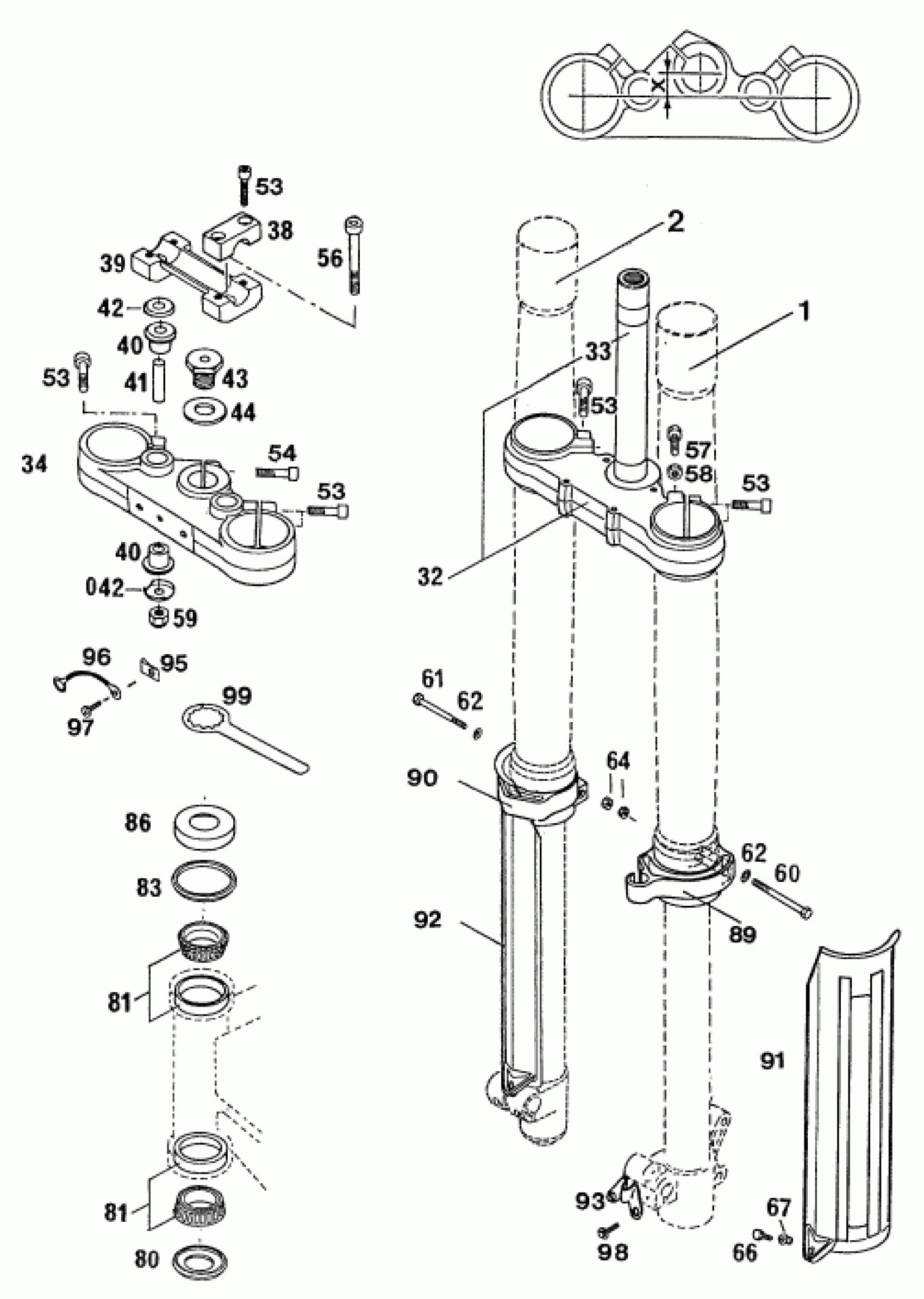

KTM 620 RXC-E <1995 FRONT FORK, TRIPLE CLAMP Diagram
#
1
FORK LEG L/S K4T94EK IBS '94
57601002100
Unavailable
1
FORK LEG L/S K4T94S IBS '94
58301002200
Unavailable
1
FORK LEG L/S K4T94E/K4T94US
58301002300
Unavailable
2
FORK LEG R/S K4T94EK IBS 4-STR
57601102100
Unavailable
2
FORK LEG R/S K4T94S IBS '94
58301102200
Unavailable
2
FORK LEG R/S K4T94E/K4T94US'94
58301102300
Unavailable
32
BOT.TRIPLE CLAMP X=18MM/D=57MM
54601032044
$275.63
32
TRIPLE CLAMP BOTTOM CPL. X=22
58001032744
Unavailable
33
FORK TUBE L=244 '91
50101033100
$85.17
34
TOP TRIPLE CLP X=18MM/D=54MM
54601034100
Unavailable
34
*TRIPLE CLAMP TOP X=22MM/D=54M
58001034700
Unavailable
38
56401038000
Unavailable
39
HANDLEBAR SUPPORT
56401039000
Unavailable
40
rubber bushing
56401040000
$5.23
41
SPACER TUBE 10,2X12X44
56401041100
$5.88
42
washer 10.5x32x2
56401042000
$4.11
42
WASHER 10,5X31
56401142000
$4.11
43
HH SCREW M20X1,5
56401043000
$19.86
44
WASHER 21X38X3
56401044000
$5.00
53
AH SCREW DIN0912-M 8X30
0912080303
$2.05
54
* AH SCREW DIN7984 M8x30
0984080302
Unavailable
56
AH SCREW DIN7984-M10X70
0984100702
Unavailable
57
HH SCREW DIN0933-M 7X20
0933070203
$1.73
58
HEXAGON NUT DIN0934-M 7
0934070003
$1.49
59
SELF LOCKING NUT DIN0985-M10
0985100003
$2.05
60
HH COLLAR SCREW M 5X40 WS
0015050403
$1.49
61
HH SCREW DIN931 M5X45
0931050453
$2.05
62
WASHER DIN0125-A 5,3
0125050003
$1.49
64
Self locking nut DIN 985 M5
0985050003
$2.05
66
HH SCREW DIN0933-M 5X16
0933050163
$1.49
67
COLLAR BUSHING F.SLIDING PROT.
54601094100
$4.06
80
O-RING SUPPORT W. SEALING LIP
54601084100
$19.35
81
TAPERED ROLLER BEARING CPL.
54201081000
$51.04
83
STEARING HEAD GASKET TOP
54601184000
$7.10
86
STEERING HEAD COVER
54201086000
$8.50
89
PROTECTOR GUIDE L/S WHITE
54601090000
$15.76
90
PROTECTOR GUIDE R/S WHITE
54601190000
$15.01
91
SLIDING PROTECTOR L/S WHITE
54601091000
$19.79
92
* SLIDING PROTECTOR R/S WHITE
54601191000
Unavailable
93
CLAMP FOR BRAKE HOSE '94
50201090000
$4.22
95
SNAP NUT
31005042000
$1.73
96
GROUND CABLE
57101008000
Unavailable
97
SHEET MET.SCR.DIN7981 4,8x19
0981480193
Unavailable
98
HH COLLAR SCREW M 7X25 WS=8
0015070253
$2.73
99
RING WRENCH WS=32
54212035000
Unavailable
