Description

Price

0

Cable tie 200/4.6mm black

44011076200

$1.49

1

T-CONNECTOR FOR FUEL LINE

58007015000

$1.49

2

CLAMP YDNAC 10128 12MM

58031005000

$3.08

3

YDNAC-CLAMP 10107 10MM

58007117000

$3.08

4

FUEL HOSE VITON 7X2MM

58007016001

$38.50

5

FUEL HOSE CPL.

58312099065

Unavailable

6

FUEL FILTER ELEMENT

58312099052

$16.85

7

PVC-HOSE 5 X 8 MM

31007007001

Unavailable

8

VACUUM CONNECTION M 6X1

58336020090

$6.63

10

HOSE ID 7,5 PER METER

54435024001

Unavailable

20

FUEL PUMP MIKUNI RALLYE

58312093000

$90.16

21

fuel pump braket

58312095100

Unavailable

24

Self locking nut DIN 985 M5

0985050003

$2.05

30

CABLE TIE 300/4,8MM BLACK

44011076305

$2.05

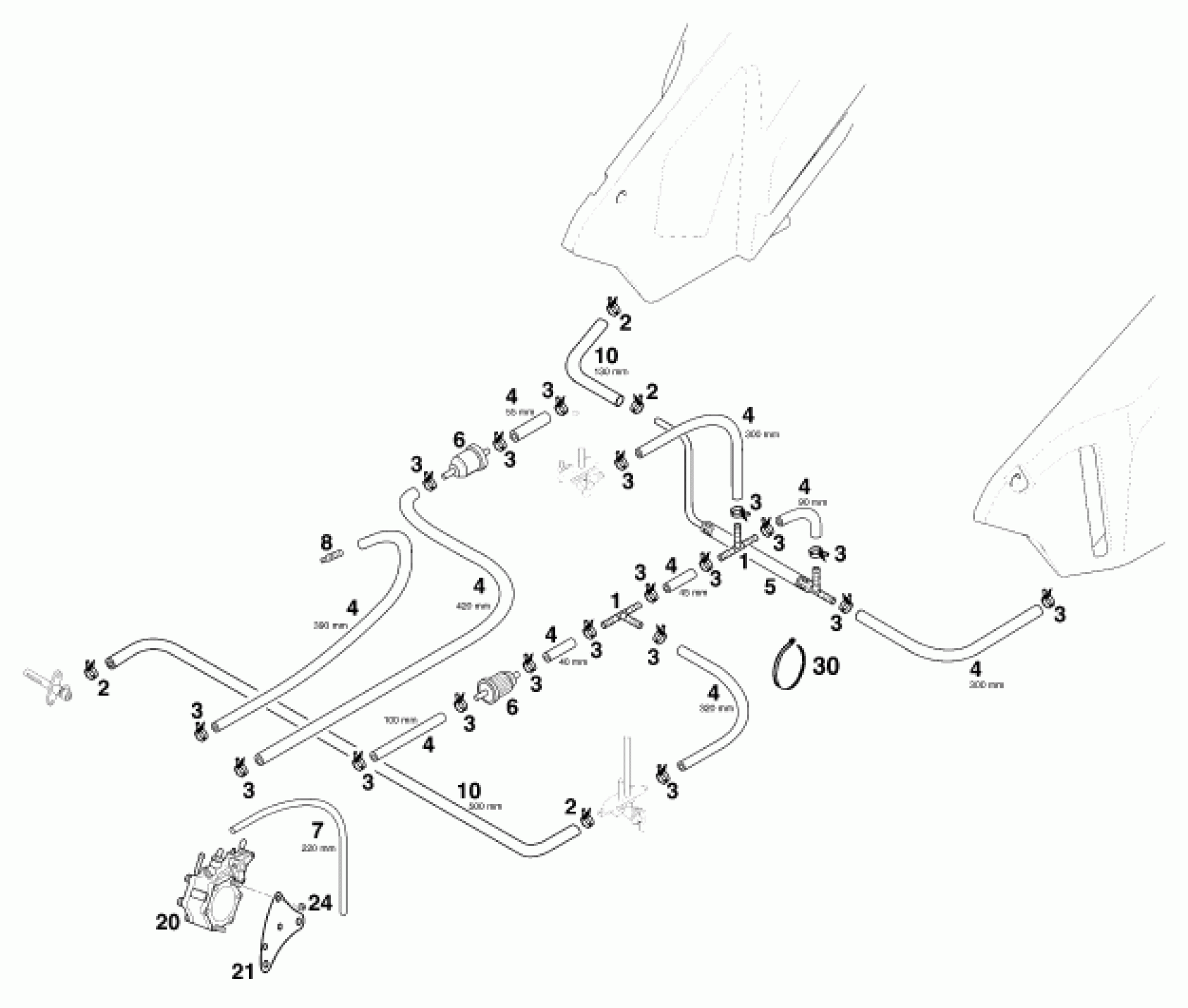

KTM 620 LC4 RALLYE '97 <1997 FUEL PUMP Diagram

Cable tie 200/4.6mm black

T-CONNECTOR FOR FUEL LINE

CLAMP YDNAC 10128 12MM

YDNAC-CLAMP 10107 10MM

FUEL HOSE VITON 7X2MM

FUEL HOSE CPL.

FUEL FILTER ELEMENT

PVC-HOSE 5 X 8 MM

VACUUM CONNECTION M 6X1

HOSE ID 7,5 PER METER

FUEL PUMP MIKUNI RALLYE

fuel pump braket

Self locking nut DIN 985 M5

CABLE TIE 300/4,8MM BLACK
