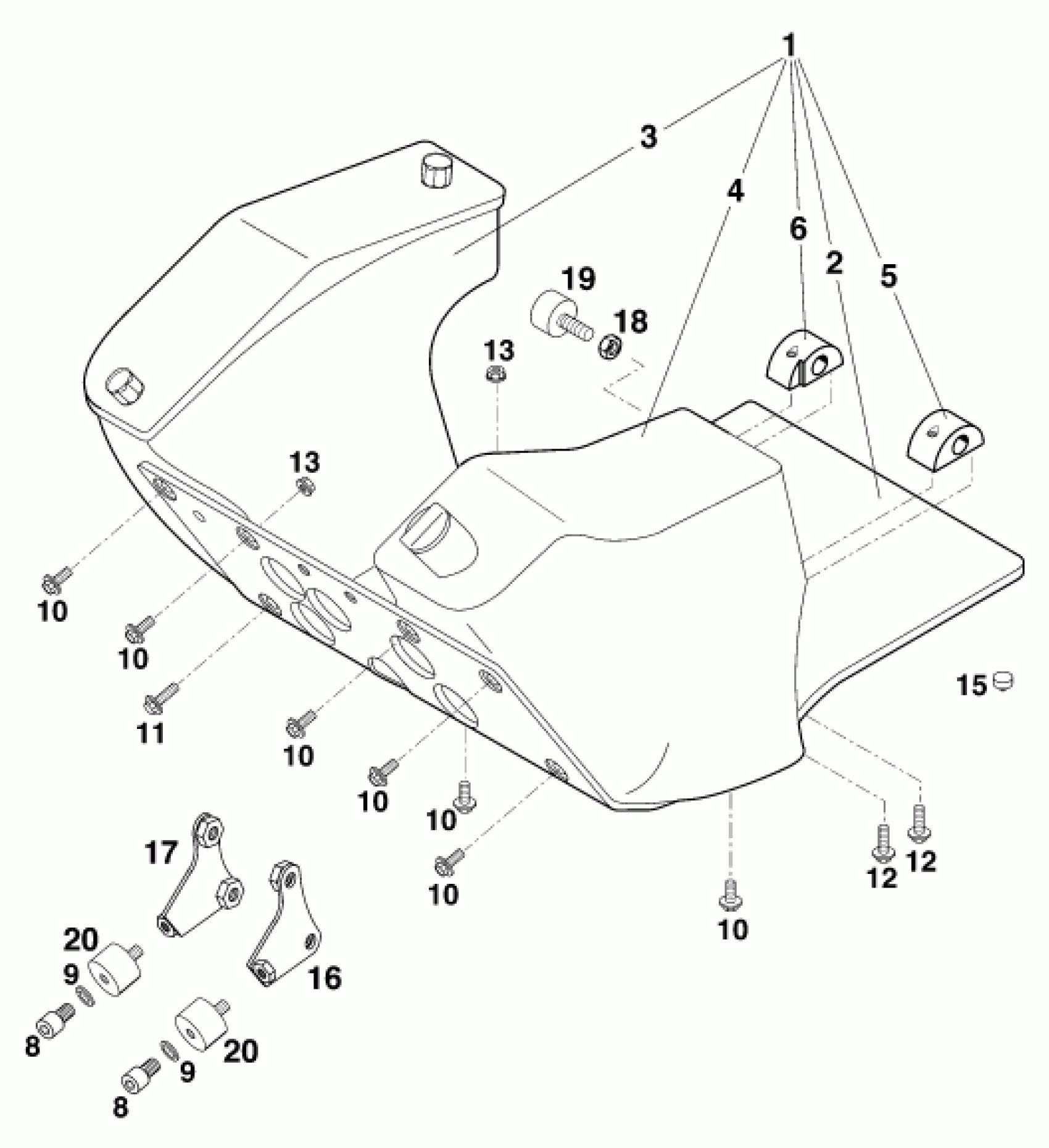

KTM 620 LC4 RALLYE '97 <1997> ENGINE GUARD Diagram

#

Description
Price

1

ENGINE PROTECTOR CPL.RALLYE'97

58512099044

Unavailable

2

58512099050

Unavailable

3

TOOL BOX FOR RALLYE '97

58512099051

Unavailable

4

WATER CANISTER FOR RALLYE '

58512099052

Unavailable

5

58003012100

Unavailable

6

ENGINE PROTECTOR BRACKET '97

58003012200

$20.47

8

AH SCREW DIN0912-M 8X16

0912080163

$2.05

9

TOOTHLOCK WASHER DIN6797-J 8,4

0797080003

$1.49

10

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

11

HH COLLAR SCREW M 6X20 WS=8

0014060203

$2.05

12

HH COLLAR SCREW M 6X25 WS=8

0014060253

$2.05

13

SELF LOCKING NUT M6

56509064000

Unavailable

15

RUBBER BUFFER

54308042000

Unavailable

16

BRACKET F.ENGINE PROTECTOR L/S

58512094000

Unavailable

18

Hexagon nut DIN934 M8

0934080003

$2.05

19

STOP RUBBER M8

58303070000

$7.28

20

RUBBER GROMMET 30X20-M8X12

51005062100

$12.89
