Description

Price

1

FRONT HUB CPL. SILVER GS'93

5460901004490

$191.02

1

FRONT WHEEL KPL. 3,5X17''

58409001144

$394.70

3

BEAR.SPACER TUBE 17,5X22X64,5

54609011000

$9.12

4

GR.BALL BEAR. 6003-2RSH/C3HMTF

0625060037

$30.19

5

GR.BALL BEAR. 6203-2RSHC3HMTF

0625062032

$17.94

6

SHAFT SEAL RING 25X35X7 BTSL

0760253570

$16.79

7

SPACER RING 17X25X7,5

54609051000

Unavailable

8

WASHER 40 X 52 X 0,15 '92

58111054000

$1.57

9

SHAFT SEAL RING 40X52X7 B

0760405270

$11.68

10

DRIVING DOG F.SPEEDOM.DRIVE'92

58111053100

$6.00

14

SPOKE M5X174-13,5G 17''

58309071100

$4.11

15

SPOKE M5X177-13,5G 17''

58309171100

$5.23

16

SPOKE NIPPLE M5-TA (8X21MM)

58309072000

$2.05

17

FRONT RIM 3,5X17''

58409070000

$161.84

20

58410001144

Unavailable

21

58310010044

Unavailable

22

BEARING SPACER TUBE L=98,3MM

54610411100

Unavailable

23

Grooved ball bear. 6205-2RSHC3

0625062052

$30.85

24

SHAFT SEAL RING 32X52X7 B

0760325272

$16.54

25

BUSHING FOR HUB

54610016000

$32.90

26

BUSHING FOR REAR DAMPED HUB

54610416300

$20.09

27

REAR RIM 4,25X17''

58410070000

$195.04

28

SPOKE M5X199-16G 17''

58310171100

$3.48

29

SPOKE M5X186-26G 17''

58310071100

$3.48

33

DUMMY RIVET 4,8X 8,0 NIRO

0011480802

$3.08

34

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

$4.57

40

SPEEDOME.DRIVE 748208(2,66)'94

58311052000

$40.50

43

CHAIN DAMPER SHEET DUKE'94

58030047615

$17.54

48

clip nut M6

54603048100

$4.11

60

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

61

Washer DIN9021-A 6.4

0021060003

$2.05

62

SPRING WASHER DIN0137-B 6

0137060000

Unavailable

63

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

64

SELF LOCKING NUT M6

56509064000

Unavailable

65

BUSHING 7X12X15,4

54305069000

$4.11

66

SILENCER BRACKET CPL. SHORT'96

58305165244

$23.81

67

damp. component silicone grey

54305068100

$8.31

68

EXHAUST BRACKET RUBBER BLACK

54605068000

$6.54

69

BUSHING 7,5X12X28X7,8 '96

54605069000

$6.07

81

% SILENCER THROTTLED SXC'

58305081000

Unavailable

81

% SILENCER UNTHROTTLED SXC'

58305081100

Unavailable

82

END CAP CPL. SXC THROTTLED '

58305081003

Unavailable

82

END CAP CPL.SXC UNTHROTTLED'

58305081004

Unavailable

83

O-RING 82,14X3,53 SILICONE

0770223601

$8.87

84

STUFFING YARN REAR 90 GRAMM'98

58305078002

$35.68

85

STUFFINGYARN FRT 400GRAMM'98

58305078000

$82.08

99

% DECAL SET 620 COMP.S.MOTO '

58408099700

Unavailable

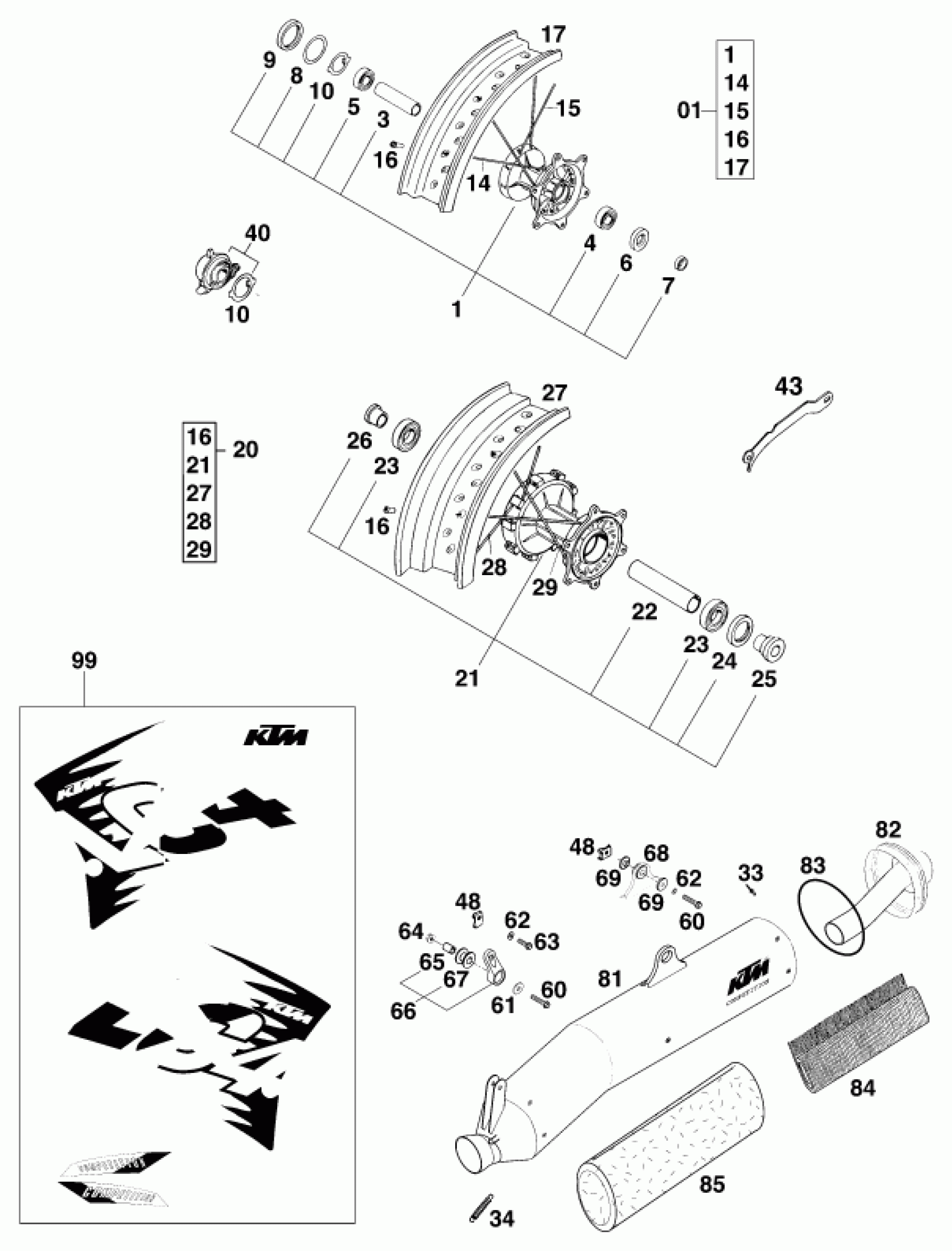

KTM 620 LC-4 SUPER-MOTO 99 <1999 NEW PARTS Diagram

FRONT HUB CPL. SILVER GS'93

FRONT WHEEL KPL. 3,5X17''

BEAR.SPACER TUBE 17,5X22X64,5

GR.BALL BEAR. 6003-2RSH/C3HMTF

GR.BALL BEAR. 6203-2RSHC3HMTF

SHAFT SEAL RING 25X35X7 BTSL

SPACER RING 17X25X7,5

WASHER 40 X 52 X 0,15 '92

SHAFT SEAL RING 40X52X7 B

DRIVING DOG F.SPEEDOM.DRIVE'92

SPOKE M5X174-13,5G 17''

SPOKE M5X177-13,5G 17''

SPOKE NIPPLE M5-TA (8X21MM)

FRONT RIM 3,5X17''

BEARING SPACER TUBE L=98,3MM

Grooved ball bear. 6205-2RSHC3

SHAFT SEAL RING 32X52X7 B

BUSHING FOR HUB

BUSHING FOR REAR DAMPED HUB

REAR RIM 4,25X17''

SPOKE M5X199-16G 17''

SPOKE M5X186-26G 17''

DUMMY RIVET 4,8X 8,0 NIRO

TEN.SPRING L=62MM EY.MOVEABLE

SPEEDOME.DRIVE 748208(2,66)'94

CHAIN DAMPER SHEET DUKE'94

clip nut M6

HH COLLAR SCREW M 6X30 SW=8

Washer DIN9021-A 6.4

SPRING WASHER DIN0137-B 6

HH COLLAR SCREW M 6X20 WS=8

SELF LOCKING NUT M6

BUSHING 7X12X15,4

SILENCER BRACKET CPL. SHORT'96

damp. component silicone grey

EXHAUST BRACKET RUBBER BLACK

BUSHING 7,5X12X28X7,8 '96

% SILENCER THROTTLED SXC'

% SILENCER UNTHROTTLED SXC'

END CAP CPL. SXC THROTTLED '

END CAP CPL.SXC UNTHROTTLED'

O-RING 82,14X3,53 SILICONE

STUFFING YARN REAR 90 GRAMM'98

STUFFINGYARN FRT 400GRAMM'98

% DECAL SET 620 COMP.S.MOTO '
