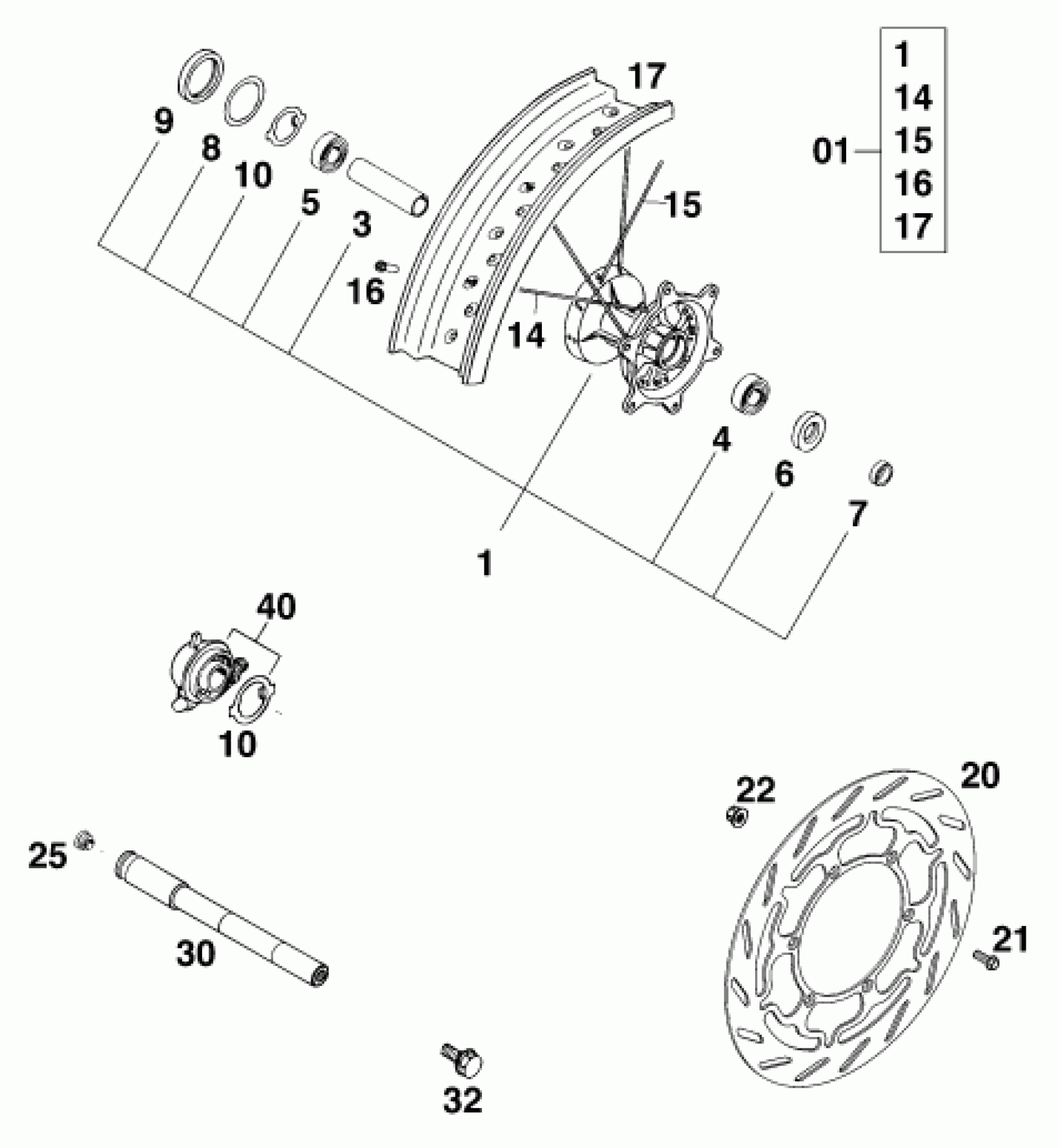

KTM 620 LC-4 SUPER-MOTO 99 <1999> FRONT WHEEL Diagram

#

Description
Price

1

FRONT HUB CPL. SILVER GS'93

5460901004490

Unavailable

1

58309001144

Unavailable

3

BEAR.SPACER TUBE 17,5X22X64,5

54609011000

Unavailable

4

GR.BALL BEAR. 6003-2RSH/C3HMTF

0625060037

Unavailable

5

GR.BALL BEAR. 6203-2RSHC3HMTF

0625062032

Unavailable

6

SHAFT SEAL RING 25X35X7 BTSL

0760253570

Unavailable

7

SPACER RING 17X25X7,5

54609051000

Unavailable

8

WASHER 40 X 52 X 0,15 '92

58111054000

Unavailable

9

SHAFT SEAL RING 40X52X7 B

0760405270

Unavailable

10

DRIVING DOG F.SPEEDOM.DRIVE'92

58111053100

Unavailable

14

SPOKE M5X174-13,5G 17''

58309071100

Unavailable

15

SPOKE M5X177-13,5G 17''

58309171100

Unavailable

16

SPOKE NIPPLE M5-TA (8X21MM)

58309072000

Unavailable

17

% RIM FRONT 3,5X17" AKRONT

58309070000

Unavailable

20

BRAKE DISK FRONT D=300MM '96

58309060100

Unavailable

21

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

22

SELF LOCKING NUT M6

56509064000

Unavailable

25

PLUG SFL13

55009086000

Unavailable

30

FRONT AXLE L=235MM

50309081000

Unavailable

32

HH COLLAR SCREW M10X20 WS=17

49032011000

Unavailable

40

SPEEDOME.DRIVE 748208(2,66)'94

58311052000

Unavailable
