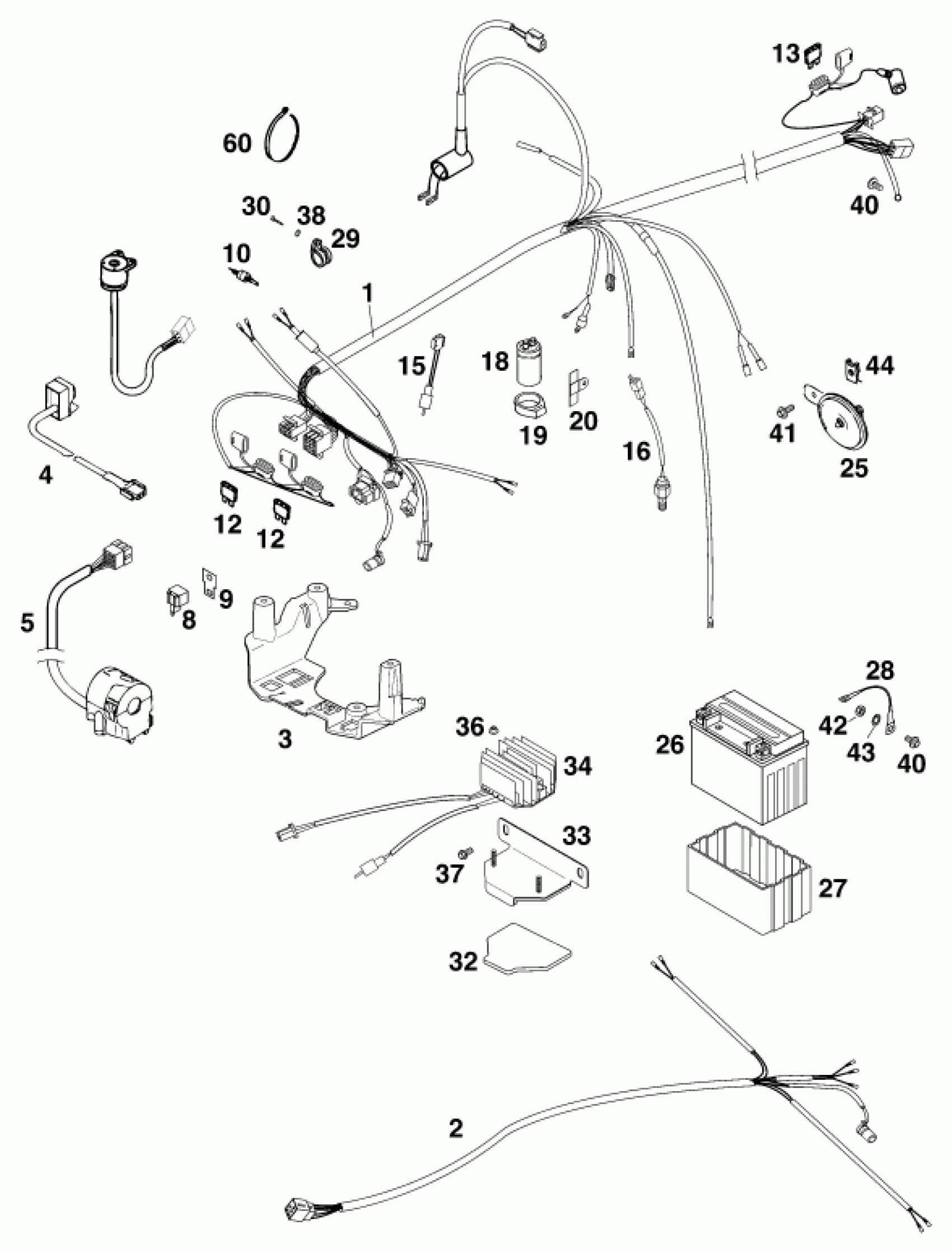

KTM 620 LC-4 Competition <1999 WIRING HARNESS Diagram

#

Description
Price

0

Cable tie 200/4.6mm black

44011076200

Unavailable

1

WIRING HARNESS 620 COMP. '98

58311175700

Unavailable

2

WIRING HARNESS REAR LC4 '98

58411176100

$17.67

3

BRACKET FOR PLUGS LC4 '98

58411083100

$5.68

4

SHORT CIRCUIT SWITCH 550MM '94

58311071100

$30.67

5

HEAD LIGHT SWITCH CEV LC4 '98

58411070000

Unavailable

8

FLASHER UNIT 97

44611207200

$49.83

9

BRACKET FOR FLASHER RELAY

58211031100

$5.70

10

FRONT BRAKE LIGHT SWITCH

51011050000

$19.91

12

FUSE 10 A

58011109010

$2.05

13

FUSE 20 A

58011109020

$1.49

15

WIRING FOR SEM-KOKUSAN COMP.

58311019000

Unavailable

16

BRAKE LIGHT SWITCH REAR '98

50311051100

$36.92

18

CONDENSATOR 25V, 10.000 MF

49111435100

$57.59

19

CAPACITOR BRACKET

54511048000

$4.33

20

BRACKET FOR CAPACITOR

54611448000

Unavailable

25

DC HORN 12V NIKKO

54511060100

Unavailable

26

BATTERY 12V 8AH '96

58411053000

$214.01

27

BATTERY COVER 96

58411053050

$22.65

28

GROUND CABLE D=6MM L=140MM '97

58411097100

$8.97

29

CLAMP RSGU 15/12

49007439000

$5.23

30

SHEET MET.SCR.DIN7981- 4,8X13

0981480133

Unavailable

32

METAMOLL FOR BATTERY BRACKET

58411055150

$4.20

33

BATTERY BRACKET LC4-E/DUKE'97

58411055100

$18.67

34

VOLT.REGULATOR-RECTIFIER 12V

58411034100

$214.48

36

SELF LOCKING NUT M6

56509064000

Unavailable

37

HH COLLAR SCREW M 6X10 WS=8

0015060103

$3.08

38

TOOTH LOCK WASH. DIN6797-J 5,3

0797050003

$1.49

40

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

41

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

42

Self lock. nut DIN985-M6-A2

0985060003

$2.05

43

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

44

clip nut M6

54603048100

$4.11

60

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable
