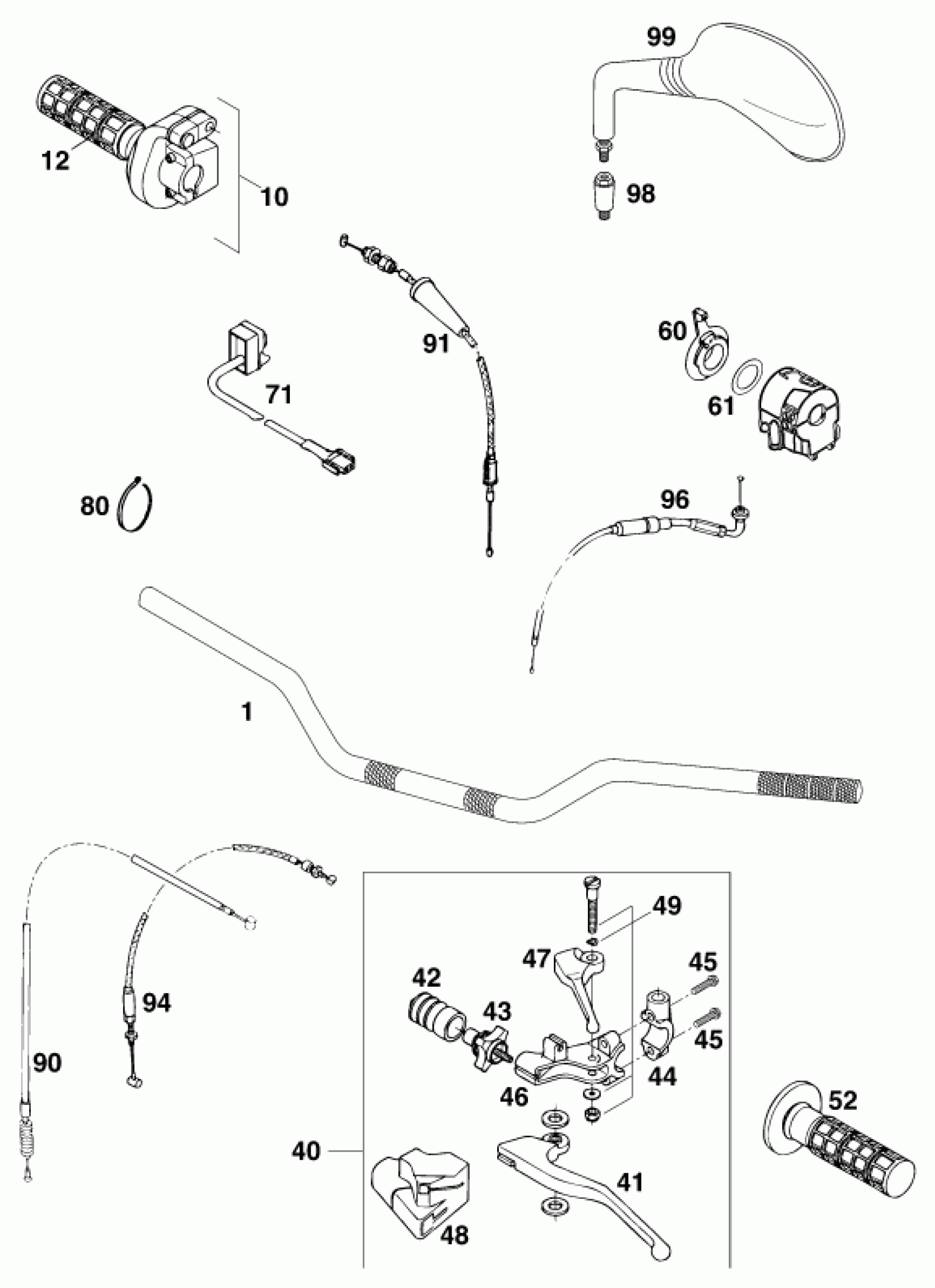

KTM 620 LC-4 Competition <1999 HANDLEBAR, CONTROLS Diagram

#

Description
Price

0

MIRROR R/S 98

58412041000

$36.92

1

ALU-HANDLEBAR SILVER ''4T'' '

58302001400

$84.07

10

THROTTLE GRIP CPL.DOMINO '93

58302010000

$89.51

12

TWIST GRIP COVER DOMINO

58302003000

$27.76

40

CLUTCH LEVER ASSY CPL.DOMINO

58302040100

$82.83

41

CLUTCH LEVER LOOSE SILVER '97

58402042000

$40.10

42

CLUTCH LEVER BOOT '95

58302126000

$5.23

43

ADJUSTMENT SCREW CPL.M7

58302043000

$22.06

44

CLAMP MIRROW M10x1,25

58302044000

$13.36

45

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

46

JOINT DOMINO

58302023000

$49.55

47

DECOMPRESSION LEVER LOOSE

58302047000

$12.05

48

PROTECTING COVER

58302048000

$8.01

49

LEVER SCREW CPL.

58302049000

$7.00

52

FIXED GRIP DOMINO '93

58302052000

$27.76

60

CHOKE LEVER DOMINO '94

58302050100

$10.46

61

thrust wash DIN0988-25x35x0,5

0988253505

$4.11

71

SHORT CIRCUIT SWITCH 550MM '94

58311071100

$30.67

80

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

80

Cable tie 200/4.6mm black

44011076200

Unavailable

90

CLUTCH CABLE 125/LC4 TSK '

50202090200

Unavailable

91

DADO FRENATO M5

58202091000

Unavailable

94

DECOMPR. CABLE L=693,5 LC4 '99

58302094200

$32.84

96

CHOKE CABLE LC4 '94

58302095100

$32.62

98

SUPPORT FOR MIRROR LC4 '98

58412040050

$20.19

99

MIRROR L/S 98

58412040000

$36.92
