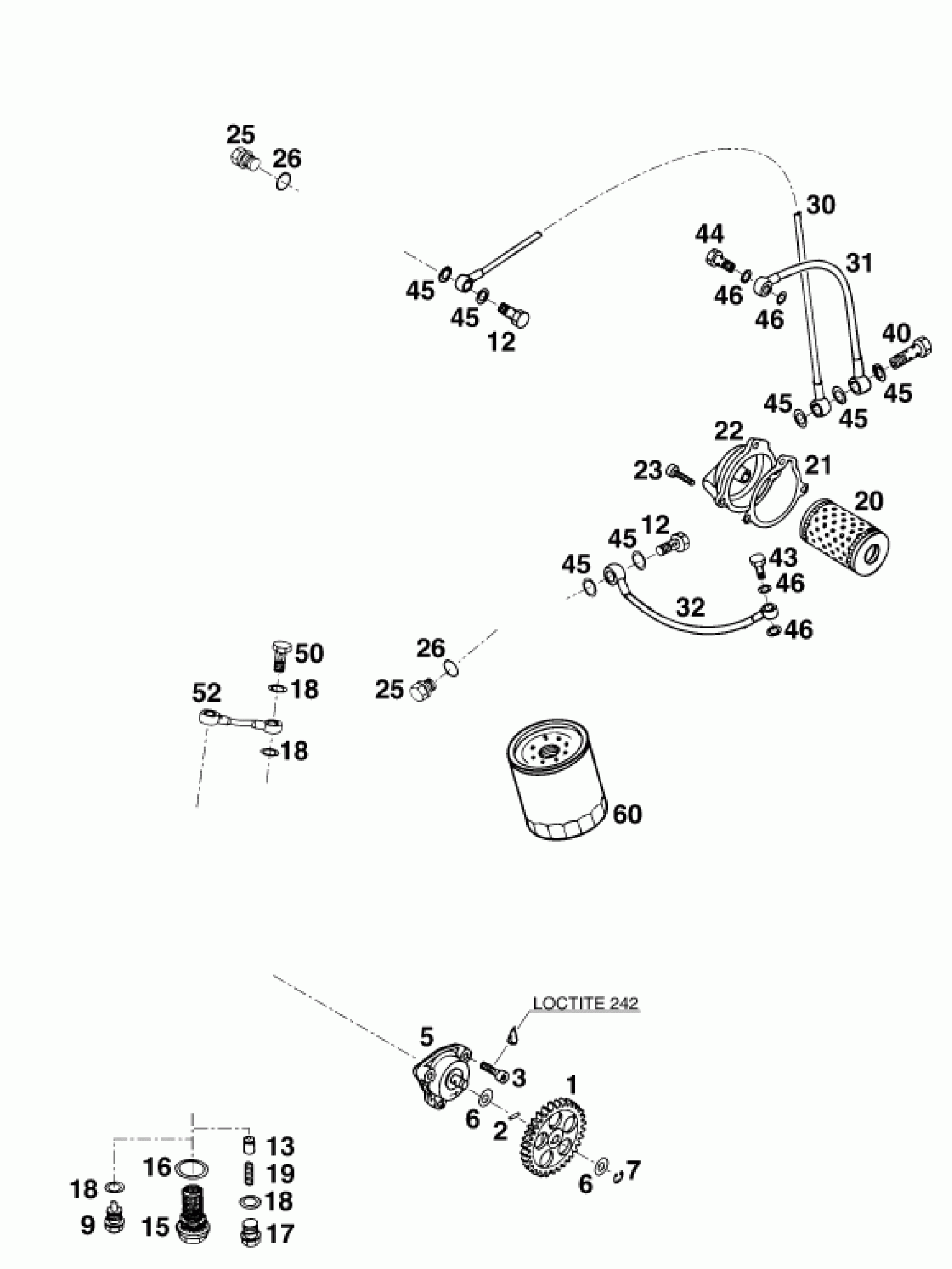

KTM 620 EGS WP 37KW 20LT VIOL '95 <1995> LUBRICATING SYSTEM Diagram

#

Description
Price

1

OIL PUMP GEAR 31-T

58038001000

Unavailable

2

NEEDLE ROLLER DIN5402 2,5X9,8

0402025980

$3.08

3

AH SCREW DIN0912-M 6X20

0912060203

$2.05

5

OIL PUMP MIKUNI G-73 LC4'

58038007100

Unavailable

6

STOP DISK 8,1 X 15 X 0,5

58038007755

$2.05

7

TAB WASHER DIN6799-RS 6,0

0799060000

$2.05

9

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

$11.30

12

HOLLOW SCREW M10 X 1

54313025000

$6.44

13

VALVE PISTON D=10MM

58038028000

$37.77

15

OIL PLUG M22x1,5

58038019000

Unavailable

16

SEAL RING 22x27x1 (COPPER)

58038017000

$2.05

17

PLUG DIN910 M12x1,5

0910120153

Unavailable

18

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

19

PRESSURE SPRING L=25MM D=1MM

58038023300

$5.23

20

OIL FILTER LONG

58038005000

Unavailable

21

0-RING 55,00X2,00 NBR70

0770055020

$2.05

22

FILTER COVER M10x1

58030008600

Unavailable

23

AH SCREW DIN0912-M 6X16

0912060163

$1.49

25

PLUG DIN0910-M 10X1

0910100003

$4.11

26

CU-SEAL RING 10 X 14 X 1,5

58038022900

$2.05

30

OIL LINE FILTER-FRAME TUBE

58038234700

$55.60

31

OIL LINE FILTER/INJECT.VA. R/S

58038334600

$27.71

32

OIL LINE CLUTCH COVER-FRAME

58338034000

$40.57

40

DUAL BANJO BOLT M10 X 1

58038033100

$12.80

43

JET SCREW M 8 X 1 ''150''

58038130000

$12.89

44

BANJO BOLT M8 X 1 DIN7643

58038030000

$5.23

45

CU-SEAL RING DIN7603-10X14X1

58038032010

Unavailable

46

CU-SEAL RING DIN7603- 8X12X1

58038032000

Unavailable

50

* BANJO BOLT M12 X 1,5 DIN7643

57538030000

Unavailable

52

OIL LINE CRANKCASE/TRANSMISSI.

57538135000

Unavailable

60

SCREW TYPE FILTER LC4'

58338045000

$23.93
