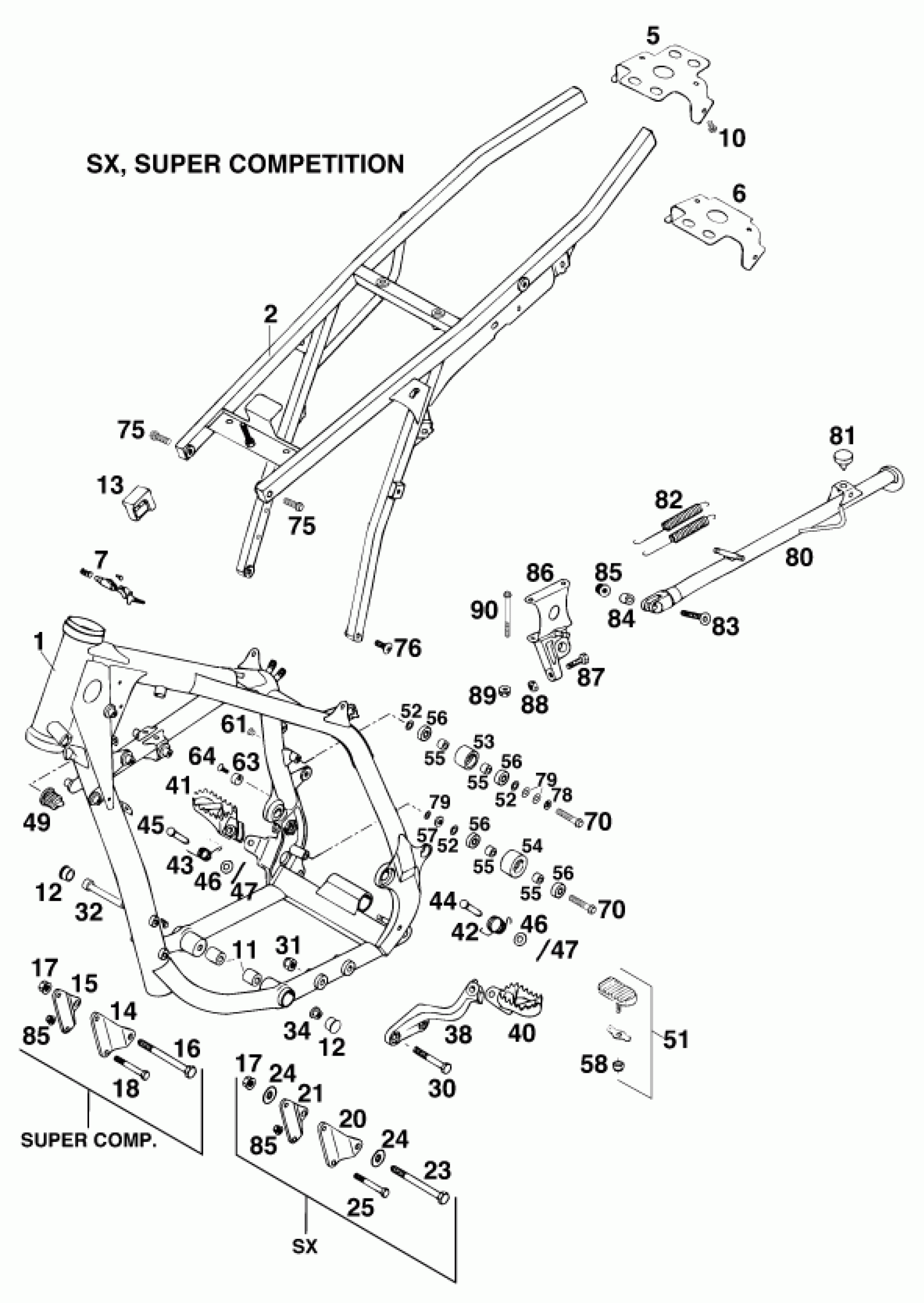

KTM 620 EGS WP 37KW 20LT VIOL '95 <1995> FRAME Diagram

#

Description
Price

1

FRAME SX 4-STROKE 50MM '96

58303001300

Unavailable

2

% SUB FRAME CPL. ALU LC4'95

58303102300

Unavailable

5

BUSHING EXC-NUMBERPLATECARRIER

58303002045

Unavailable

6

BUSHING EGS-NUMBERPLATECARRIER

58303002145

Unavailable

7

STEERING HEAD LOCK

44003007000

Unavailable

10

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

11

SPACER ROLLER 10,3X20X22

58003012000

$8.53

12

PVC CAP D=22MM

71001012000

$3.08

13

TANK SUPPORT '93

58307015000

$5.47

14

ENGINE SUPPORT L/S STEEL '90

58003055500

Unavailable

15

ENGINE SUPPORT R/S STEEL '90

58003155500

Unavailable

16

HH SCREW DIN0931-M10X110

0931101103

$1.82

17

flanged hex nut DIN 6927 M10 W

49009082000

$3.08

18

* HH SCREW DIN931 M8x75

0931080753

Unavailable

20

ENGINE SUPPORT L/S ALU SX

58003055600

Unavailable

21

* ENGINE SUPPORT R/S ALU SX

58003155600

Unavailable

23

HH SCREW DIN0931-M10X120

0931101203

Unavailable

24

WASHER 10,5 X 21 X 3

31004001100

$2.05

25

HH SCREW DIN0931-M 8X80

0931080803

$1.49

30

HH SCREW DIN0931-M10X60

0931100603

Unavailable

31

SELF LOCKING NUT DIN0985-M10

0985100003

$2.05

32

AH SCREW DIN0912-M10X160

0912101603

$6.72

34

COLLAR NUT M10 WS=13

54630044000

$1.49

38

FOOTREST BRACKET L/S '93

58303038000

$35.18

40

FOOTREST L/S '

58303040000

$37.24

41

FOOTREST R/S '93

5460314000019

Unavailable

42

FOOTREST SPRING L/S '93

58303041000

$5.48

43

FOOTREST SPRING L/S & R/S

54603041000

$5.23

44

BOLT FOR FOOTREST

58303044000

$6.36

45

BOLT FOR FOOTREST 9,8 X 50

54603044000

$12.43

46

washer DIN 125 A 10.5

0125100003

$2.05

47

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

49

PLASTIC CAP

42007049000

$1.49

51

FOOTREST RUBBER CPL. '94

58303045044

Unavailable

52

LOCK WASHER 8MM

36003014000

Unavailable

53

CHAIN ROLL D=30MM

50203053000

$6.72

54

CHAIN ROLL D=35MM

50203053100

Unavailable

55

BUSHING 8.2 X 12 X 6

74003021000

$3.08

56

Grooved ball bearing 608 2RS C

0625006087

$21.40

57

WASHER 8,4 X 17 X 3

71004038000

Unavailable

58

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

61

PLASTIC CAP SFL10

54403135000

$2.05

63

BRAKE LEVER STOP '93

58303063000

$5.98

64

FLAT H.SCREW DIN7991-M6X20

0991060203

$2.05

70

HH COLLAR SCREW M 8X40 WS=10

0015080403

$4.11

75

HH COLLAR SCREW M 8X25 WS=10

0015080253

$2.05

76

SPROCKET SCREW-AH M 8X26

54510052000

Unavailable

78

TOOTHLOCK WASHER DIN6797-J 8,4

0797080003

Unavailable

79

washer DIN 125 A -8.4

0125080003

Unavailable

80

% SIDE STAND '89

54503023100

Unavailable

81

RUBBER BUFFER

51007069100

$3.48

82

SIDESTAND SPRING LONG

51003021000

$7.00

83

FLAT HEAD SCREW DIN7991-M 8X35

0991080353

$2.61

84

BUSHING 8,2 X 12 X 10

57103225000

$4.11

85

54310086000

Unavailable

86

* LEVER HOLDER SIDE STAND '93

5020302610019

Unavailable

87

HH SCREW DIN0933-M 8X25

0933080253

$2.05

88

Hexagon nut DIN934 M8

0934080003

$2.05

89

SELF LOCKING NUT M6

56509064000

Unavailable

90

HH COLLAR SCREW M 6X70 WS=8

0015060703

$3.08
