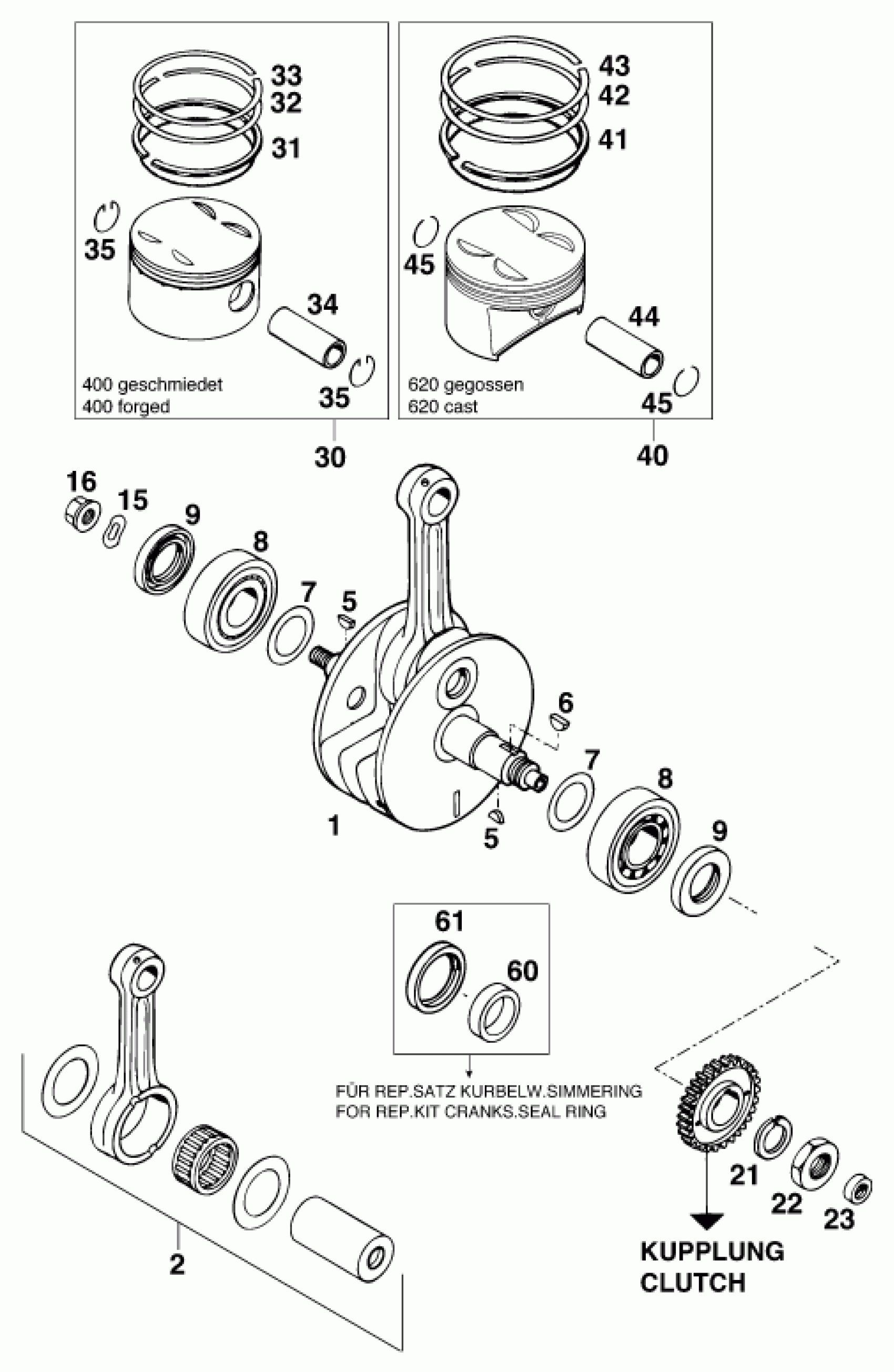

KTM 620 EGS WP 37KW 20LT VIOL '95 <1995 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

* CRANKSHAFT CPL.STROKE 56,2MM

57530018000

Unavailable

1

CRANKSHAFT CPL. 540/620 LC4'

58330018000

Unavailable

2

CONNECTING ROD REPAIR SET LC4

58030015044

$415.87

2

CONNECTING ROD REPAIR SET LC

58330015044

$345.34

5

WOODRUFF KEY DIN6888-3X5X13

0888030050

$2.05

6

WOODRUFF KEY DIN6888-5X6,5

0888050650

Unavailable

7

THRUST WASHER 30,5X45X0,10

56030081000

Unavailable

7

THRUST WASHER 30,7X47X0,15

56030081100

Unavailable

7

THRUST WASHER 30,5X45X0,30

56030081200

Unavailable

8

CYL.ROLLER BEARING NJ 306 C3

58030082000

$115.28

9

SHAFT SEAL RING 30x52x7BTSL

0760305272

Unavailable

15

SPRING WASHER DIN0137-B12

0137120000

$1.49

16

COLLAR NUT M12X1 LEFT WS=17

51030028100

$11.40

21

LOCKING RING VSK 20

58030019000

$1.73

22

HEXAGON NUT DIN0936-M20X1,5

0936200155

$6.52

23

SHAFT SEAL RING 12 X 22 X 7 B

0760122270

$15.79

31

OIL SCRAPER RING 95MM

58030631000

$25.42

32

TAPERED COMPR.PISTON RING 95MM

58030732000

$19.00

33

RECTANGULAR RING 95MM

58030632000

$46.22

34

PISTON PIN 22 X 13 X 54,2

58030033000

$46.19

35

CIRCLIP A 22 X 1,5

58030074000

Unavailable

41

OIL SCRAPER RING 101MM 620 LC4

58330831000

$29.87

42

TAPERED PISTON RING 101x1,25

58330932000

Unavailable

43

RECTANGULAR RING 101x1,25

58330832000

$37.92

44

PISTON PIN 22 X 13 X 60

58330833000

$46.27

45

CIRCLIP C 22 X 1,5

58030074100

$1.78

60

CRANKSHAFT REP.RING 30x38x9,5

58030018090

Unavailable

61

SHAFT SEAL RING 38X52X7BTSL

0760385273

Unavailable
