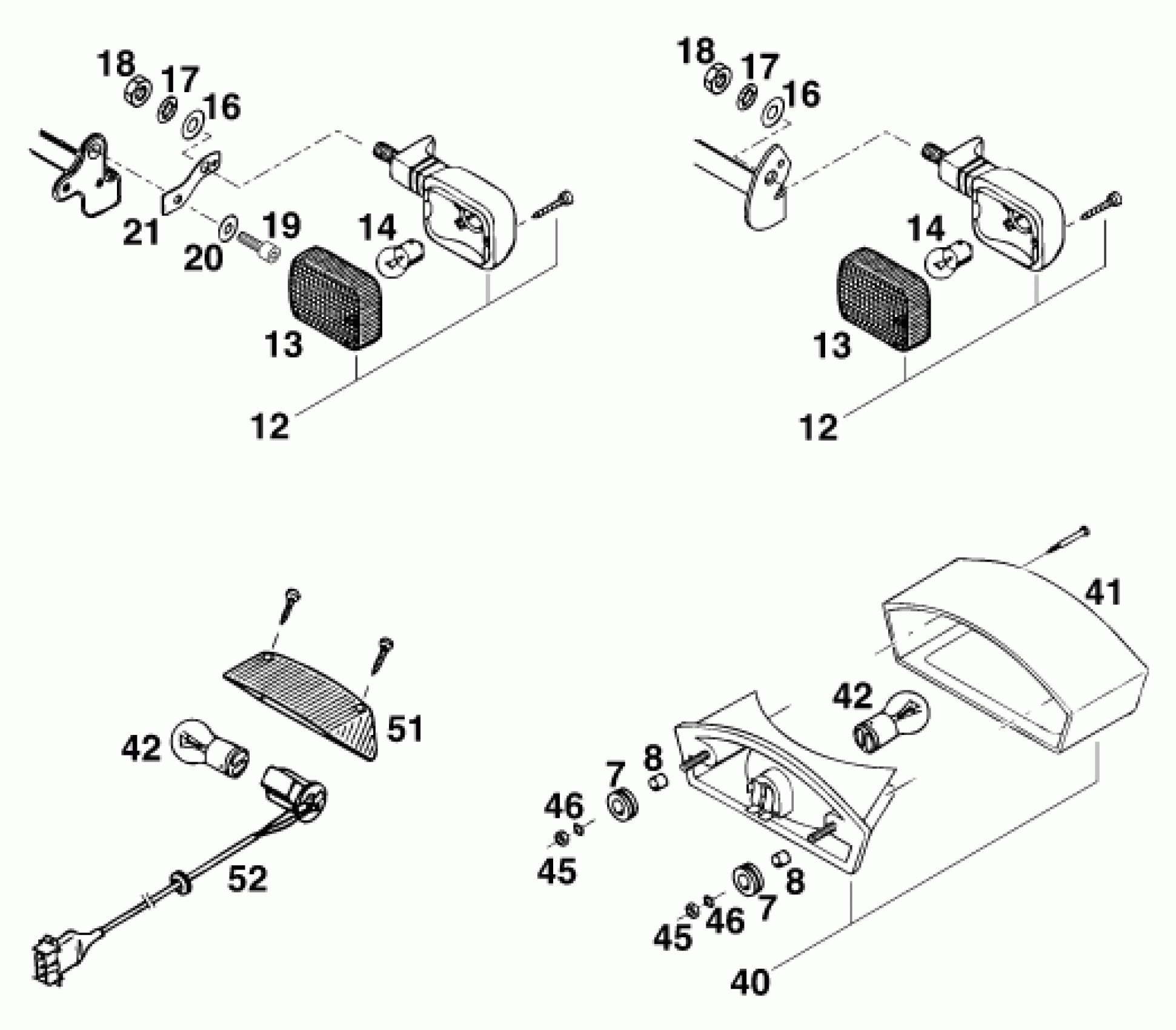

KTM 620 EGS WP 37KW 20LT VIOL <1996 LIGHTING SYSTEM Diagram

FLASHER REAR L/S / FRONT R/S

58311112000

$15.26

rubber grommet D=8mm open

31008060000

$2.05

SPACER BUSHING 6,5 X 8 X 7

58011039000

$2.05

FLASHER FRONT L/S / REAR R/S

58311012000

$15.68

FLASHER LENS L/S AND R/S

58311013000

$4.97

BULB 12V 10W (BA15S)

44111015100

$3.08

washer DIN 125 A 10.5

0125100003

$2.05

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.49

HEXAGON NUT DIN0934-M10X1,25

0934102003

Unavailable

AH SCREW DIN0912-M 6X16

0912060163

$1.49

Washer DIN9021-A 6.4

0021060003

$2.05

* FLASHER BRACKET '94

54611020400

Unavailable

REAR LIGHT CPL. CEV 358 '93

58311040000

$45.73

LENS '93

58311041000

$27.95

BULB 12V 21/5W (BAY15D)

57011045000

Unavailable

Self lock. nut DIN985-M6-A2

0985060003

$2.05

Washer DIN9021-A 6.4

0021060003

$2.05

REAR LIGHT LENS ACERBIS '93

58311241000

$24.83

REAR WIRNING HARNESS '93

58311276000

$41.16
