WIRING HARNESS

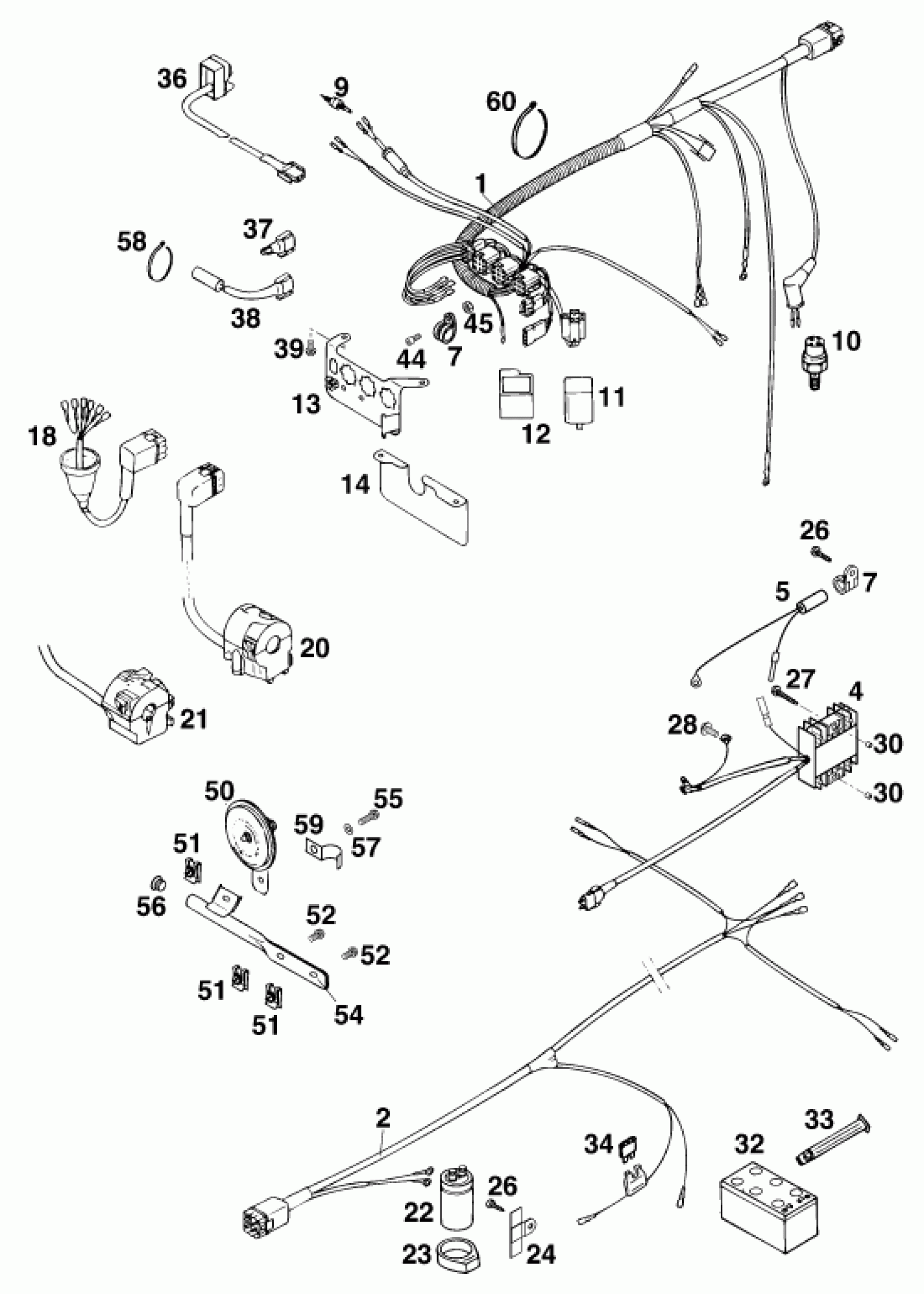

KTM 620 EGS WP 37KW 20LT ROT <1996 WIRING HARNESS Diagram
#
0
Cable tie 200/4.6mm black
44011076200
Unavailable
0
CABLE TIE 300/4,8MM BLACK
44011076305
Unavailable
1
MAIN WIRING HARNESS 4STR. '95
58311475100
Unavailable
2
* WIRING HARNESS REAR '93
58311476000
Unavailable
4
% VOLTAGE REGULATOR SHINDENGEN
58311034000
Unavailable
5
DIODE FOR REGULATOR SHINDENGEN
58311030100
$24.37
7
CLAMP RSGU 15/12
49007439000
$5.23
9
FRONT BRAKE LIGHT SWITCH
51011050000
$19.91
10
BRAKE LIGHT SWITCH
42013121000
$31.34
11
* FLASHER UNIT
44611207000
Unavailable
12
* FLASHER LIGHT BRACKET
54511046000
Unavailable
13
CONNECTOR SUPPORT '93
58311083000
Unavailable
14
COVER CONNECTOR SUPPORT '93
58311083051
Unavailable
18
* WIRING HARNESS-IGNITION LOCK
58311077000
Unavailable
20
LIGHT SWITCH KPL. CEV '94
58311570000
Unavailable
21
% LIGHT SWITCH
58311470100
Unavailable
22
CONDENSATOR 25V, 10.000 MF
49111435100
$57.59
23
CAPACITOR BRACKET
54511048000
$4.33
24
BRACKET FOR CAPACITOR
54611448000
Unavailable
26
SHEET MET.SCR.DIN7981- 5,5x19
0981550193
$1.49
27
SHEET MET.SCR.DIN7981- 5,5X39
0981550393
$1.49
28
HH COLLAR SCREW M 6X10 WS=8
0014060103
$3.08
30
BUSHING 6,5 X 12 X 9
56535035000
Unavailable
32
BATTERY 12V 1,2AH
54511008000
Unavailable
33
RUBBER BAND
54611186000
$5.23
34
FUSE 10 A
58011109010
$2.05
36
SHORT CIRCUIT SWITCH 550MM '94
58311071100
$30.67
37
* DIODE CONNECTOR '93
58311090000
Unavailable
38
* DIODE WITH CONNECTOR '93
58311030000
Unavailable
39
HH COLLAR SCREW M 6X12 WS=8
0015060123
$3.08
44
AH SCREW DIN0912-M 5X12
0912050123
$2.05
45
Self locking nut DIN 985 M5
0985050003
$2.05
50
DC HORN 12V NIKKO
54511060100
Unavailable
51
clip nut M6
54603048100
$4.11
52
HH COLLAR SCREW M 6X12 WS=8
0015060123
$3.08
54
BRACKET FOR HORN '93
58307021000
$12.42
55
HH COLLAR SCREW M 6X20 WS=8
0015060203
$3.08
56
Plug SFL16
50210086000
$3.08
57
WASHER DIN0125-A 6,4
0125060003
$1.49
58
* CABLE TIE 200 X 5MM T50 R/SF
44011276200
Unavailable
59
CLAMP FOR WIRING HARNESS
50211096000
Unavailable
60
* CABLE TIE 180MM
44011076180
Unavailable
