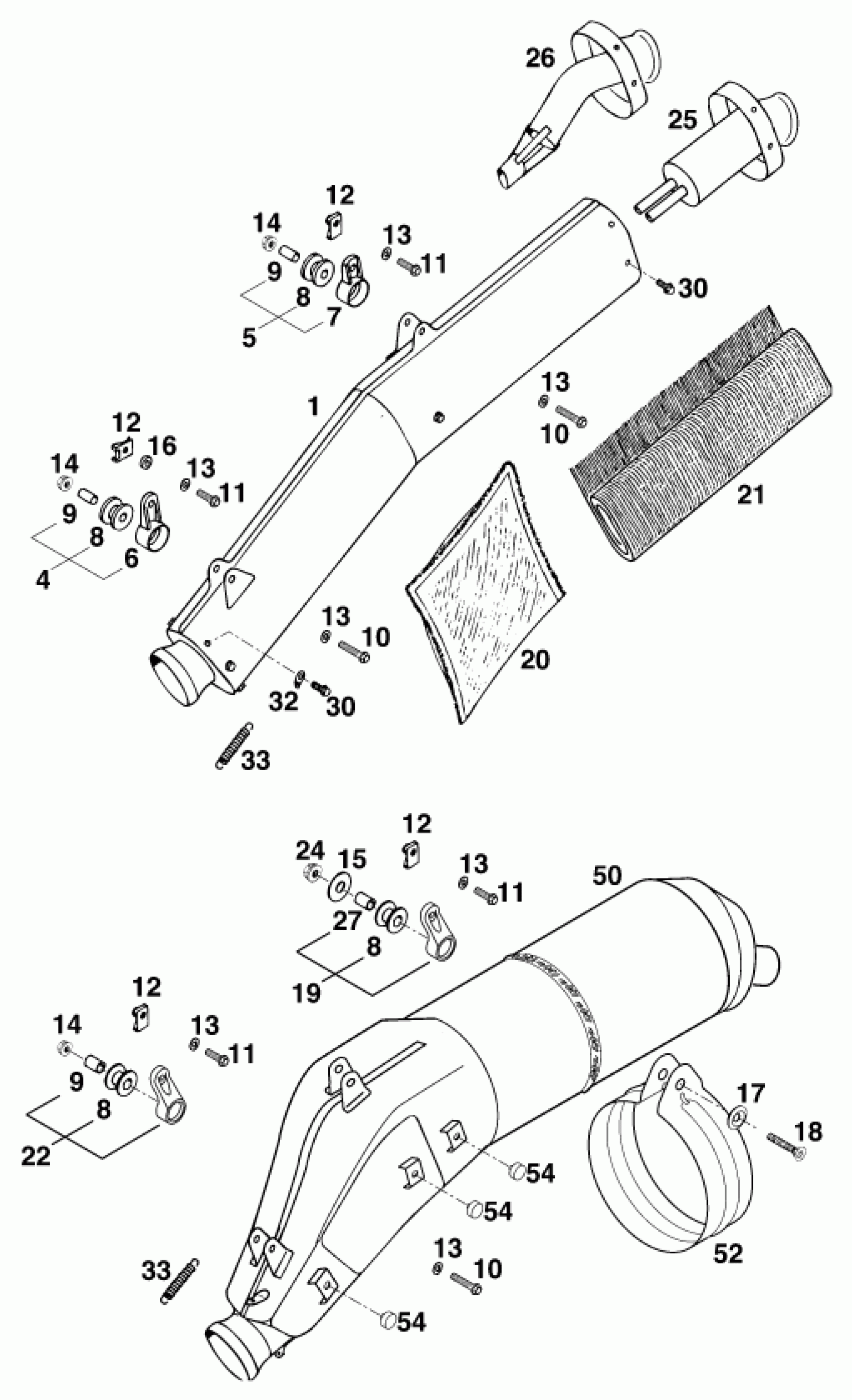

KTM 620 EGS WP 37KW 20LT ROT <1996> MAIN SILENCER Diagram

#

Description
Price

0

* STUFFING YARN LOOSE PER

58005079055

Unavailable

1

SILENCER "KTM HXC" '93

58305079000

Unavailable

1

SILENCER "KTM HXC" '93

58305179000

Unavailable

4

SIL. BRACKET CPL. LONG SILICON

54305065244

$21.41

5

% SIL.BRACKET CPL. SHORT SILIC

54305065144

Unavailable

6

BRACKET FOR SILENCER LONG

54305065000

Unavailable

7

% BRACKET FOR SILENCER SHORT

54305065100

Unavailable

8

damp. component silicone grey

54305068100

$8.31

9

BUSHING 7X12X15,4

54305069000

$4.11

10

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

11

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

12

clip nut M6

54603048100

$4.11

13

spring washer DIN 137 B - 6

0137060003

$2.05

14

SELF LOCKING NUT M6

56509064000

Unavailable

15

WASHER DIN9021-A 8,4

0021080003

$1.49

16

STEEL WASHER 6,4X17X3

50232050001

$5.23

17

SPECIAL WASHER ALU 8 X 24 MM

58303061000

$5.23

18

FLAT HEAD SCREW DIN7991-M 8X35

0991080353

$2.61

19

SILENCER BRACKET CPL. SHORT

58305165144

$22.90

20

STUFFING YARN LOOSE 300 GRAMM

58005079056

$97.80

21

STUFFING YARN 190 GRAMM

58005078108

Unavailable

22

SILENCER BRACKET CPL. SHORT'96

58305165244

$23.81

24

54310086000

Unavailable

25

SILENCER CAP D=2x9 PAINTED'93

58305179080

$76.90

26

SILENCER CAP D=29MM CHROME

58305079080

Unavailable

27

Spacer bushing 8.4X12X16

56505069000

$4.11

30

SPECIAL SCREW M 5,0X10

0009050103

$2.05

32

RETAINING PLATE

51005074000

$3.08

33

TENSION SPRING L=55MM

51005063000

$5.98

50

SILENCER ''KTM HGS2'' '96

58305080300

Unavailable

52

RETAINING CLAMP F. SILENCER'96

58305161100

Unavailable

54

RUBBER BUFFER

54308042000

$3.08
