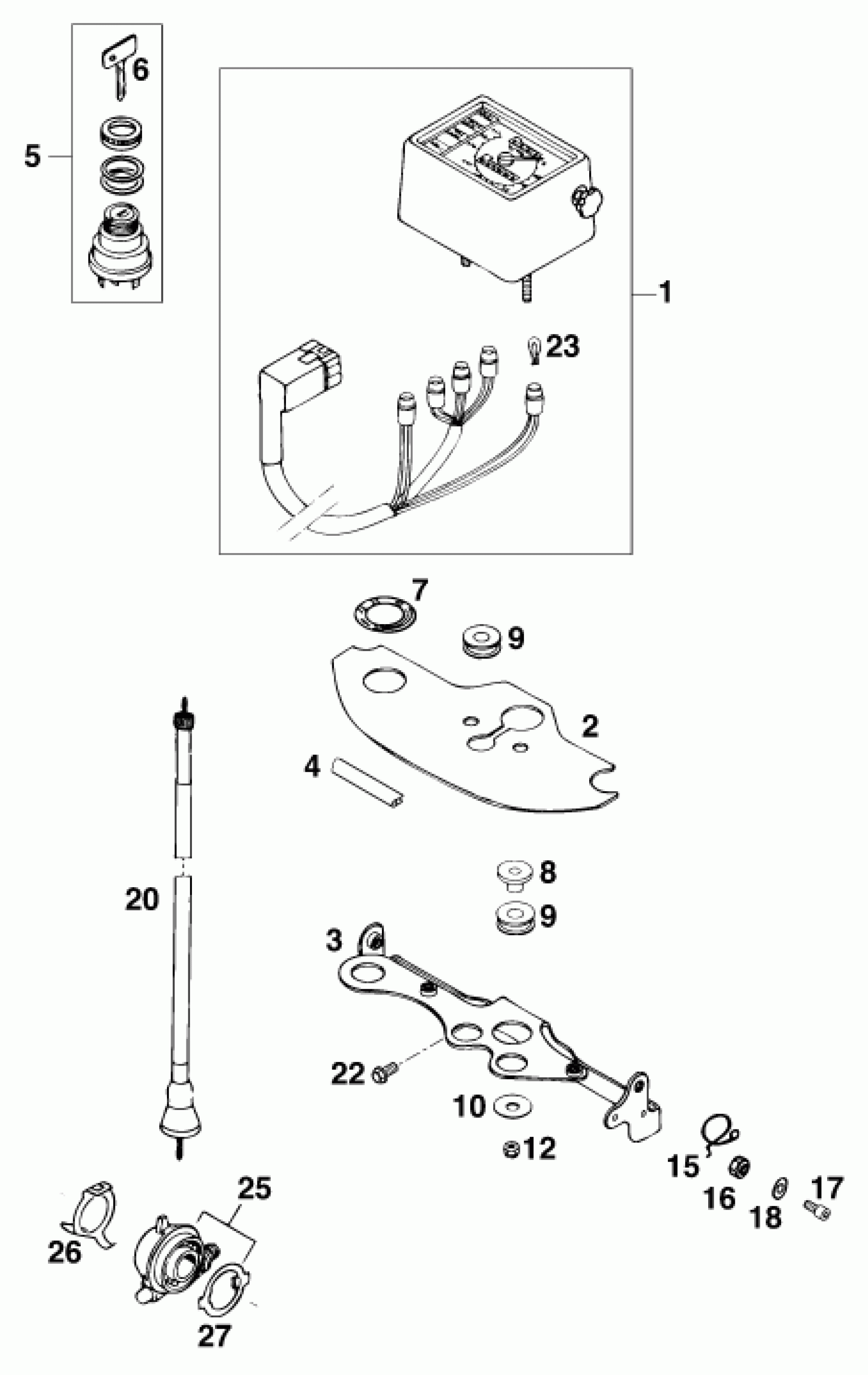

KTM 620 EGS WP 37KW 20LT ROT <1996> INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

1

SPEEDOMETER NIPP.SEIKI KMH '

58311068000

$169.62

1

SPEEDOMETER MILES-SCALA '94

58311068200

Unavailable

2

COVER FOR CONSOLE '94

58311084000

$6.45

2

COVER FOR CONSOLE '96

58311084100

Unavailable

3

MASK BRACKET NIPPON SEIKI '94

54611120000

$40.62

4

EDGE PROTECTOR PER METER

58312085100

Unavailable

5

IGNITION LOCK 7-P CEV

44611466000

Unavailable

6

KEY BLANK BLACK ''T'' GR

40011166200

Unavailable

7

* DECAL IGNITION LOCK

58111066151

Unavailable

8

BUSHING

54635036000

$1.49

9

RUBBER SLEEVE D=12MM

41001052000

$4.11

10

Washer DIN9021-A 6.4

0021060003

$2.05

12

Self lock. nut DIN985-M6-A2

0985060003

$2.05

15

GUIDE FOR BRAKE HOSE

58011008000

$3.88

16

Self locking nut DIN 985 M5

0985050003

$2.05

17

AH SCREW DIN0912-M 5X12

0912050123

$2.05

18

WASHER DIN0125-A 5,3

0125050003

$1.49

20

SPEEDOM.CABLE M12/M12 980MM

56511188500

$35.60

20

*SPEEDOM.CABLE M12/M12 945MM

56511188600

Unavailable

21

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

22

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

23

BULB 12V 2W (W2X4,6D)

49111425100

Unavailable

25

SPEEDOMETER DRIVE 748217(3,0)

58111052100

$39.50

26

BRACKET FOR SPEEDOMETER DRIVE

58111052150

$4.97

27

DRIVING DOG F.SPEEDOM.DRIVE'92

58111053100

$6.00
