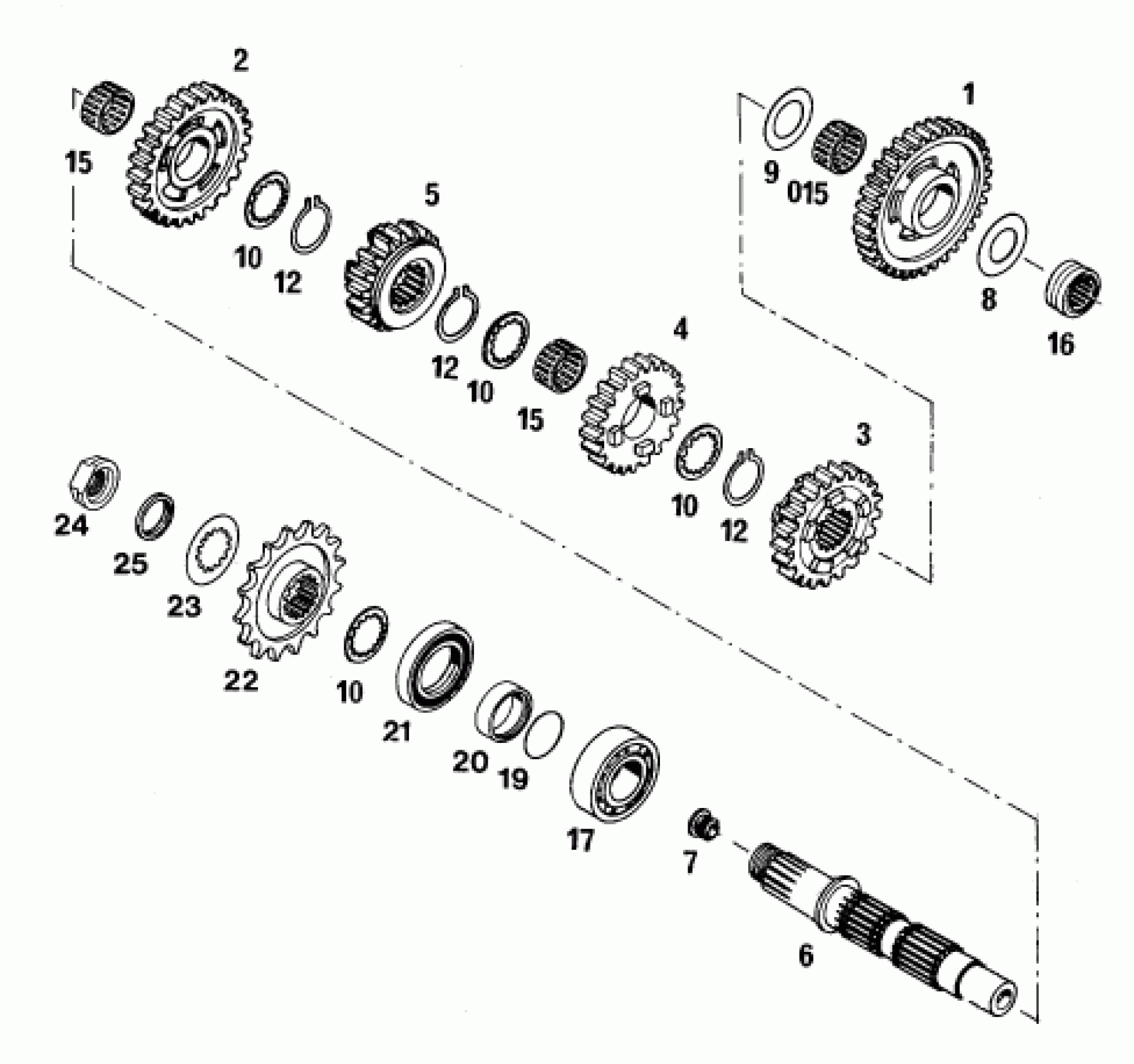

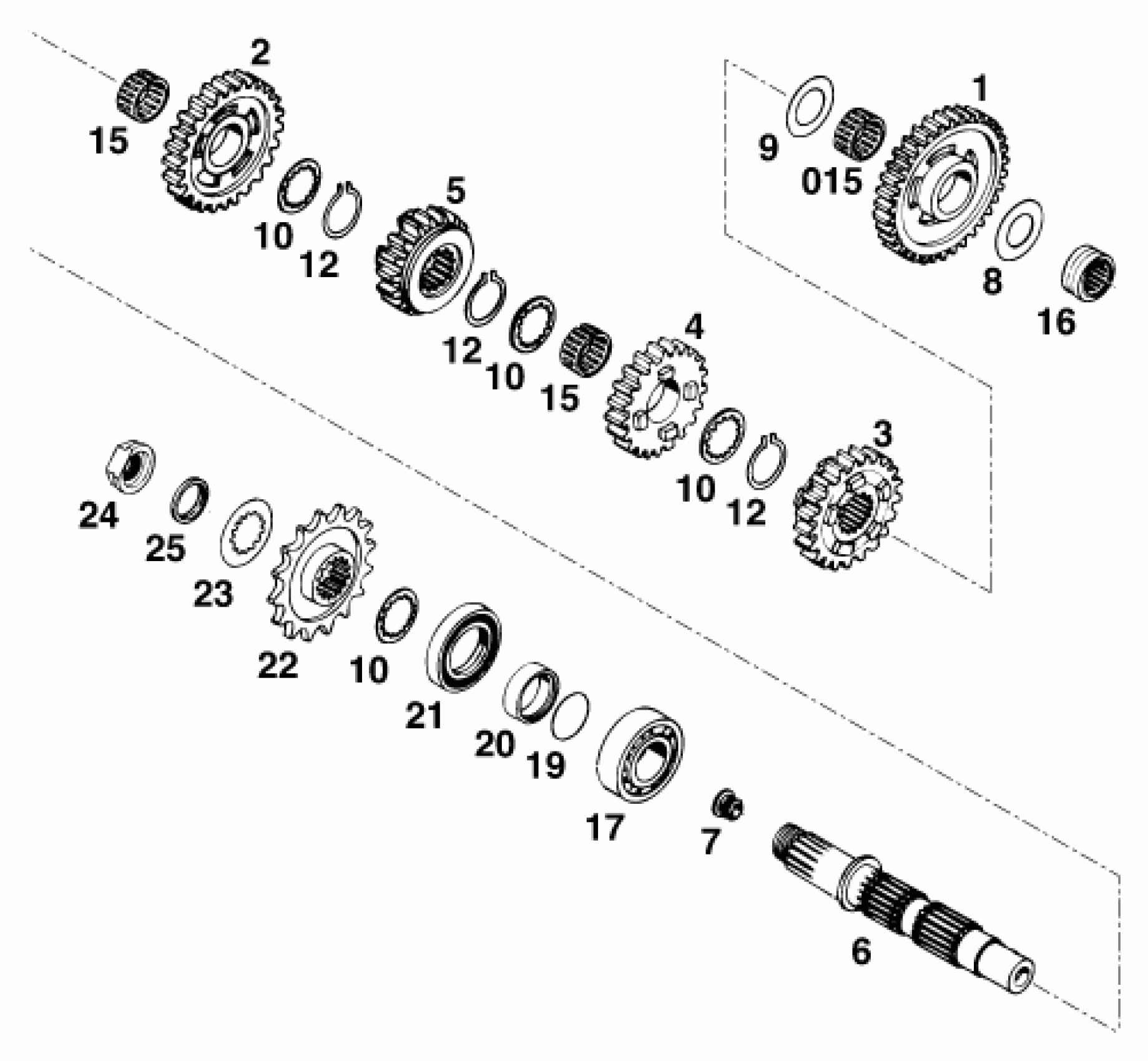

KTM 620 EGS WP 37KW 20LT '94 <1994 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

1

IDLER GEAR 1ST GEAR 33T(1M4)93

57533005000

Unavailable

2

2ND GEAR COUNTERSHAFT 24 T 2G3

56533013300

$160.01

2

2ND GEAR COUNTERSHAFT 24 T 2M4

56533013400

$88.14

3

3RD GEAR COUNTERSHAFT 21 T 3M3

56533007300

Unavailable

4

4TH GEAR MAINSHAFT 19 T 4M3

56533009300

Unavailable

5

5TH GEAR COUNTERSHAFT 21 T 5M3

56533011300

$86.50

6

COUNTERSHAFT

58033003100

$183.54

7

PLASTIC CAP

50033001000

$1.49

8

STOP DISK 20,2 X 35 X 1

56533015000

Unavailable

9

STOP DISK 22,2 X 35 X 1,5

56533018300

$3.31

10

STOP DISK 22,7 X 32 X 1,5

56533016300

$5.98

12

LOCK RING DIN0471-25X1,64SD

52033096000

$5.23

15

NEEDLE BEARING K22X26X13H

56533098000

$11.96

15

NEEDLE BEAR. K22X26X13 DIVID

56533099000

$9.15

16

NEEDLE BEARING RNA 4902 KSE

56533093000

$21.96

17

cylindrical roller bearing NJ2

49030023000

$74.42

19

O-RING 25,00X2,00 SILICONE

0770250021

$3.08

20

SPACER BUSHING

58033017000

$28.83

21

Radial shaft seal 32X47X7 BSL

0760324771

$13.36

22

ENGINE SPROCKET 14 T

58033029014

$27.48

22

ENGINE SPROCKET 15 T

58033029015

$28.04

22

ENGINE SPROCKET 16 T

58033029016

$28.79

23

locking plate

51033031000

$5.23

24

58033032100

Unavailable

25

SPACER RING

58033030000

$18.56
