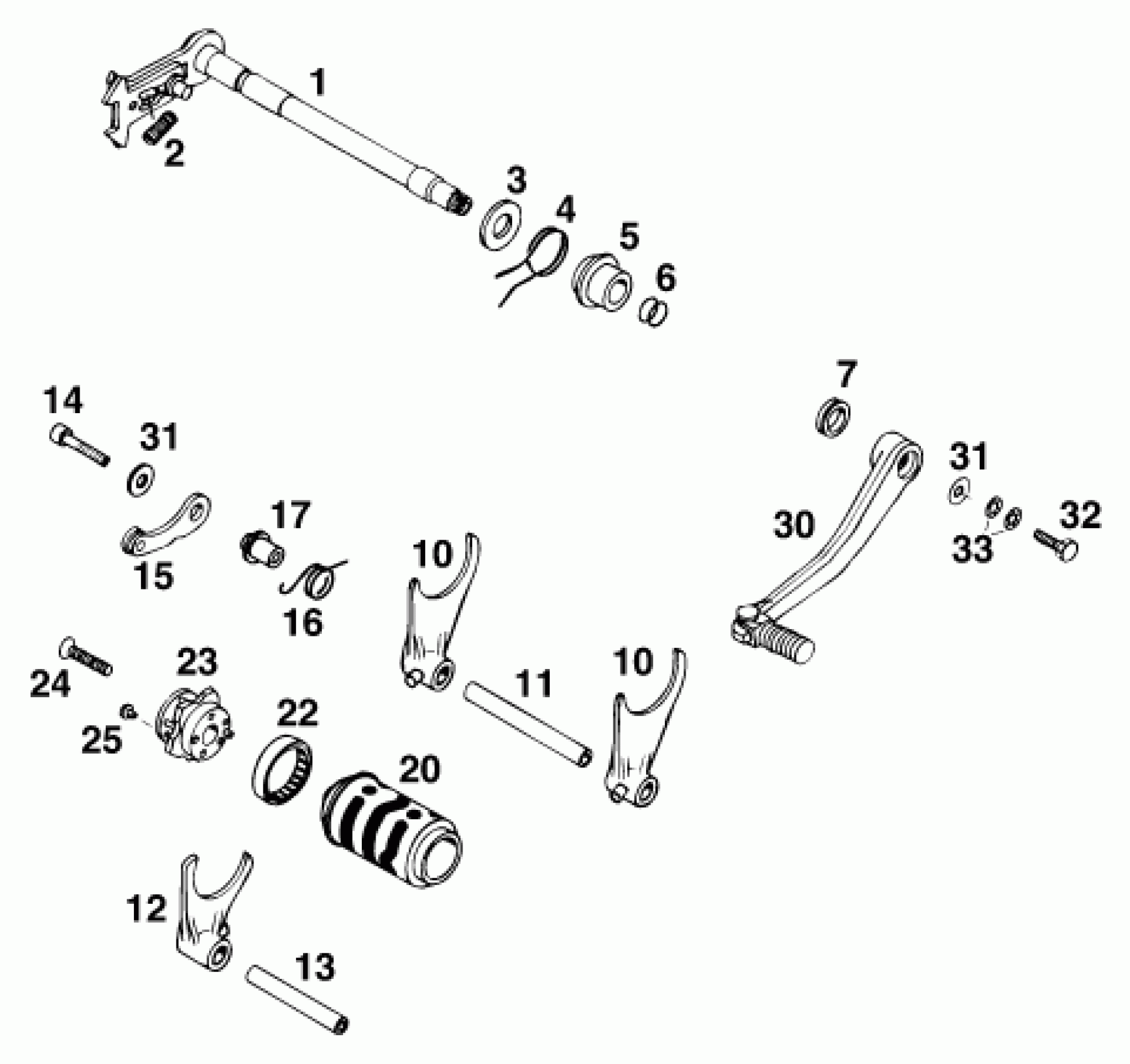

KTM 620 EGS WP 37KW 20LT '94 <1994 SHIFTING MECHANISM Diagram

#

Description
Price

1

SHIFT SHAFT CPL. '93

58034005344

$99.33

2

TENSIONING SPRING 0,8MM

56534013100

$1.49

3

STEEL WASHER 14 X 28 X 2

58034010000

$1.49

4

RETURN SPRING

58034014000

$3.60

5

SPRING BUSHING

58034020000

$6.22

6

O-RING 12,50X2,00 NBR 70

0770125020

$2.05

7

V-SEAL RING V-14-A

58033027000

$5.23

10

SHIFT FORK 1ST/4TH + 2ND GEA

58034002200

Unavailable

11

SHIFT RAIL 1ST/4TH + 2ND GEAR

58034004000

$8.37

12

SHIFT FORK 3RD/5TH GEAR

58034001100

Unavailable

13

SHIFT RAIL 3RD/5TH GEAR

58034003000

$6.30

14

AH SCREW DIN0921-M 6X60

0912060603

$1.73

15

LOCATING LEVER CPL.

58034024544

$9.50

16

SPRING

58034023500

$2.18

17

* BUSHING

58034017500

Unavailable

20

* SHIFT DRUM (5 SPEED)

58034012000

Unavailable

22

NEEDLE BEARING 30X37X7,5

50134026100

Unavailable

23

* SHIFT DRUM LOCKATOR CPL.

58034015544

Unavailable

24

FLAT HD SCREW M6X30 SLF LOCK

56534016000

Unavailable

25

SHIFT BUTTON

58034016500

$3.15

30

* SHIFTING LEVER 4-STR. CPLALU

58034022000

Unavailable

31

WASHER 6,2X18X2

50232050000

$5.23

32

HH SCREW DIN0933-M 6X16

0933060163

$1.49

33

Pair of washers M6 NORDLOCK

50233041000

$4.11
