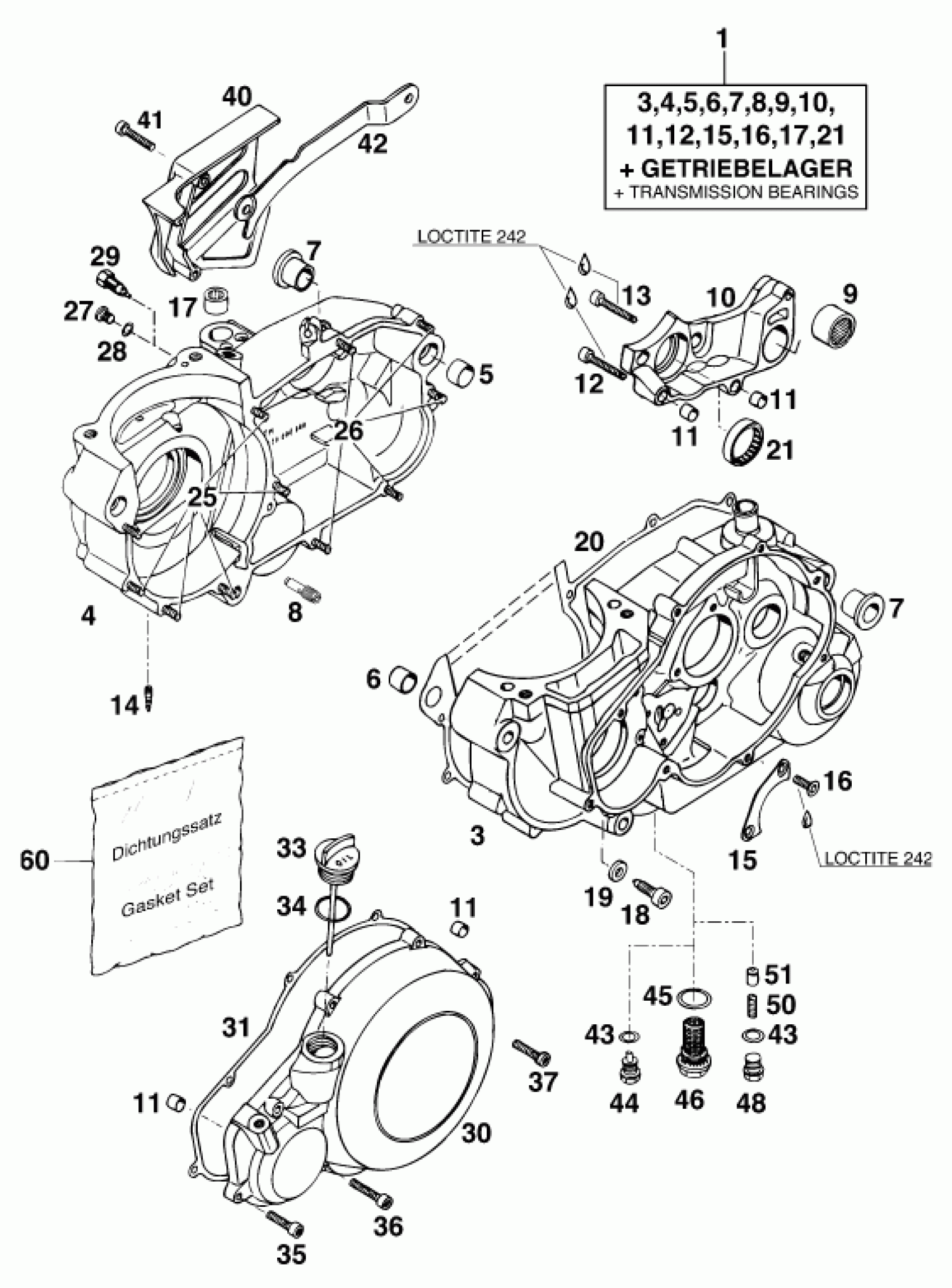

KTM 620 EGS WP 37KW 20LT '94 <1994> ENGINE CASE Diagram

#

Description
Price

0

GASKET SET 350/500 LC4

57530100000

Unavailable

0

GASKET SET 400/600 LC4

58030100000

$183.99

0

GASKET SET 612/620 LC4

58030900000

$167.79

1

ENGINE HOUS.CPL.W.TRANSM.BEAR.

58030000944

Unavailable

5

DOWEL 19 X15,1X12

50130027000

$5.30

6

DOWEL 17 X 13 X 12

51030026100

$6.44

7

CRANK CASE BUSH

50130010000

$21.78

9

NEEDLE BEARING HK 2216

58033097000

$14.02

10

SHIFT MECHANISM SUPPORT '94

58030011600

Unavailable

11

DOWEL 9,8 X 7 X 10

49030090000

$2.05

12

AH SCREW DIN0912-M 6X35

0912060353

$2.05

12

AH SCREW DIN0912-M 6X40

0912060403

Unavailable

14

TUBE LW 3

49130450050

Unavailable

15

RETAINING PLATE

56530017000

$12.03

16

FLAT HEAD SCR. DIN7991-M 6X16

0991060163

$2.05

17

NEEDLE BEARING HK 1212

50332095000

$8.03

18

LOCATING SCREW M8 L=23

58030080000

$17.66

19

CU-SEAL RING 8 X 14 X 3

58030081000

$2.05

20

ENGINE CASE GASKET

58030039000

$7.80

25

AH SCREW DIN0912-M 6X55

0912060553

$3.08

26

AH SCREW DIN0912-M 6X30

0912060303

$2.05

27

OIL DRAIN PLUG M10X1,5 AH-WS=6

49030029000

Unavailable

28

CU-SEAL RING DIN7603-10X14X1

58038032010

Unavailable

29

CONTACT SCREW M10 '

58011081000

Unavailable

30

CLUTCH COVER CPL. BLACK '93

58030001200

Unavailable

31

CLUTCH COVER GASKET

58030025000

$8.29

33

OIL DIPSTICK CPL.SHORT

58030020044

$12.67

34

O-RING 16,00X3,00 NBR 70

0770160030

$2.05

35

AH SCREW DIN0912-M 6X25

0912060253

$2.05

36

AH SCREW DIN0912-M 6X30

0912060303

$2.05

37

AH SCREW DIN6912 M6X25

0984060252

$2.05

40

CHAIN COVER BLACK '

58030050600

Unavailable

41

AH SCREW DIN0912-M 6X30

0912060303

$2.05

42

CHAIN DAMPER SHEET LC4 '90

58030047515

$15.77

43

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

44

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

$11.30

45

SEAL RING 22x27x1 (COPPER)

58038017000

$2.05

46

OIL PLUG M22x1,5

58038019000

Unavailable

48

threaded plug DIN 908 M12x1.5

0908120153

$4.11

50

PRESSURE SPRING L=25MM D=1MM

58038023300

$5.23

51

VALVE PISTON D=10MM

58038028000

$37.77
