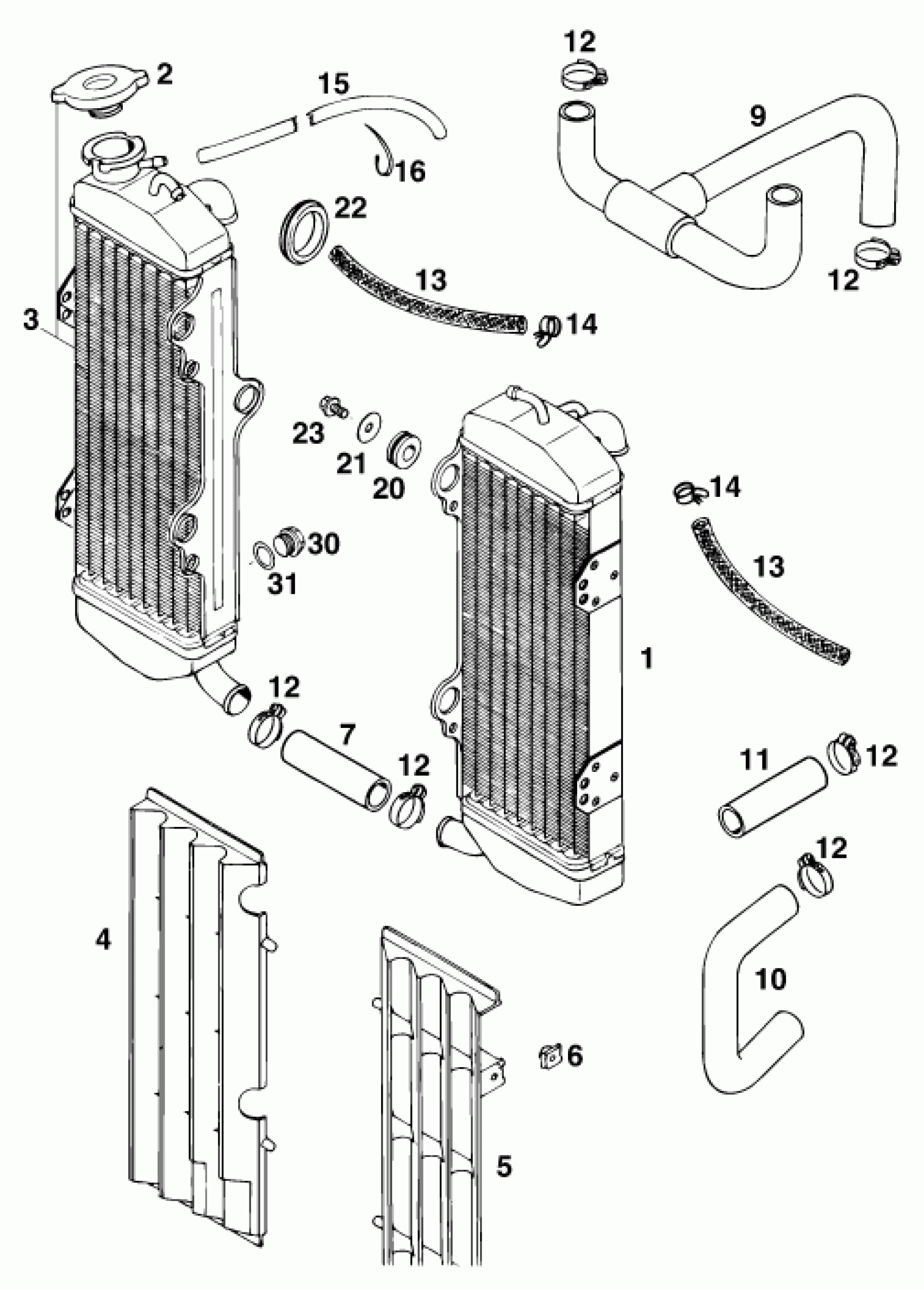

KTM 620 EGS WP 37KW 20LT '94 <1994> COOLING SYSTEM Diagram

#

Description
Price

1

RADIATOR L/S (4.5218) LC4'95

58035108800

Unavailable

2

RADIATOR CAP SMALL 20,3 PSI

58035016000

$25.70

3

RADIATOR R/S (4.5219) LC4'95

58035107800

Unavailable

4

RADIATOR PROTECT. R/S WHITE'96

58035134100

$14.38

5

RADIATOR PROTECT. L/S WHITE'96

58035034100

$19.20

6

SNAP-NUT HOLDER M6 KP142

50235033300

$4.11

7

RADIATOR HOSE 18X25 PER METRE

56535025001

Unavailable

9

PREFORMED HOSE LC4'94

58335026000

$60.30

10

PREFORMED HOSE 18X3,5-90 DG

50235025700

$16.01

11

RADIATOR HOSE 20X26

58335024001

Unavailable

12

HOSE CLAMP GEMI 18-29

10001020000

$2.05

13

HOSE ID 7,5 PER METER

54435024001

Unavailable

14

HOSE CLAMP YDNAC 10119 11MM

50231005000

$2.05

15

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

16

* CABLE TIE 155MM

44011076155

Unavailable

20

RUBBER SLEEVE D=12MM

41001052000

$4.11

21

WASHER 6,2X22X1,ST30,W.GALV.

51006097000

$1.49

22

SLEEVE FOR STEERING HEAD

54635022000

$1.54

23

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

30

PLUG DIN0908-M14X1,5

0908140153

$3.48

31

ALU SEALRING DIN7603-14X20X1,5

0603142015

$2.05
