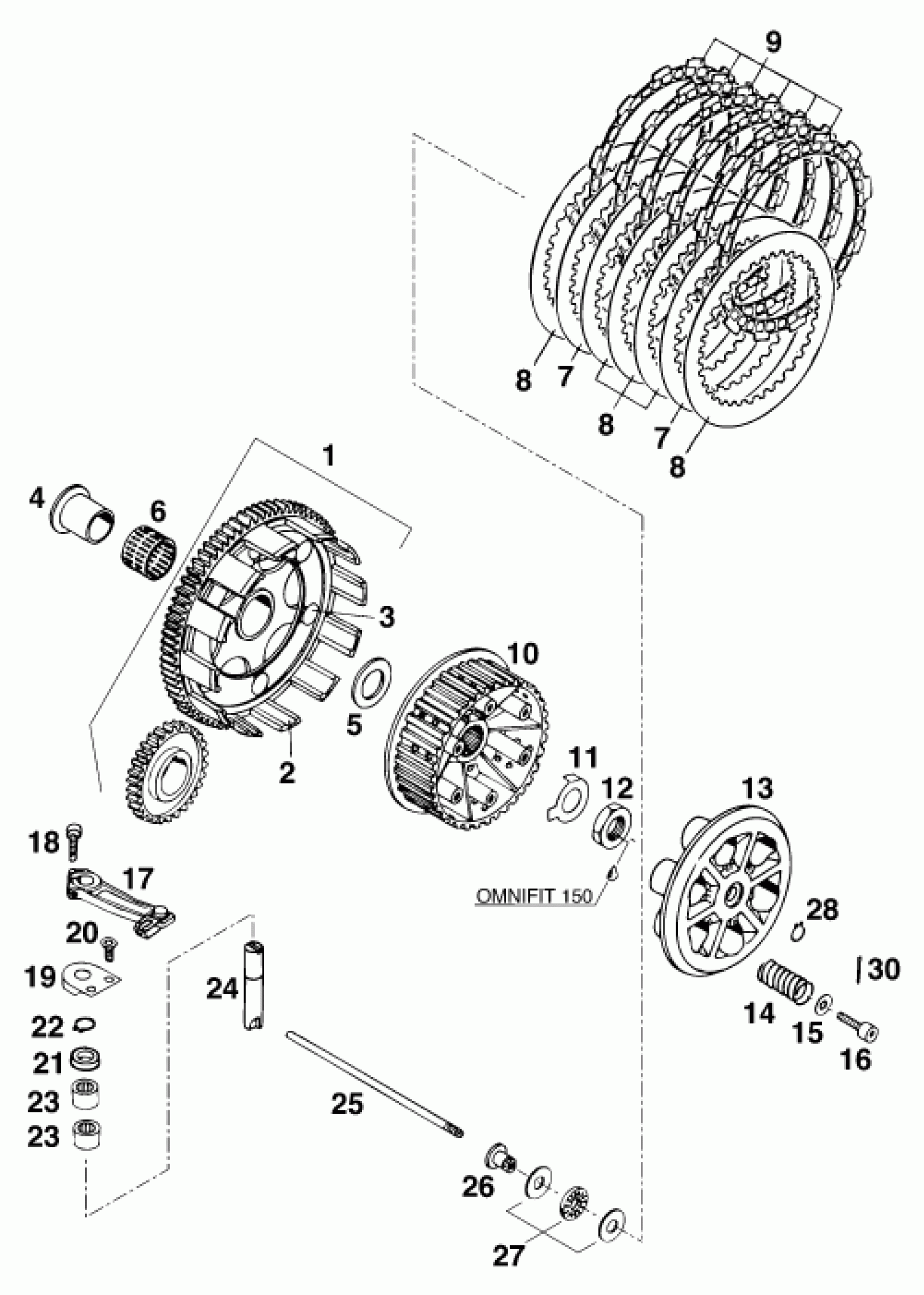

KTM 620 EGS WP 37KW 20LT '94 <1994 CLUTCH Diagram

#

Description
Price

1

OUTER CLUTCH HUB 81/22T

58032101144

Unavailable

2

OUTER CL.HUB D=150MM ''C'' 4-S

58032001000

Unavailable

3

RIVET DIN 7338 8x11,2

58032007000

$2.15

4

INNER RING WITH COLLAR

50332070000

$49.27

5

SUPPORTWASHER 22,2X35X3 HARDE.

57532013000

$18.72

6

NEEDLE BEARING K26X30X22ZW.KSE

56532095000

$23.83

7

STEEL DISK 4-STR. 1,4 MM

58032112000

$28.49

8

STEEL DISK 2MM 4-STR.

58032012500

$35.55

9

* ORGANIC DISK 3MM

58032011100

Unavailable

10

INNER CLUTCH HUB"5" LC4 '90

56532002500

Unavailable

11

LOCK WASHER

56532018000

$6.26

12

HEXAGON NUT DIN0936-M18X1,5 R.

0936181505

$7.75

13

PRESSURE CAP

56532003100

$70.04

14

CLUTCH PRESSURE SPRING 2,6X38

50232002000

$5.29

15

WASHER 6,2X18X2

50232050000

$5.23

16

AH SCREW DIN0912-M 6X20

0912060203

$2.05

17

CLUTCH RELEASE LEVER 4-STROKE

58032014000

Unavailable

18

AH SCREW DIN0912-M 6X20

0912060203

$2.05

19

RETAINING PLATE FOR RELEASING

54532013000

$4.77

20

FLAT HEAD SCREW DIN7991-M 6X

0991060122

Unavailable

21

NUT RING NIS 12X20X5,5

54532093000

$2.47

22

retaining ring DIN 471 12x1

0471120010

$1.49

23

NEEDLE BEARING HK 1212

50332095000

$8.03

24

DISENGAGING SHAFT 12 X 66 '93

57532015000

$33.77

25

* PUSH ROD 206MM LC4 '93

57532017000

Unavailable

26

PRESSURE BOLT

56532032300

$10.03

27

*AXIAL NEEDLE BEARING AXK 1024

54332030000

Unavailable

28

CIRCLIP DIN0471-10X1

0471100010

$2.05

30

PIN DIN94 1,5x22

0094150223

$1.49
