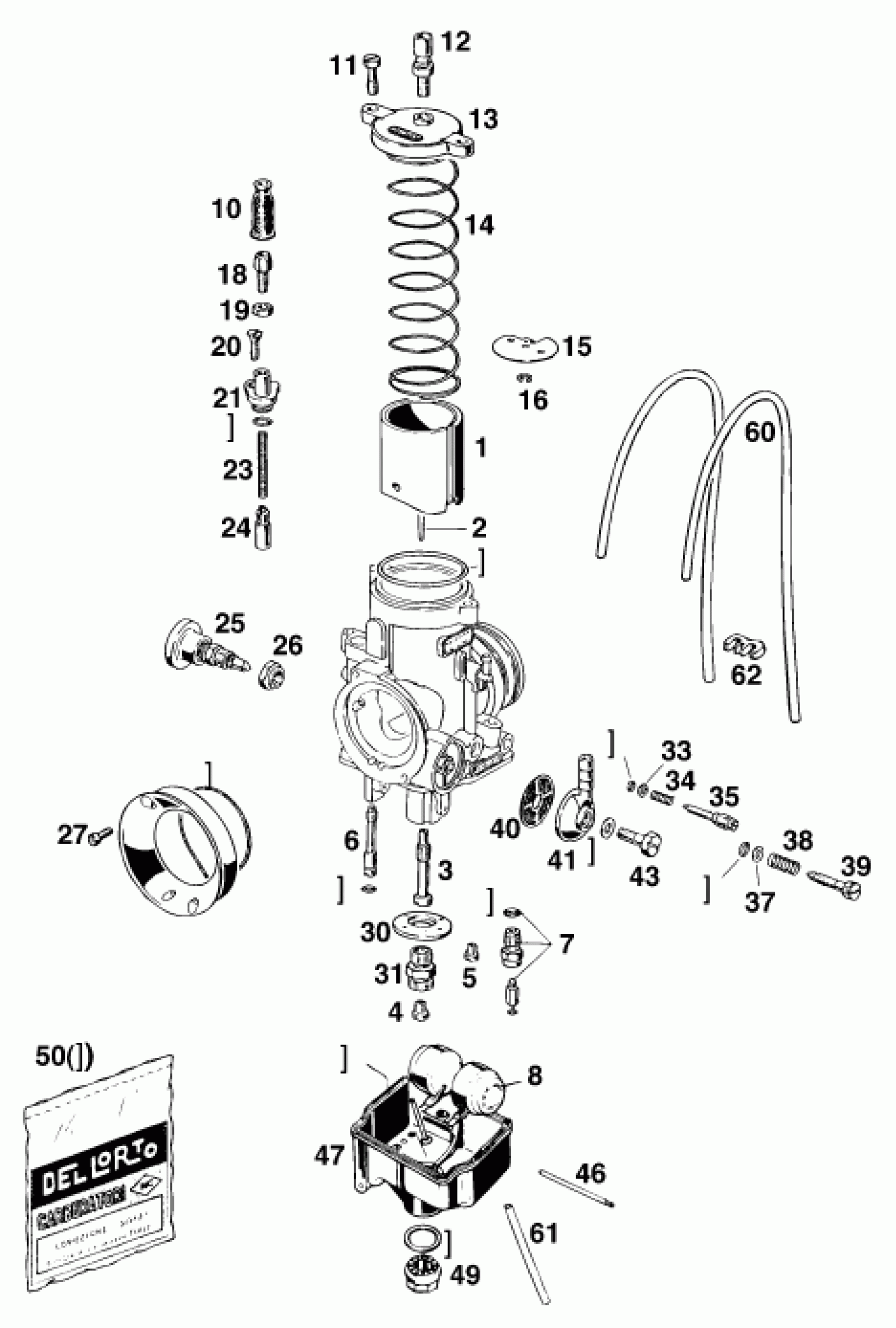

KTM 620 EGS WP 37KW 20LT '94 <1994 CARBURETOR Diagram

#

Description
Price

0

CARBURETOR PHBE 36 3650 '93

57531101044

Unavailable

1

THROTTLE VALVE 40 14430.40.64

57531135040

Unavailable

2

JET NEEDLE K51

49031134051

$23.37

3

NEEDLE JET DR 266

58031121266

Unavailable

3

NEEDLE JET DR 268

58031121268

$33.00

3

NEEDLE JET DR 270

58031121270

$28.86

4

MAIN JET 135

57031523135

Unavailable

4

MAIN JET 180

57031523180

$4.61

5

JET 38

15131123038

Unavailable

5

JET 45

15131123045

$5.65

5

JET 52

15131123052

$6.35

6

STARTING JET 45

57031551045

$11.02

7

NEEDLE VALVE 300

57231120300

$50.95

8

% FLOAT 8,5 GRAMME

57031509000

Unavailable

10

RUBBER SLEEVE

52031138000

$1.73

11

HEXAGON NUT M 5X16

57031524000

$2.12

12

ADJUSTMENT SCREW M6X0,75

57031525100

$15.76

13

* CARBURATOR TOP PLATE

50131127000

Unavailable

14

* SLIDING SPRING 1,25X180

57031130000

Unavailable

15

RETAINING PLATE

54431532000

Unavailable

16

TAB WASHER DIN6799-RS 2,5

0799025055

$3.08

18

ADJUSTMENT SCREW M6X0,75

57031525000

$5.23

19

HEXAGON NUT M 6X0,75 DIN0439

52031126000

$8.41

20

FLAT HEAD SCREW DIN963-M4,5X14

0963045143

Unavailable

21

COVER FOR STARTER HOUSING

57031555000

Unavailable

23

SPRING

58031153000

$1.49

24

STARTING DEVICE

57031549000

$6.11

25

WARM START BUTTON

58031180000

Unavailable

26

HEXAGON NUT M 9X0,75

58031181000

$6.17

27

AH SCREW DIN0912-M 4X12

0912040123

$1.49

30

COVER

50131174000

$3.31

31

MAIN JET HOLDER

57031522000

$6.55

33

WASHER 3,3 X 5,8 X 0,5

57031572000

$2.05

34

SPRING AIR ADJUST.SCREW

57031515000

$1.49

35

MIXTURE REGULAT.SCREW M7X0,75

57031517000

$4.06

37

WASHER 5,1 X 8 X 0,8

57031573000

$2.05

38

SPRING

52031116000

$4.11

39

ADJUSTMENT SCREW M5

57031519000

$7.00

40

FUEL FILTER

15131112000

$5.23

41

HOSE CONNECTOR

57031513000

$5.68

43

HH SCREW DIN0933-M 6X16

0933060163

$1.49

46

STUD 2 X 47

57031508000

$2.12

47

FLOAT CHAMBER WITH RUN OVER T.

57031511100

Unavailable

49

PLUG M12X1

57031514000

$26.83

50

* GASKET SET PHBE 36 HD

57531199000

Unavailable

60

VENT HOSE 3X5X270

50131137000

Unavailable

61

PVC-HOSE 3X5MM

52031137001

Unavailable

62

CABLE CLAMP BLACK

83013096000

$1.49
