MASK, FENDERS

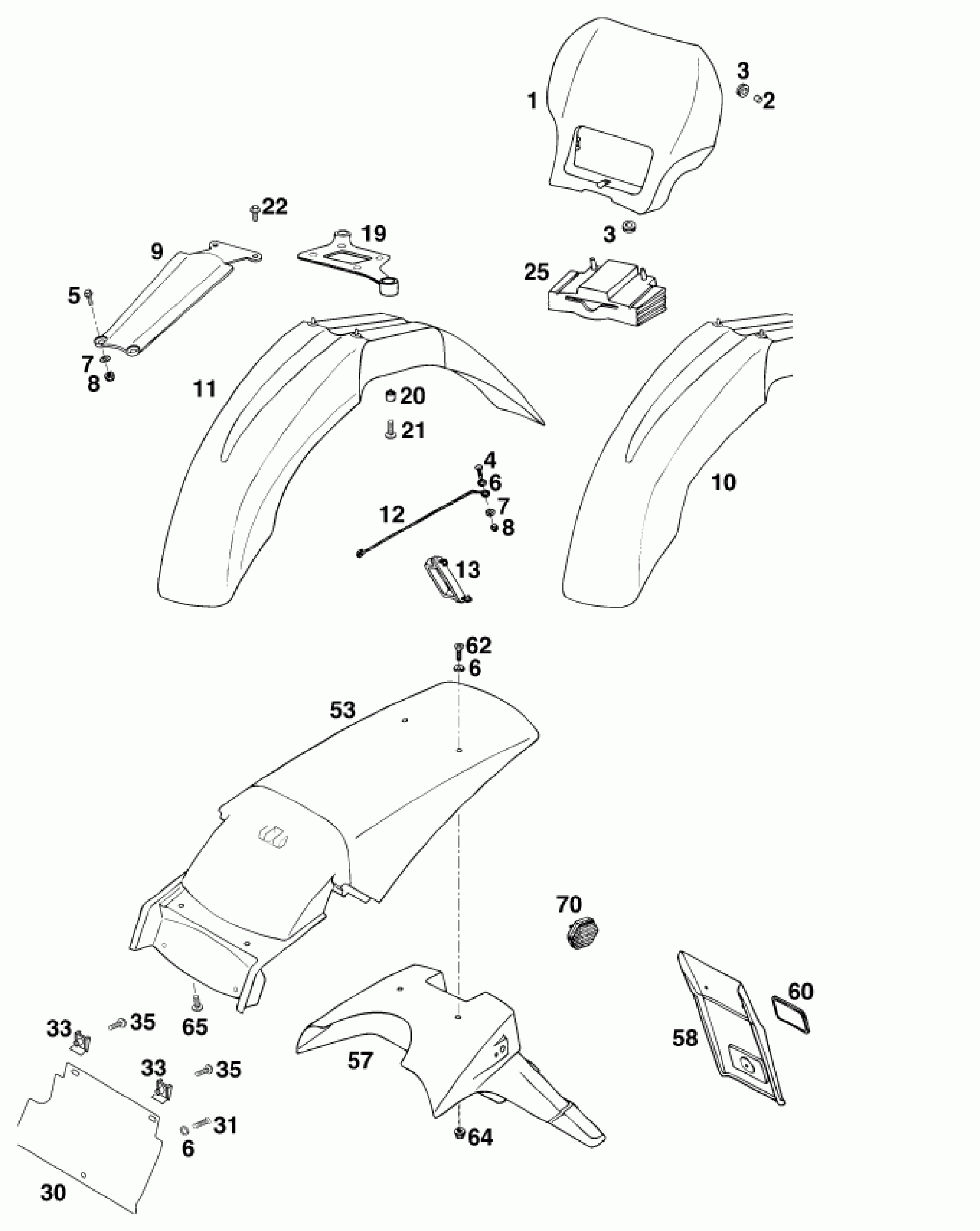

KTM 620 EGS-E 37KW 20LT ROT <1997 MASK, FENDERS Diagram
#
Description
Price
4
OVAL HEAD SCREW DIN0966-M 5X16
0966050163
$1.49
5
HH COLLAR SCREW M 5X16 WS=8
0015050163
$2.05
6
WASHER 6MM
40006006000
$1.49
7
washer DIN 9021 A - 5.3
0021050003
$1.49
8
Self locking nut DIN 985 M5
0985050003
$2.05
9
FENDER BRACE RED '95
50208009200
Unavailable
11
FRONT FENDER WHITE '96
50208410100
Unavailable
12
*SPEEDO.CABLE REFU. L=260MM'91
54501092100
Unavailable
13
CABLE GUIDE CPL.
54601093000
$8.93
19
CABLE GUIDE WP/PAIOLI '93
54608019100
$10.09
20
SPACER BUSHING 7X10X7,5
50208020000
$4.11
21
HH COLLAR SCREW M 6X20 WS=8
0014060203
$2.05
22
HH COLLAR SCREW M 6X15 WS=8
0014060153
$3.08
30
FENDER EXTENSION LC4-E '97
58308013250
$13.01
31
SPECIAL SCREW Z 5,5X16
0016055163
$1.49
33
clip nut M6
54603048100
$4.11
35
HH COLLAR SCREW M 6X13 WS=8
0014060133
$3.08
53
FENDER REAR WHITE '96
58308013200
$35.64
57
NUMBER PLATE CARRIER EGS '93
58308013051
$45.04
58
EXTENSION FOR NUMBER PLATE
49008216000
Unavailable
60
51012080000
Unavailable
62
FLAT H.SCREW DIN7991-M6X20
0991060203
$2.05
64
SELF LOCKING NUT M6
56509064000
Unavailable
65
HH COLLAR SCREW M 6X13 WS=8
0014060133
$3.08
70
REFLECTOR YELLOW CPL.
16512080000
Unavailable
